8 Installation of Blower Assembly
Remove the Blower Cover
Remove the Blower Cover from the Main Blower
Housing by removing the (16) silver hex head screws
from the Blower Cover. Retain the screws.
Remove the Wire box from the Main Blower Housing
by removing the 3 hex head screws. Retain the
screws.
Mount Main Housing
The housing is designed to mount to joist or studs
on 16” centers. When mounting the Main blower
Housing, the (4) lag bolts must be attached to joists,
studs or other structural members.
DO NOT install the unit so that the unit is supported
by the Blower Cover. Damage to the Blower may
occur.
DO NOT attach the Main Blower Housing directly
to wall board, ceiling panels, or other non-structural
materials. Refer to the section drawings on the
following pages to determine the proper mounting
orientation for the Main Blower Housing.

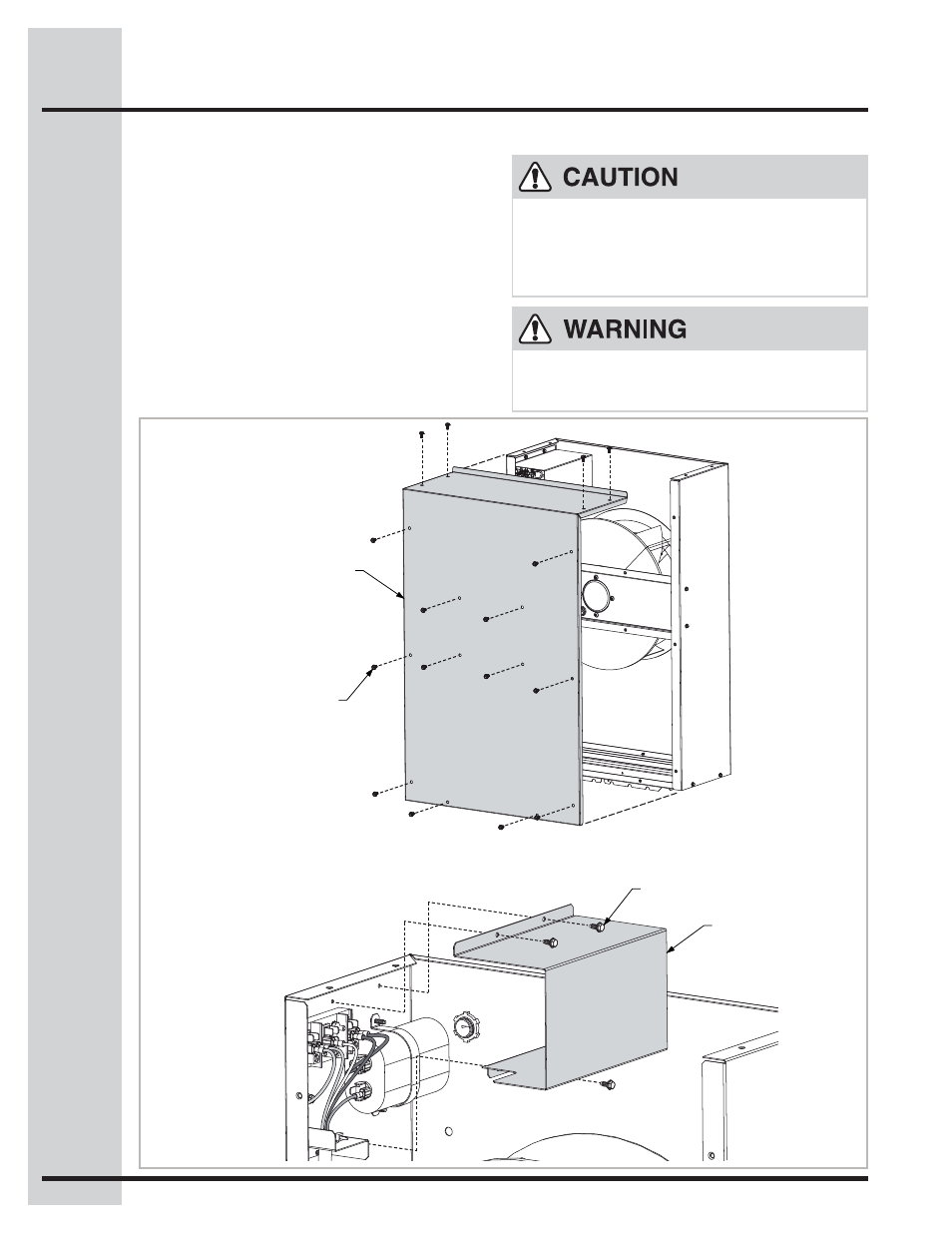

Wire Box
(3) Hex Head Screws
Blower
Cover
(16) Silver
Hex Head Screws
