14 Electrical Connections
Make the required electrical connections according
to the wiring diagram.

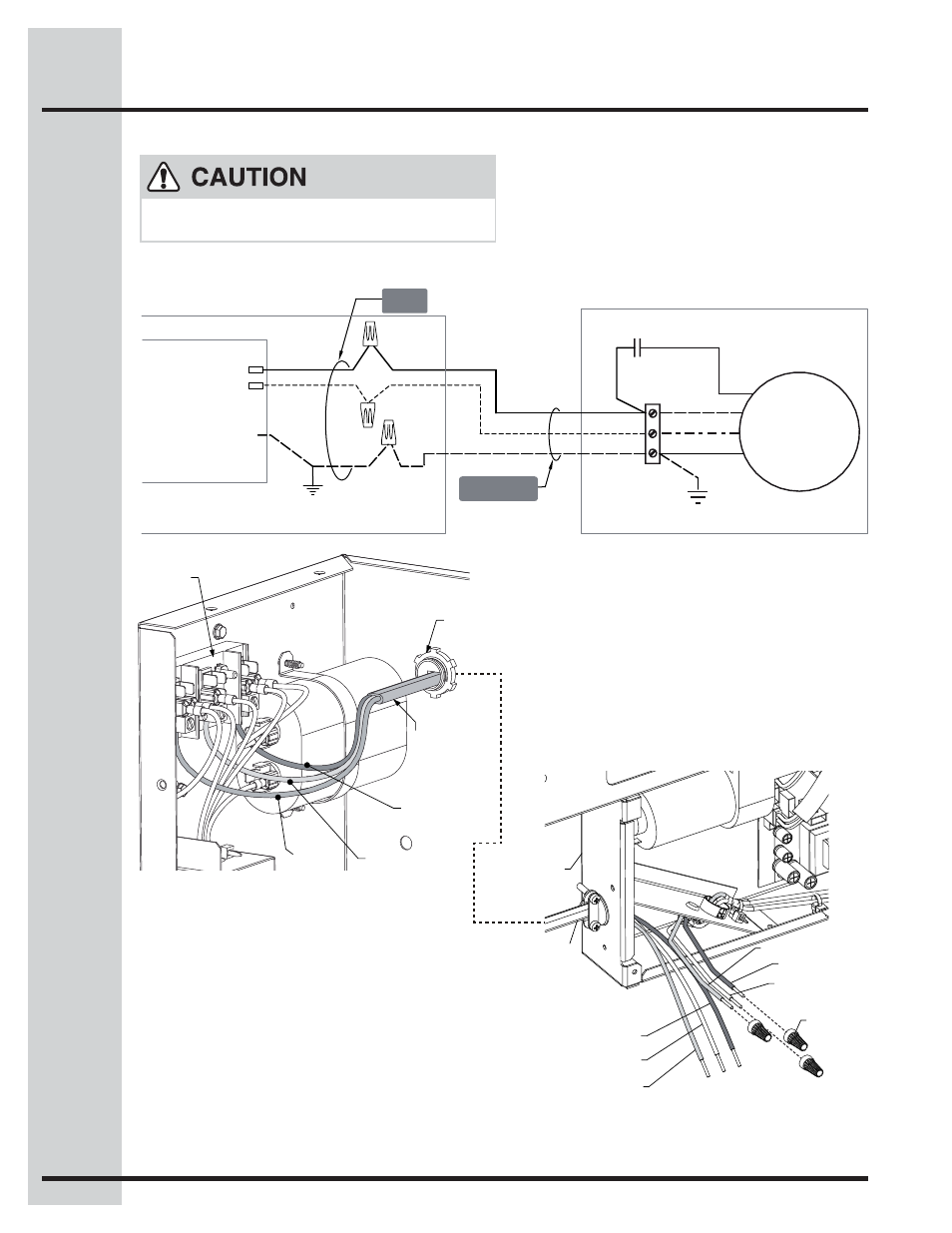

Wiring Connection in Remote Blower
Remote Blower Connection to Vent Control Box
Remote Blower Electrical Connection
Loosen the 3 terminal block screws. Insert the leads
from the Romex cable into the terminal block and
tighten the screws securing the leads in the terminal
block.
Re-attach the Wire Box using 3 screws.
Before making any electrical connections, verify
that the blower wheel spins freely.
Ground
Neutral
Line
Ground (Green)
Line (Black)
Neutral (White)
Control Box
Wire
Nuts (3)
Blower Motor
Wiring (Romex
or conduit)
Motor
CONTROL BOX
DOWNDRAFT
FIELD WIRING
PIGTAIL
Capacitor
BLK
120 VAC
BLK
BLU
GRN
BRN
BLOWER HOUSING
GRN
WHT
BLK
P8
P11
CONTROL BOARD
GND
GND
CONTROL
HOUSING
Terminal
Block
Ground
(Green/Bare)
Neutral
(White)
Line
(Black)
Romex Cable or
Wiring in
Metal Conduit
Romex
Clamp
