6 List of Materials
List of Materials

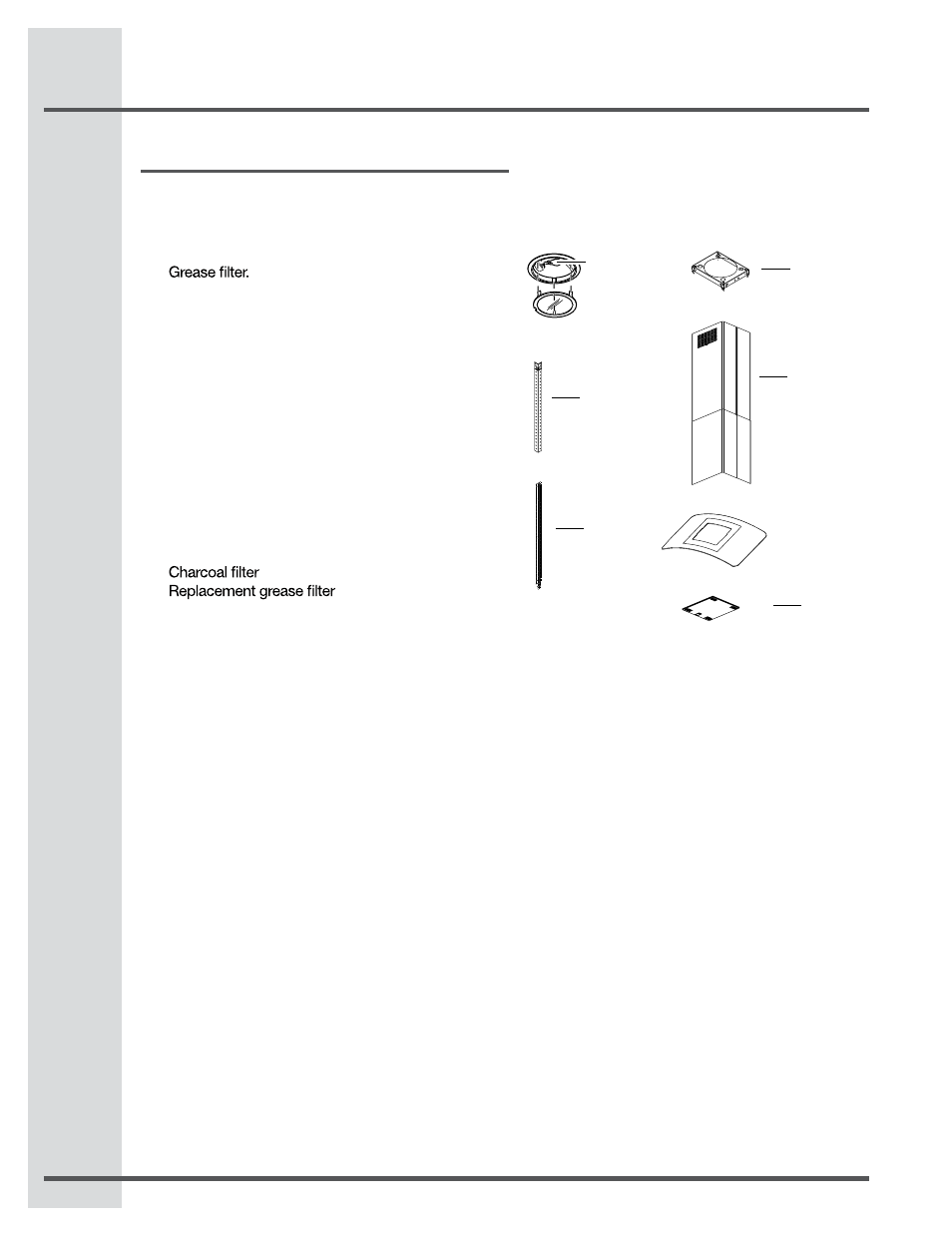

Parts included in your hood
Hood structure assembly with blower, transition.
Lamps already installed.
Duct cover
Bottom.
Top.
Hardware bag with:
Plastic Gasket
Template
Top duct cover wall support bracket (1 piece)
Use, care and installation guide
Wood screws (6 pieces - 3/16” x 1” 3/4)
Hood attachment anchors screws (6 pieces
3/8” x 13/8”)
Assembly screws (8 pieces)
Optional accessories
Recirculation KIT
Tools/Materials required
Duct tape
Wire nuts
Tape to mount template
8” rounded metal duct (length to suit installation)
Gloves to protect against sharp edges
Safety glasses
Hammer
Electric drill with 5/16” bit
Pliers
Measuring tape
Saw, jig saw
Level
Knife
Wire cutter
Phillips (Pozidrive) # 2 screwdriver
Torx # 2 screwdriver
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1/2” electrical connector (junction box) •
•
•
•
•
•
•
•
•
•
•
•
•
•
Lamp
Vertical
supports
Duct cover
support
Upper
Duct cover
supports
Duct
Covers
Grease
Filter
