9 Installation
Screw
Flipper
Mullion
Hinge
Flipper
Mullion

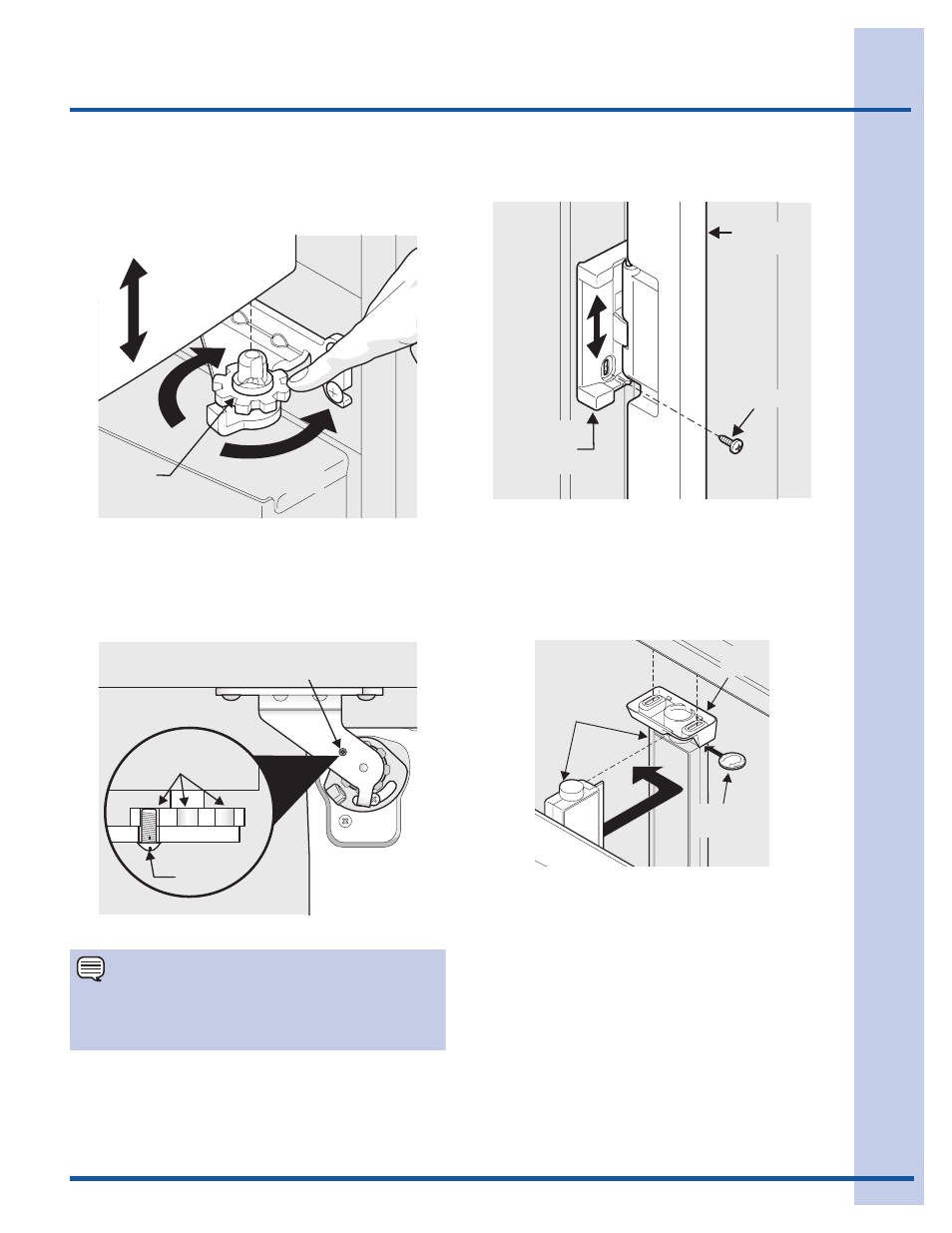

Adjusting Flipper Mullion Screw
To adjust the flipper mullion:
1 Loosen the screw located on the flipper mullion
hinge.
2 Adjust flipper mullion height. For proper
connection with the flipper mullion guide, there
should be a separation about the thickness of a
coin (0.060 inches, or 1.5 mm) between the guide
and flipper mullion.
3 Re-tighten screw.
4 Lift the door while adjusting the washer. To
raise the door, rotate washer clockwise (when
viewed from the bottom). To lower door, rotate
washer counter-clockwise (when viewed from the
bottom).
5 Re-tighten the screw (where applicable) , ensuring
it is between the spokes of the washer. Screw
will not be tight, just insert until it is flush with the
hinge.
Flipper
Mullion
Mullion
Guide
Thickness
of a Coin
Adjusting Flipper Mullion Height
Screw (where applicable)
Raising/Lowering Door
NOTE
If after adjusting doors higher the door makes a
popping/clicking sound, remove screw and replace
with the longer one supplied in the handle package.
Re-tighten Screw
Hinge
Washer Spokes
Screw
Lower
Door
Hinge
Washer
Raise
Door
Door
