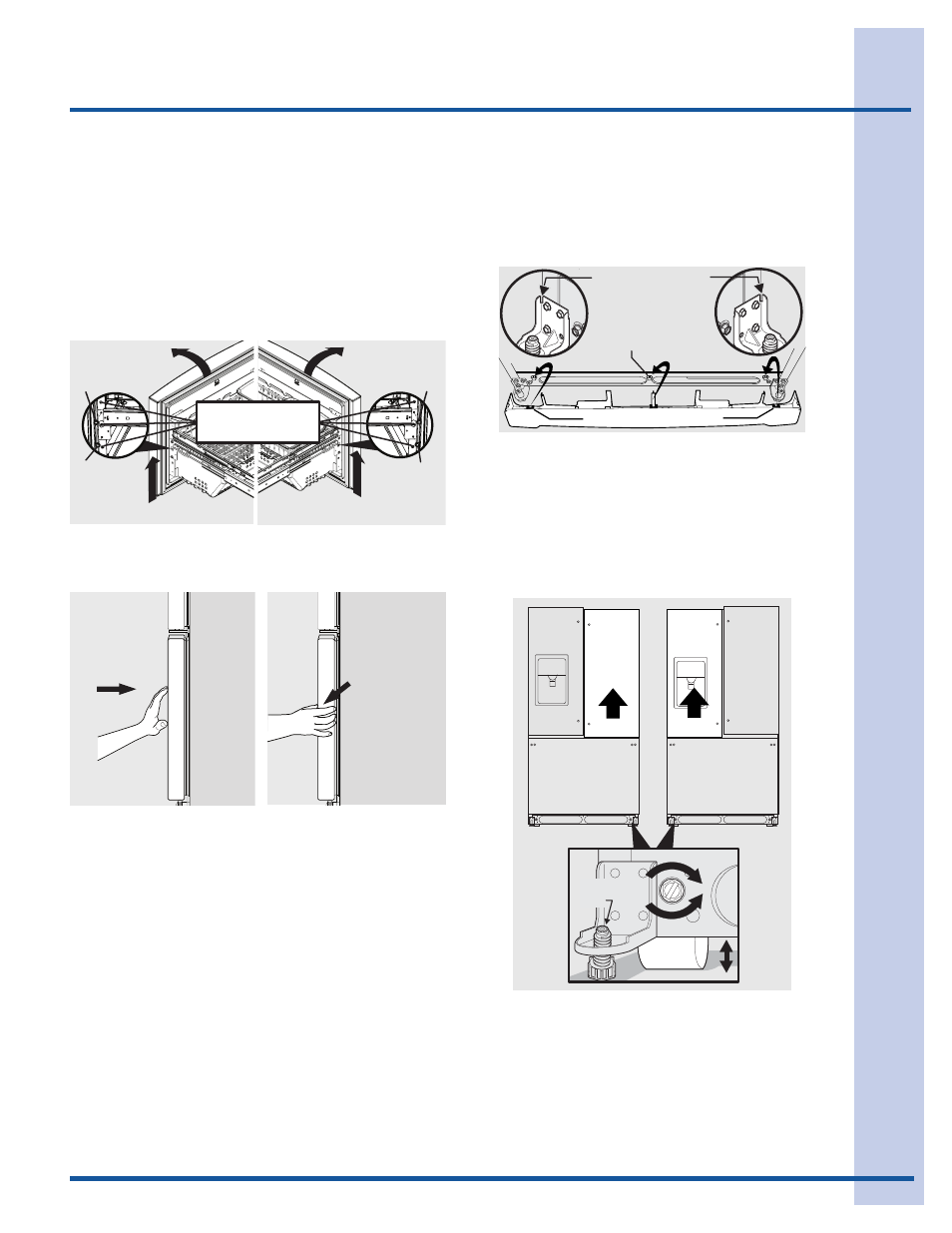

7 Installation
Toe Grille Must
Fit in Slot on
Anti-tip Bracket
Screw/Washer
Assembly
(3) Retaining Clips
Freezer Drawer Alignment
(if necessary)
To level the cabinet using the front rollers:
1 Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
2 You can raise or lower each door. Use a ⅜ inch
socket wrench to turn the adjustment screws
(1 per side).
1 Check gasket seal around top, bottom, and sides
of freezer drawer.
2 If gasket is not sealed, open drawer and slightly
loosen four drawer screws (two on each side) to
allow drawer to rotate.
3 Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
4 Tighten four drawer screws.
5 Recheck gasket seal.
Push
Against
Freezer
Drawer
Grab
Drawer
At Center
From
Both
Sides
Then
Pull Drawer
Out
A B
Cabinet Leveling & Refrigerator
Door Alignment
(if necessary)
Guidelines for final positioning of your refrigerator:
• All four corners of the cabinet must rest firmly on
the floor.
• The sides should tilt ¼ inch (6 mm) from front
to back (to ensure that doors close and seal
properly).
• Doors should align with each other and be level.
Most of these conditions can be met by raising or
lowering the adjustable front rollers.
Raise
Lower
Anti-tip
Leg
Door Door
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
3 Ensure both doors are bind-free with their seals
touching the cabinet on all four sides and that
cabinet is stable.
4 After unit is leveled, lower anti-tip leg until it
contacts the floor.
5 Install the toe grille by fitting into place.
Remove Hex
Head Drawer
Screw
Remove
Hex Head
Drawer
Screw
Do Not Remove
Other Screws
Remove Hex
Head Drawer
Screw
Remove
Hex Head
Drawer
Screw
