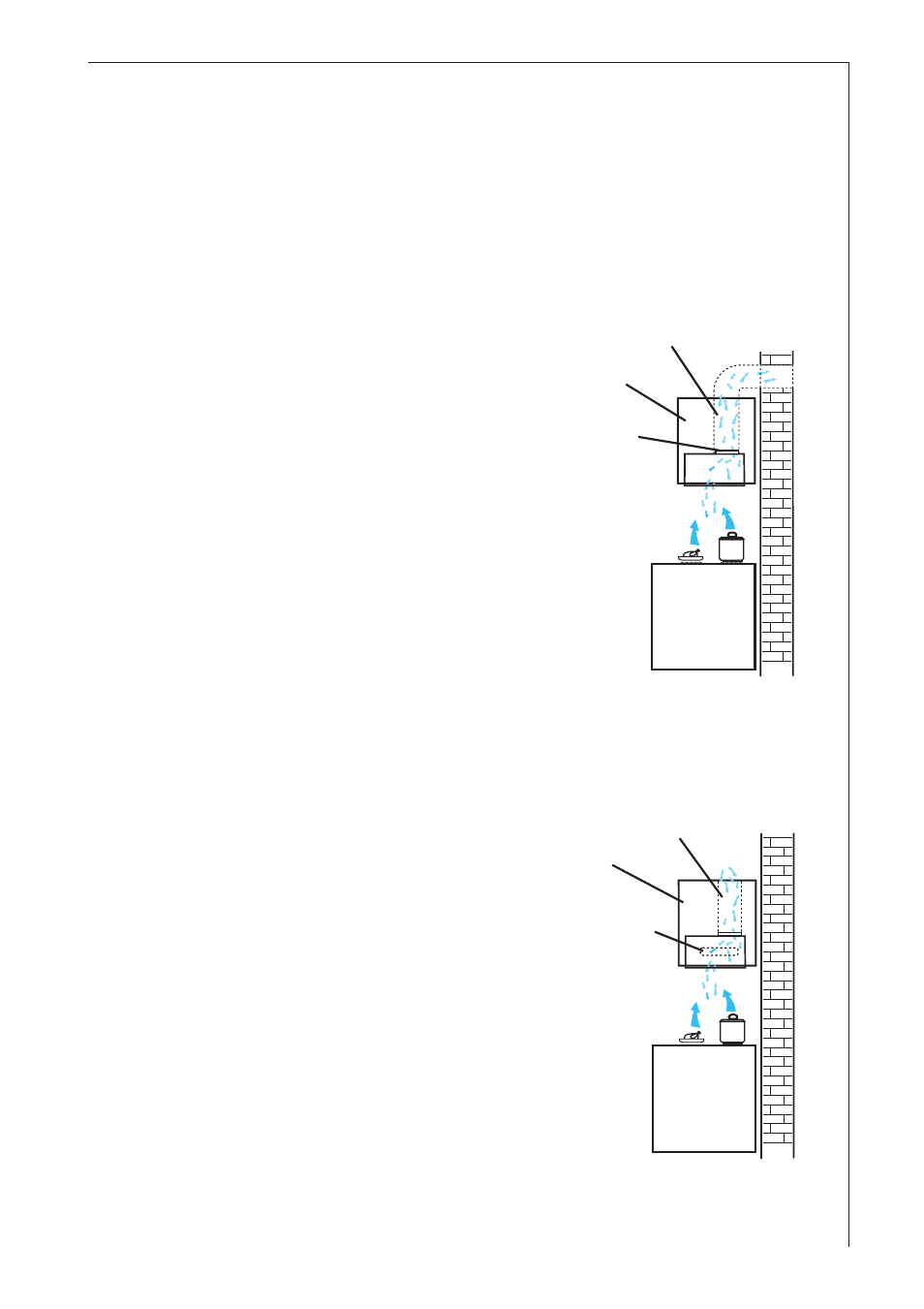

Fig. 1
Coupling
ring
Hose*
* The hose is not supplied and
must be purchased separately.
Cabinet
Fig. 2
Charcoal
filters
Hose*
Cabinet
* The hose is not supplied and
must be purchased separately.
Description of the Appliance
• The cooker hood is designed to extract unpleasant odours
from the kitchen, it will not extract steam.
• The hood is supplied as an extractor unit and can also be used with
a recirculation mode by fitting a charcoal filter.
• In some models the charcoal filter is supplied. The hood, therefore,
can be used immediately in the
recirculation mode. We advise
removing the charcoal filter to use
the hood in the extraction mode.
Extraction
• In this version fumes are extracted
to the outside via a hose connected
to the coupling ring. Fig. 1.
• In order to obtain the best perfor-
mance the hose should have a
diameter equal to the outlet hole.
• Should there already be a pipe of
diameter 125 or 120 mm that ducts
to the outside through the walls, it is
possible to use the 150/125-120
mm reduction flange provided.
In this case the hood will be slightly
noisier.
Recirculation Mode
• The air is filtered through a
charcoal filter and returned to the
kitchen. Fig. 2.
• You will need an original charcoal
filter for the filtering function. (See
Special Accessories).
