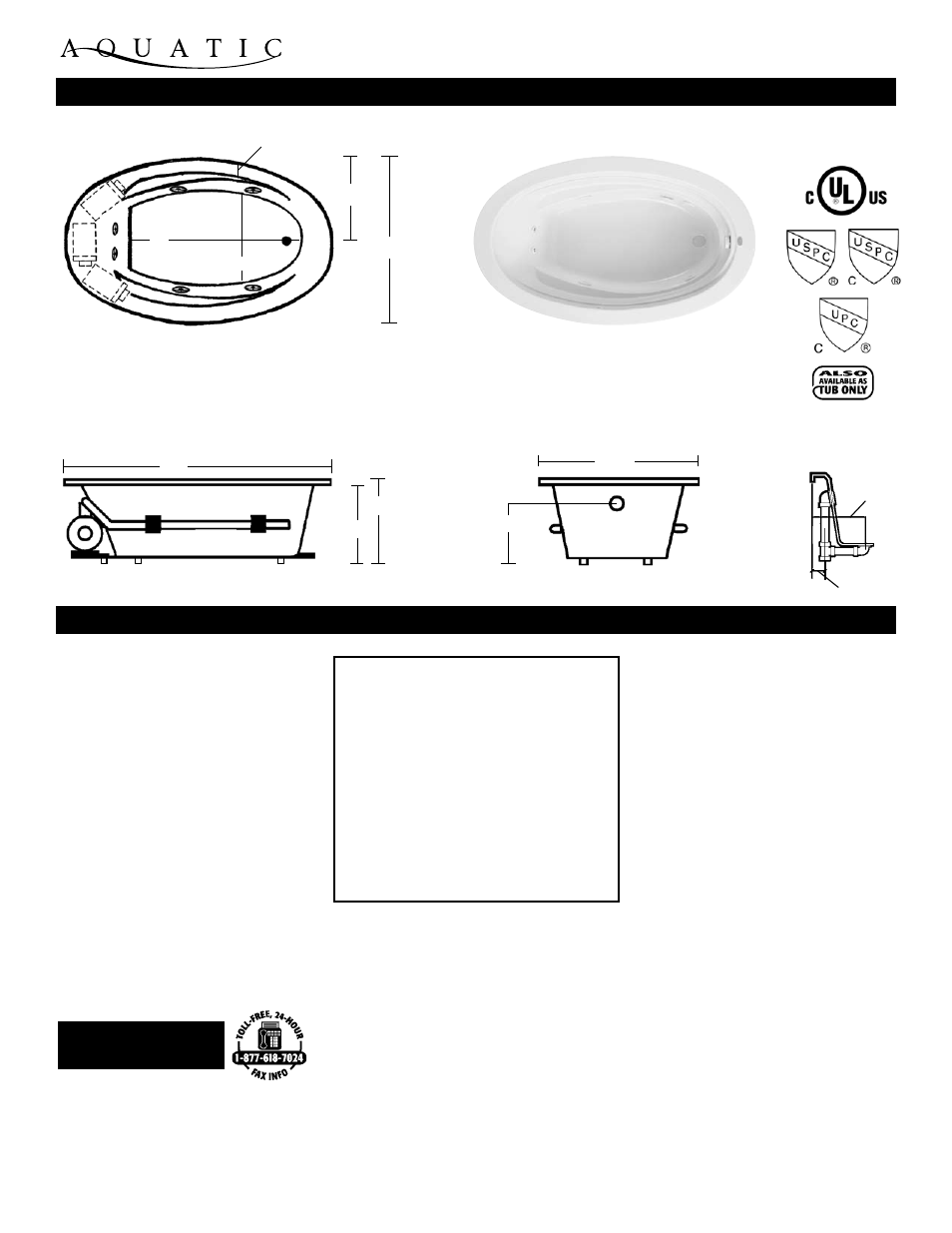

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

February 2008

Rough-In Plumbing
Measurements

SymPhONy 16

SymPhONy SErIES

Model # AIPl6042SY / AIPl6042SYTo

GeneRal SPecIfIcatIonS:

Tub Size

60” x 41 1/2” x 23 3/4”

152 cm x 105 cm x 60 cm

Bathing Well

36” long

22 1/2” wide

22” interior depth

Maximum Water Depth 16 1/2”

Shipping Weight

163 lbs. / 74 kg

Tub Weight Filled

587 lbs. / 266 kg

Tub Only Weight

112 lbs. / 51 kg

Gallons to Overflow

57 gal. / 216 L

Gallons to Operate

44 gal. / 167 L

electRIcal SPecIfIcatIonS:

Pump

.80 HP; 5.5 AMP; 110V

Requirement

15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

Comfort Pillow--Oval or Rectangle

1.5 kW Inline Maintenance Heater (Pump Options 1, 2, 3)

Lift & Turn Waste and Overflow

- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel or Oil Rubbed Bronze

Cable Drive Waste and Overflow

- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)

• Optional Pump Location

All acrylic colors featured by Aquatic match the industry’s
leading fixture manufacturers.

oPtIonal equIPMent:

6 Hydrotherapy Jets including:
- 2 Spinning Back Jets
- 4 Directional Jets

aquatic quality features:
- .80 HP Run-Dry Pump
- Bath-Side On/Off Air Button
-

”Quiet Pad”

Anti-Vibration Pump Mount for Quiet Pump Operation

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- 2 Arm Rests
- Color Matched Trim and Jets (Select Colors)
- Durable, easy to Clean, Lucite

®

Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

ul and IaPMo listed, factory tested

limited 10 Year Warranty

StandaRd equIPMent:

fax-on-demand

document # 1284

60”

22”

23 3/4”

41 1/2”

20 3/4”

2”

9 1/2”

20”

41 1/2”

36”

22 1/2”

Deck Width 4”

3

2

1
