Page 49: Assembl y
ASSEMBLY
60C 01/10
Assembly Section 3-21
© 2010 Alamo Group Inc.
ASSEMBL
Y

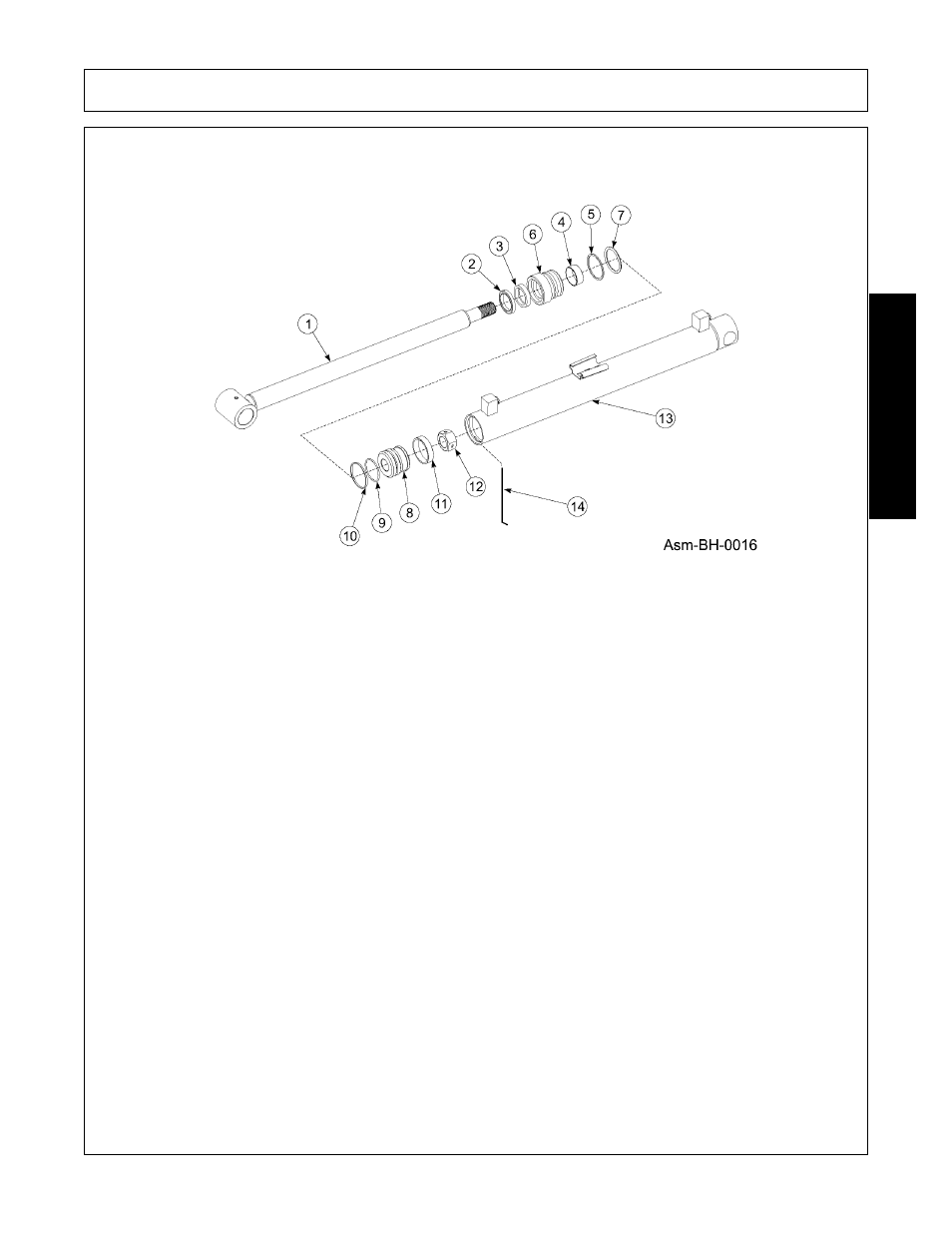

Cylinder Assembly - Bucket
Cylinder Assembly - Bucket Parts List
ITEM
PART NO.
QTY.
DESCRIPTION
1.
54511
1
ROD, WELDMENT
2.
*
1
SEAL, DUST
3.
*
1
SEAL, U-CUP
4.
*
1
SEAL, PISTON WIPER
5.
*
1
RING, BACKUP
6.
41488+
1
HEAD, CYLINDER
7.
*
1
O-RING
8.
35519
1
PISTON
9.
*
1
SEAL, O-RING
10.
*
1
SEAL, PISTON
11.
*
1
SEAL, PISTON WIPER
12.
38998-3
1
NUT, LOCK 1-14
13.
54513
1
CYLINDER TUBE, WELDMENT
14.
*
1
LOCKWIRE
15.
41555+
1
REPAIR KIT, INCLUDES (*) ITEMS
