Page 5

- 5 -
Hardware Overview

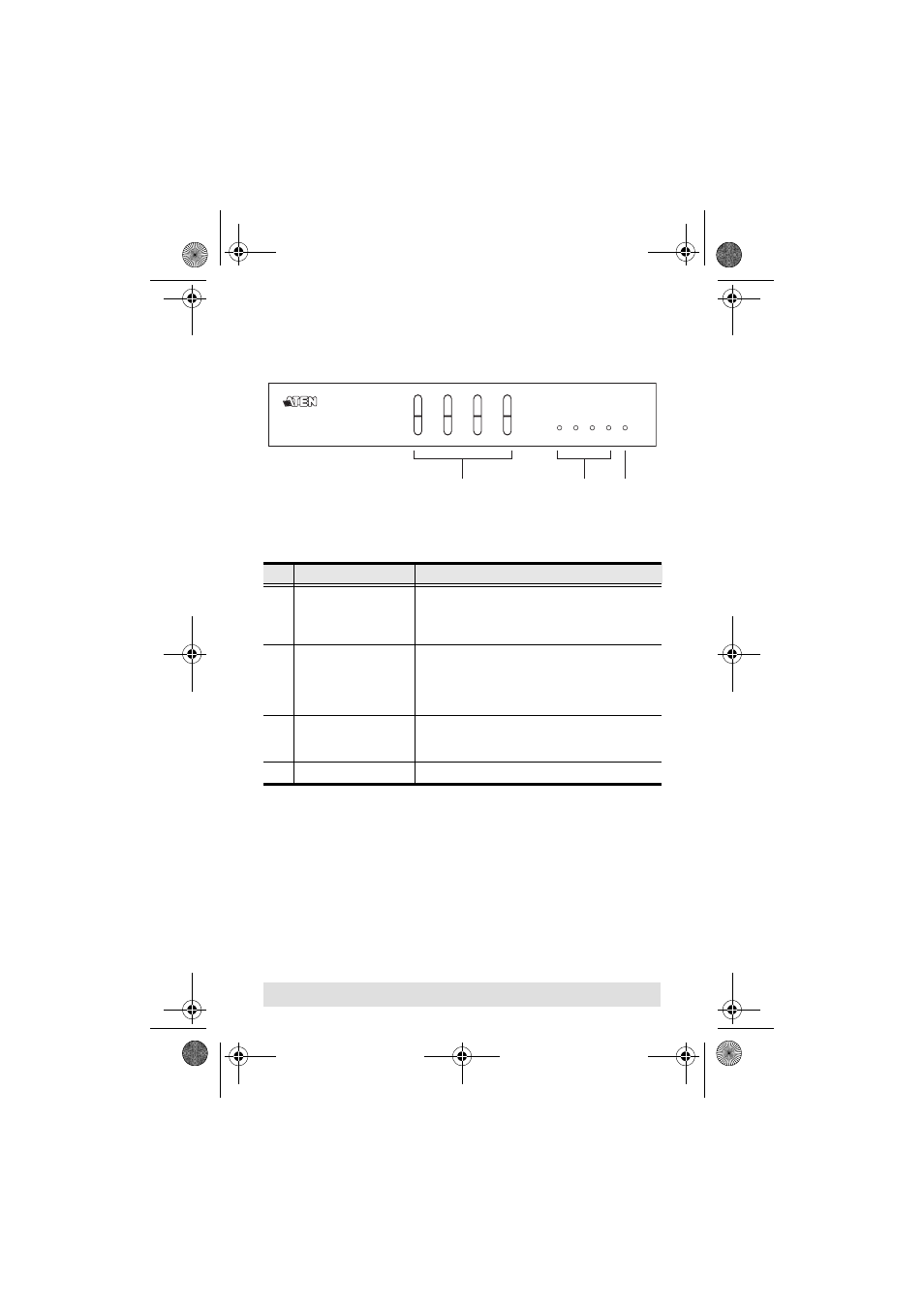

VS-0404 Front View
No.
Description
Function
1
Input Select Switches
Each switch corresponds to an output port.
Pressing the switch cycles through the input
sources to select which input source’s signal will
be sent to the switch’s corresponding output port.
2
Input Port LEDs
The input source LEDs are built into the Selection
Switches. Each switch has four numbered LEDs
that correspond to the four input source ports. A
lit LED indicates which input source is the
currently selected one.
3
Source LEDs
Each of these LEDs corresponds to an input port.
A lit LED indicates data transmission from the
source connected to its corresponding input port.
4
Power LED
Lights to indicate that the unit is receiving power.
4
3
1 & 2
vs0404.fm Page 5 Friday, March 3, 2006 3:13 PM
