Operation
The VS-0404 operates according to the following parameters:
For example, if you want the data from Input Port 2, to be output
to Output Port 4, press the switch that corresponds to Output Port
4 until the switch’s LED 2 lights to indicate that it is receiving data
from Input Port 2.
Š

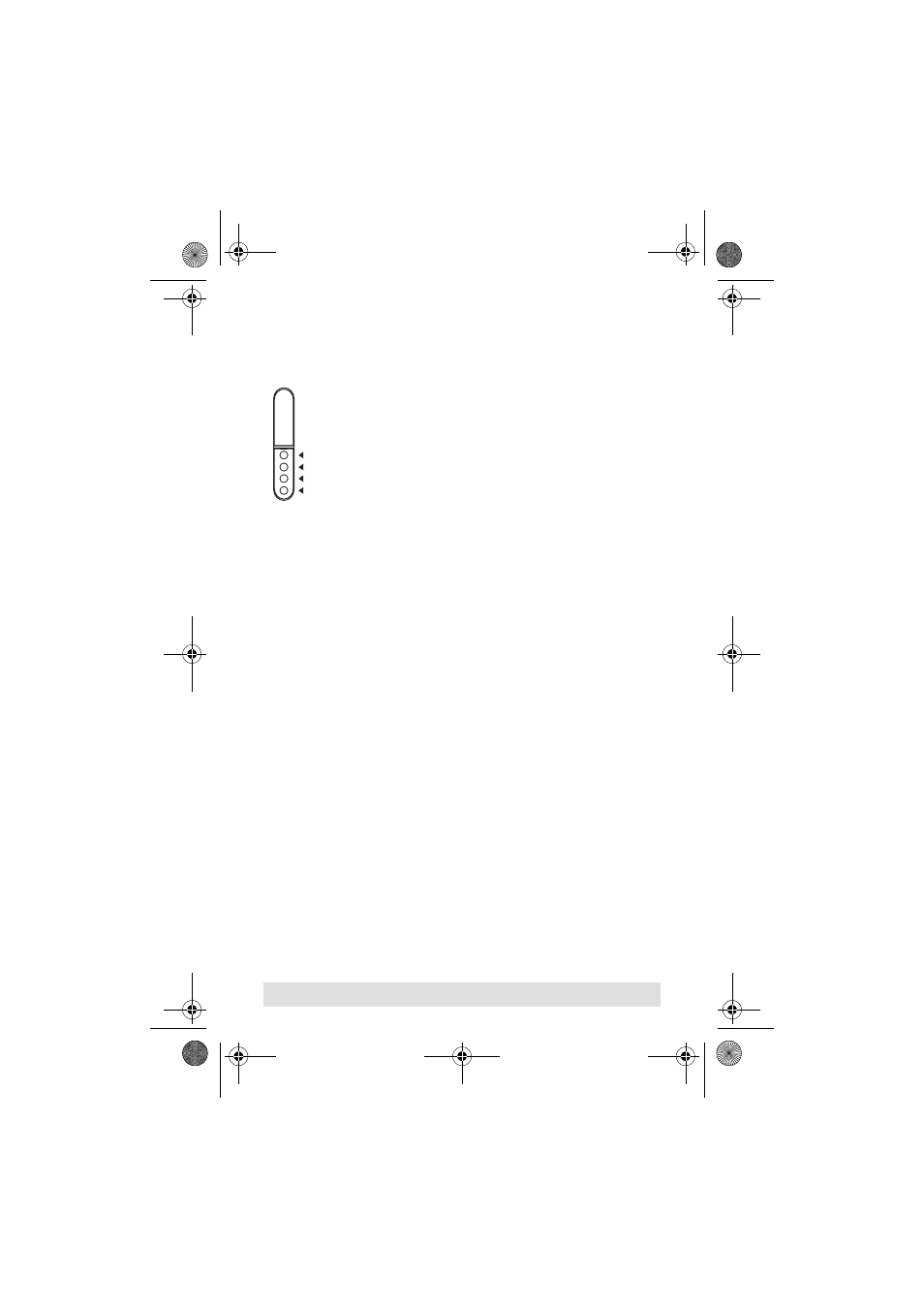

Each front panel switch corresponds to an
output port.
Š
Each switch selects the input source that will
display on the device connected to its
corresponding output port.
Š
Pressing a switch takes you from the currently
selected input port to the next one (1 to 2; 2 to 3;
3 to 4; 4 to 1). Press a switch as many times as
necessary to select the desired input port.
Š
The built-in LEDs light to indicate which input
port is the selected one.
4
3
2
1
