Avery ALS 330/430 - Manual (Page 78)

Operators Manual
ALS 330/430
Release 4/06 Page 70 Connections and signals
LED Voltage
Ready LED
Overtemperature 100% on
Short circuit 25% on / 75% off
Both 75% on / 25% off
+ Direction
- Direction
- NC
+ NC
- Clock
Ready Collector
Ready Emitter
48VAC
48VAC
Phase1B
Phase1A
800
400
Resolution

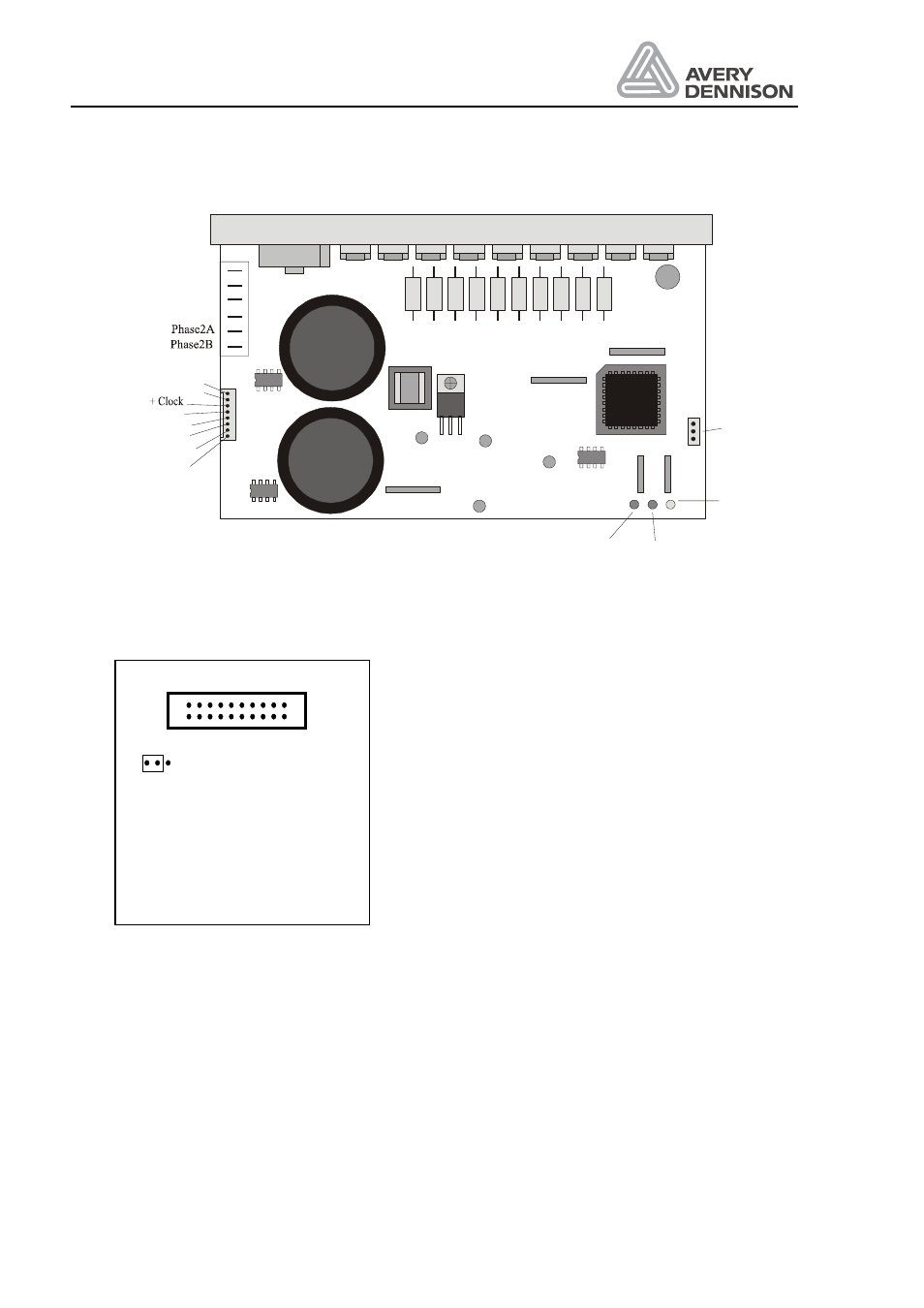

Figure 32 Layout stepper motor driver
JP
Figure 33 Display jumper setting
