4
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
h
Press .
X The saved pattern is retrieved.
X The embroidery screen appears, and you
can embroider the retrieved pattern.
i
Adjust the pattern as desired, and then begin
embroidering.

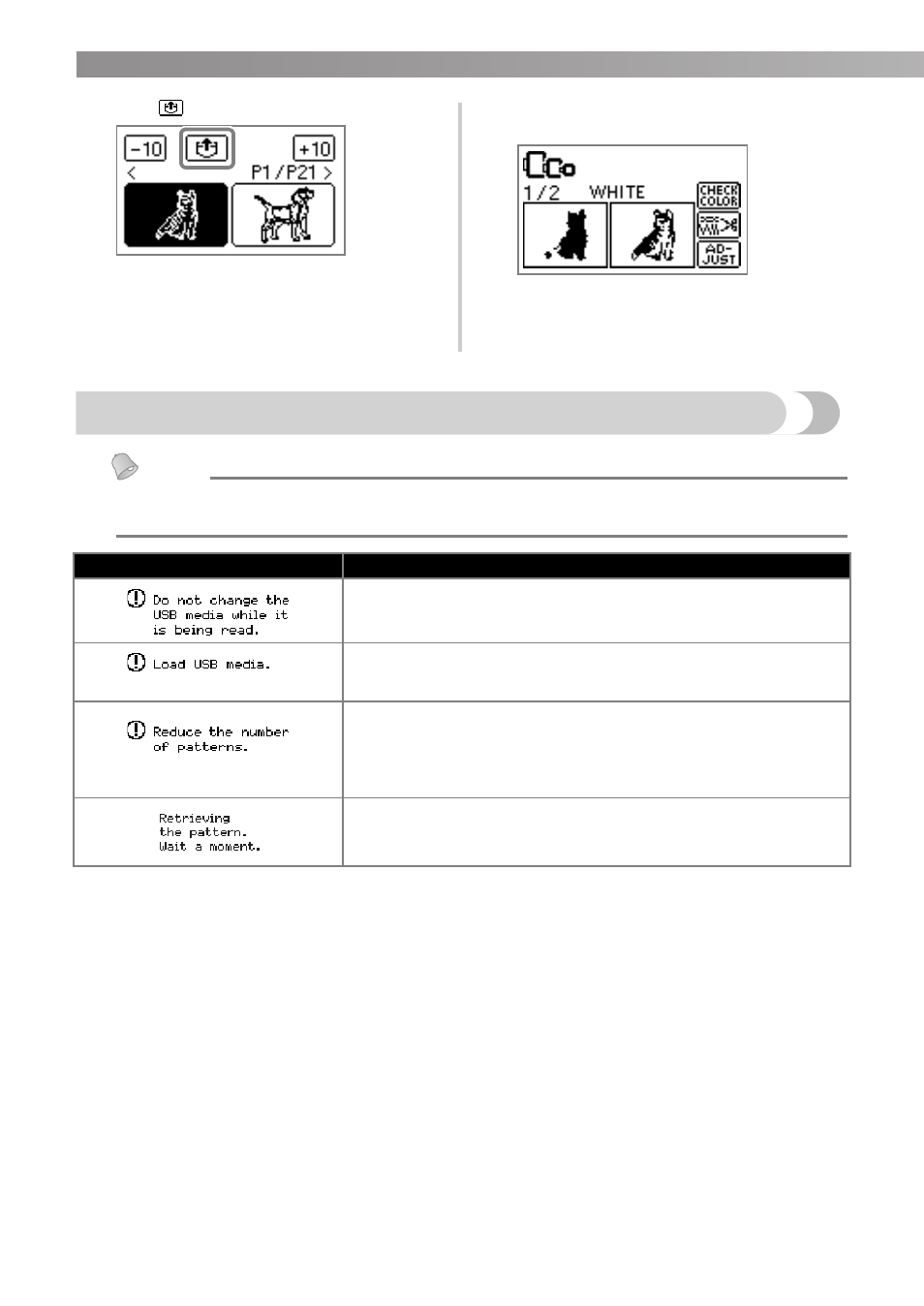

Error messages
Memo
z This manual describes the error messages concerning the USB connection. For details on other error
messages, refer to the Operation Manual.
Error Message Probable Cause
You attempted to select a pattern after the USB media containing the
pattern has been disconnected, then reconnected.
You recalled a pattern while no USB media is connected.
A pattern was being retrieved from a USB flash drive (USB flash mem-
ory) containing more than 200 embroidery patterns.
In addition, this message will appear if embroidery patterns containing
many colors have been saved on the USB media, even if it contains
data for no more than 200 patterns.
Retrieving the pattern
