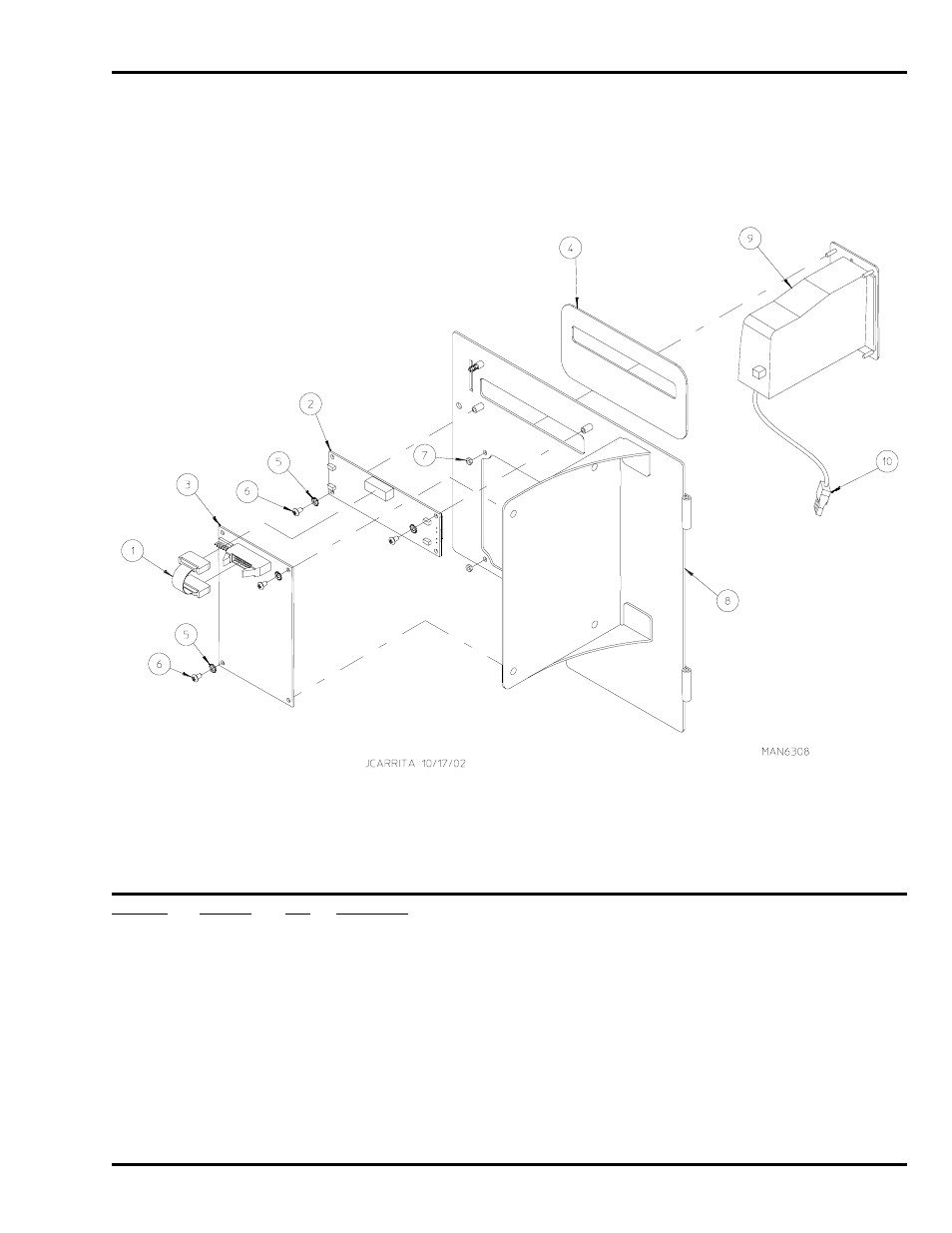

Phase 7 Coin Microprocessor Control Panel Assembly
Illus. No.
Part No.
Qty.
Description
1
137250
1
Phase 7 Coin Ribbon Cable
2
137270
1
16” x 1” Large Character Display
3
883435
1
Phase 7 Coin Board
4
112575
1
Phase 7 Keyboard
5
153010
4
#6 Internal and External Star Washers
6
150005
4
#6-32 x 1/4” Phillips Round Head Machine Screw
7
152102
4
M3 Metric Hex Nut
8
802536
1
Phase 7 Coin Control Panel ONLY
802537
1
Phase 7 Coin Control Panel Assembly
(includes illus. nos. 1 through 8)
9
803612
1
Phase 7 25¢ Coin Acceptor Assembly
10
122633
1
3-Pin Connector
