ADC AD-24 - Manual (Page 19)

450216 - 3 www.amdry.com 19
Illus. No. Part No. Qty. Description
1 141104 2 Small Tube Burner
2 151001 2 #8-32 Pal Nut
3 150108 2 #8-32 x 1/2” Phillips Pan Head Machine Screw
4 140815 2 #37 Orifice (natural gas)
140800 2 #52 Orifice (liquid propane gas)
5 141230 1 1/2” Direct Spark Ignition Manifold (2-port)
6 318714 1 1-Piece Gas Valve Bracket
7 150309 5 #10-16 x 1/2” Hex Head TEK Crimptite Screw
8 128927 1 Gas Valve (natural gas)
880960 1 Gas Valve (liquid propane gas)
9 809307 1 Ignitor-Probe Assembly
10 801048 1 Direct Spark Ignition Module (3 tries)
11 810030 1 Direct Spark Ignition Module Mounting Bracket
12 150300 9 #10-16 x 1/2” Hex Washer TEK Screw
13 152013 2 #6-32 Hex Nut
14 142707 1 1/2” x 1-1/2” Long Black Nipple
15 142506 1 1/2” Street Elbow
16 142600 1 1/2” Black Union
17 142809 1 1/2” x 29-1/8” Pipe
18 882982 1 Direct Spark Ignition Burner Box – Natural Gas
(includes illus. nos. 1 through 3 and 5 through 18)
882983 1 Direct Spark Ignition Burner Box – Liquid Propane Gas
(includes illus. nos. 1 through 3 and 5 through 18)
— 874058 1 AD-24 Liquid Propane Conversion Kit...Not Illustrated

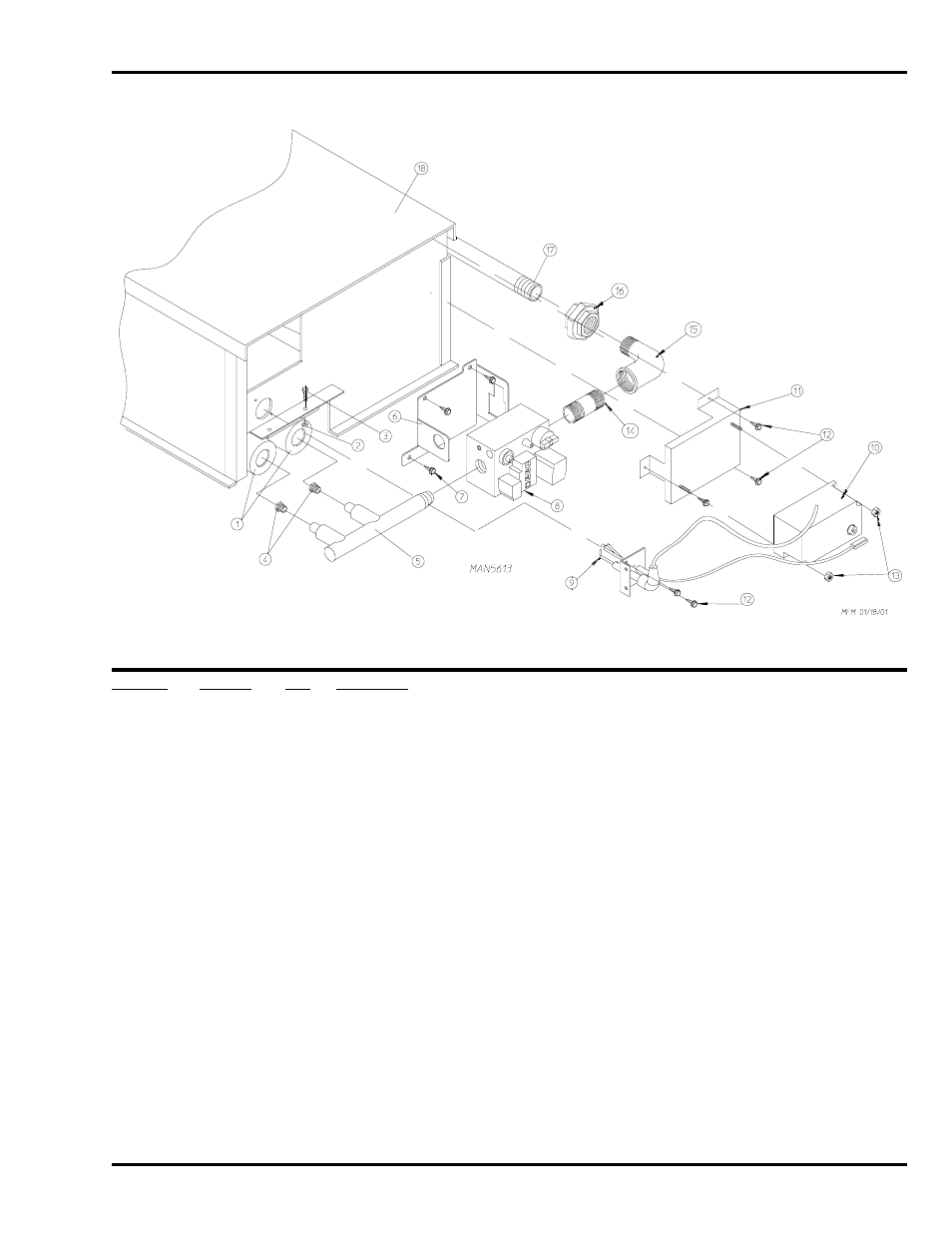

Gas Burner Assembly
