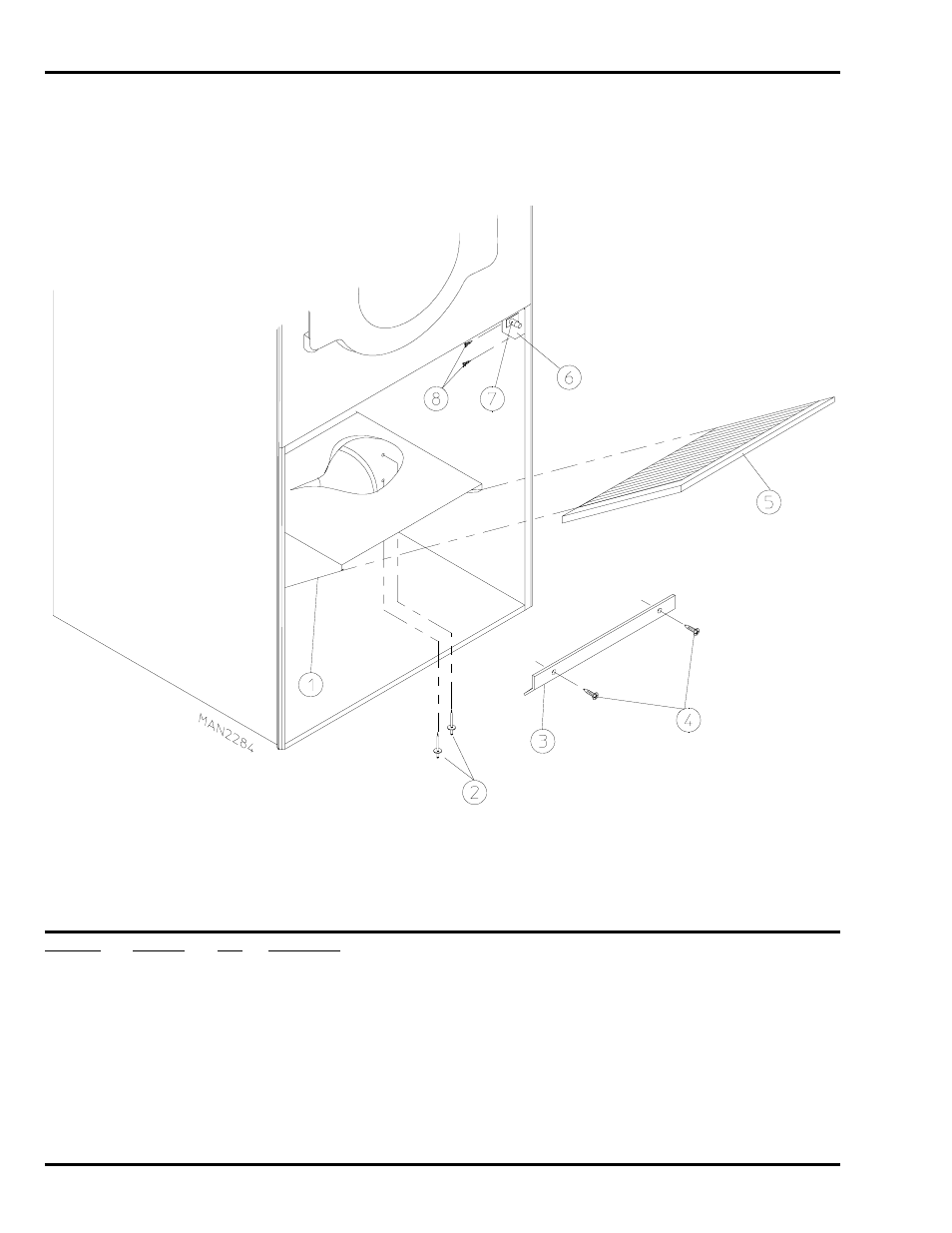

Lint Trap Assembly
Illus. No.
Part No.
Qty.
Description
1
800429
1
Lint Trap Assembly Complete
(includes illus. nos. 1 and 3 through 5)
801036
1
Lint Trap ONLY
2
154200
7
5/32” Pop Rivet
3
304102
1
Lint Screen Holder ONLY
4
150300
3
#10-16 x 1/2” Hex Washer TEK Screw
5
800503
1
Lint Screen ONLY
6
323724
1
Lint Drawer Switch Bracket
7
122116
1
Lint Drawer Switch ONLY
8
150425
2
#12-24 x 3/8” Slotted Pan Head Screw
