82
Outlet hole (extractor-filter version)
• When used as an extractor unit, the hood must be fitted with a
150mm diameter hose.

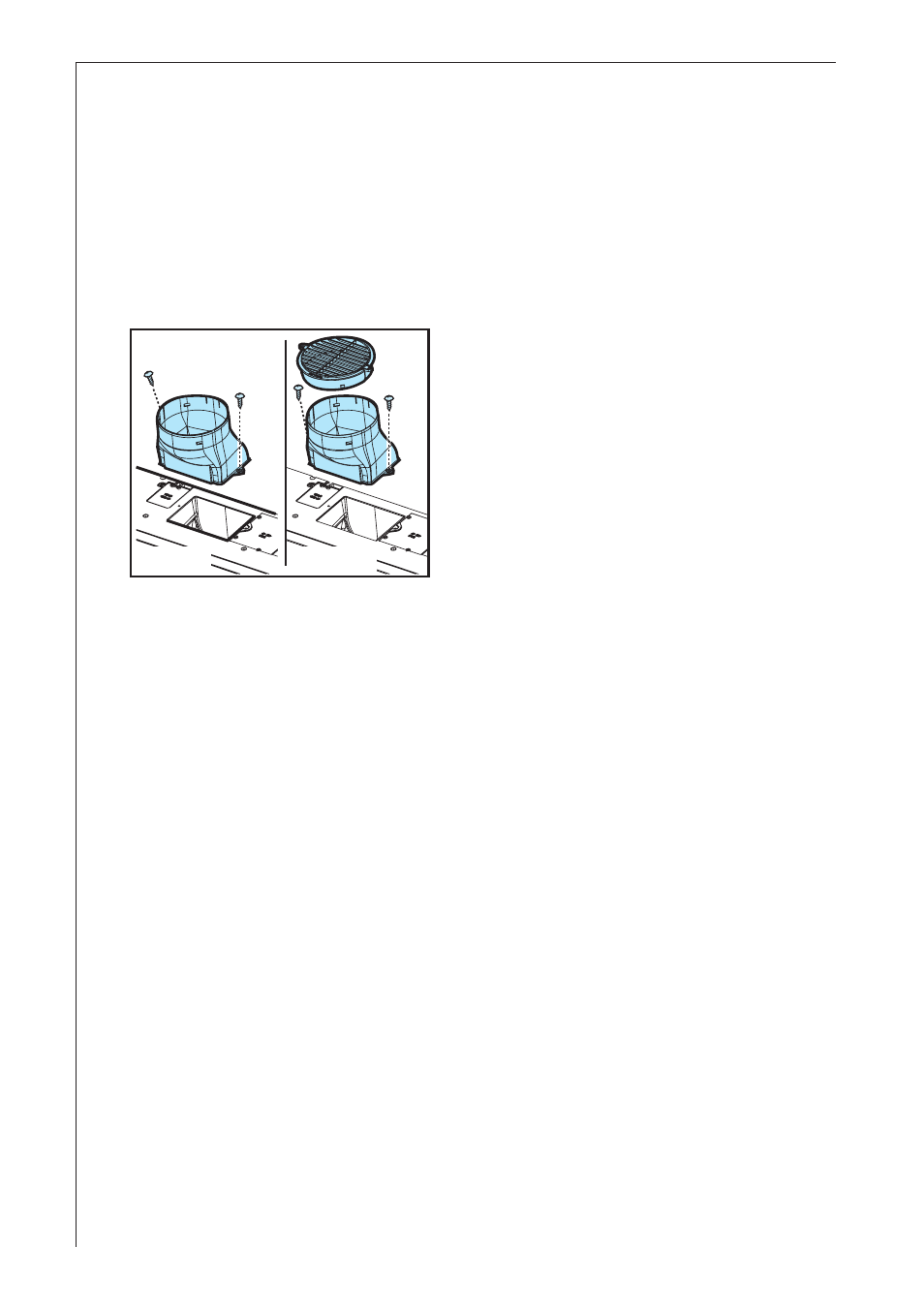

Fix the flange on the hood outlet hole, using 2 screws. Fig. 6a.
Filter version only
• Fix the deflector to the flange. Fig. 6b.
Spice rack
• If a spice rack is to be incorporated in front of the hood, a minimum
distance of 5 mm must be provided between the front edge of the
fume extractor hood and the spice rack wall (this air gap being
necessary for air circulation).
• The upper part of the spice rack rear wall should be detachable
(access for exhaust air hose or adjustment of furniture housing).
Fig. 6a Fig. 6b
