ASSEMBLY
SX15 01/09 Assembly Section 3-3
© 2009 Alamo Group Inc.
ASSEMBL
Y

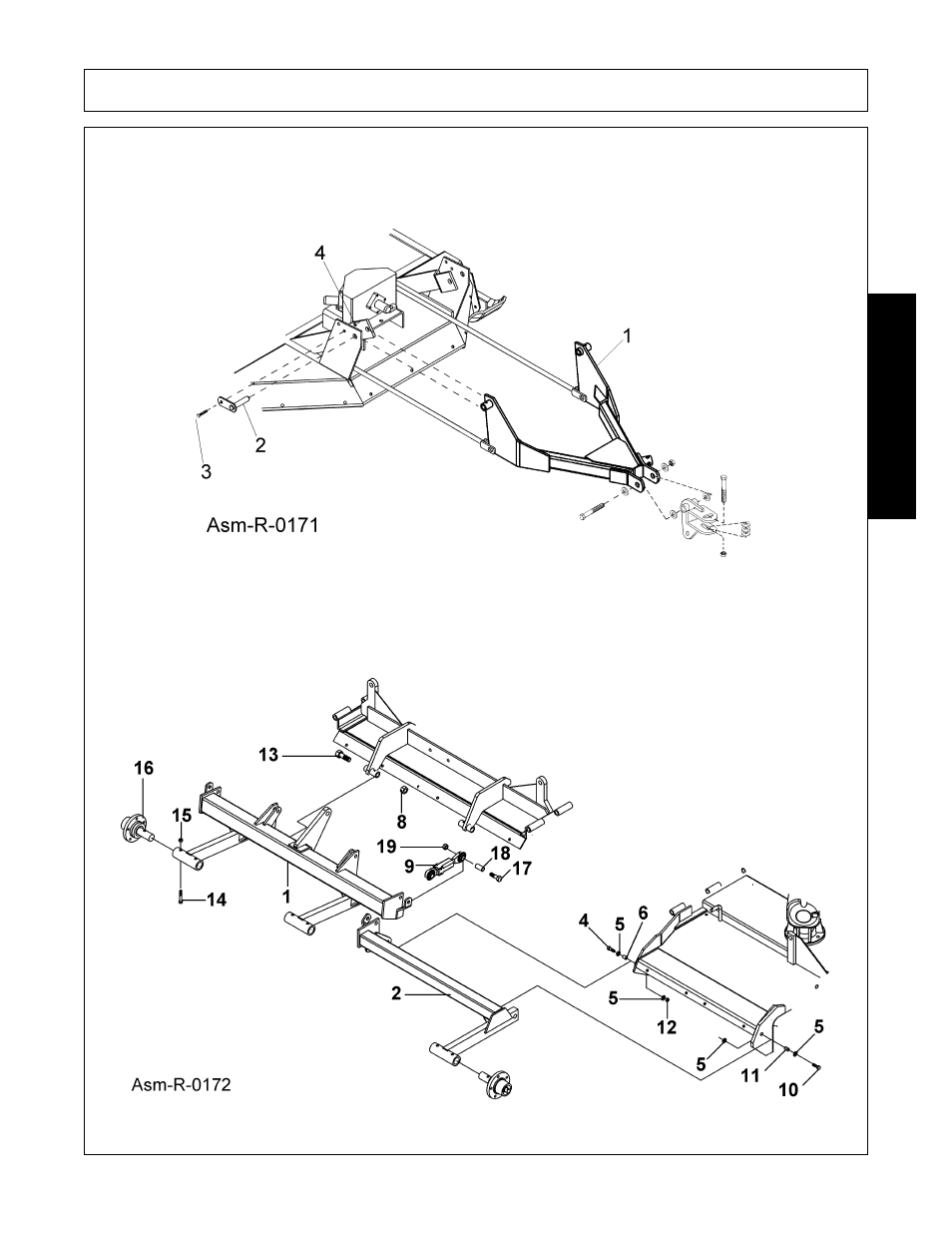

3. Install Tongue (#1) pivot tubes into clevis type openings at front of Center Section. Insert Pivot Pin (#2)
through outside clevis flat, pivot tube, and then inside clevis flat. Rotate head of pin so that the hole on the
head of the pin lines up with the hole on the outside clevis. Insert 1/2 x 1-1/4" bolt (#3) and tighten nut (#4).
FIGURE Mnt-R-0170.\
4. Install Center Axle Legs (#1or #2) and Outer Axle (#16) to Center Axle (#2) using 3/4" x 4" bolts (#18), and
lock nuts (#7). Tighten securely. NOTE: Install bolts through flats on Axle tube (#6) and through gauge
wheel Axle Legs (#1or #5) and then Center Axle (#2). Attach the adjustment Turnbuckle to the Outer Axle
(#6) and Wing Axle using flatwashers (#10) and cotter pins (#8). Attach the Wing Axle Legs (#5) to the
Wing Axle (#11) 3/4 x 3-1/2 bolts (#12) and locknuts (#7). FIGURE Asm-R-0171. Install Wheels to Axle
Legs on Center Section and Wings.
