Asanté FriendlyNET FS4008P Installation Guide
Page
4
Connecting to Servers and Workstations
Use the following procedure to connect a 10Base-T or 100Base-TX Ethernet server or worksta-
tion to the switch.
1.
Make sure that the length of the straight-through cable between the switch and the station does
not exceed 100 meters, including all patch cables and cross-connect wires.
2.
Connect one end of the cable to the RJ-45 connector on the switch, and the other end to the sta-
tion.
5 4 3 2 1
10Mbps
workstation
100Mbps
workstation
10Mbps
workstation
100Mbps
workstation
100Mbps
workstation

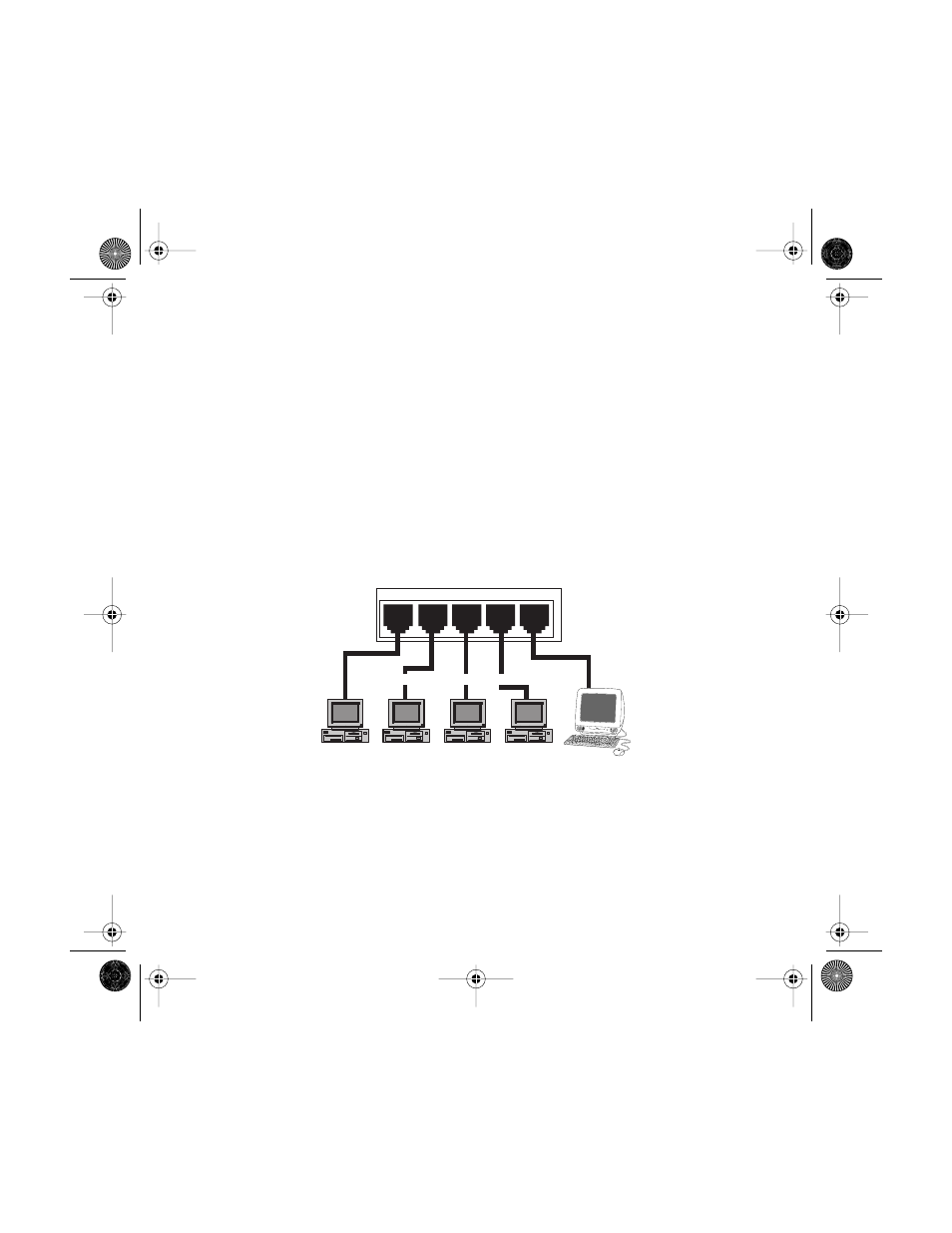

Connection cable may be up to 100 meters long
