Chapter 3

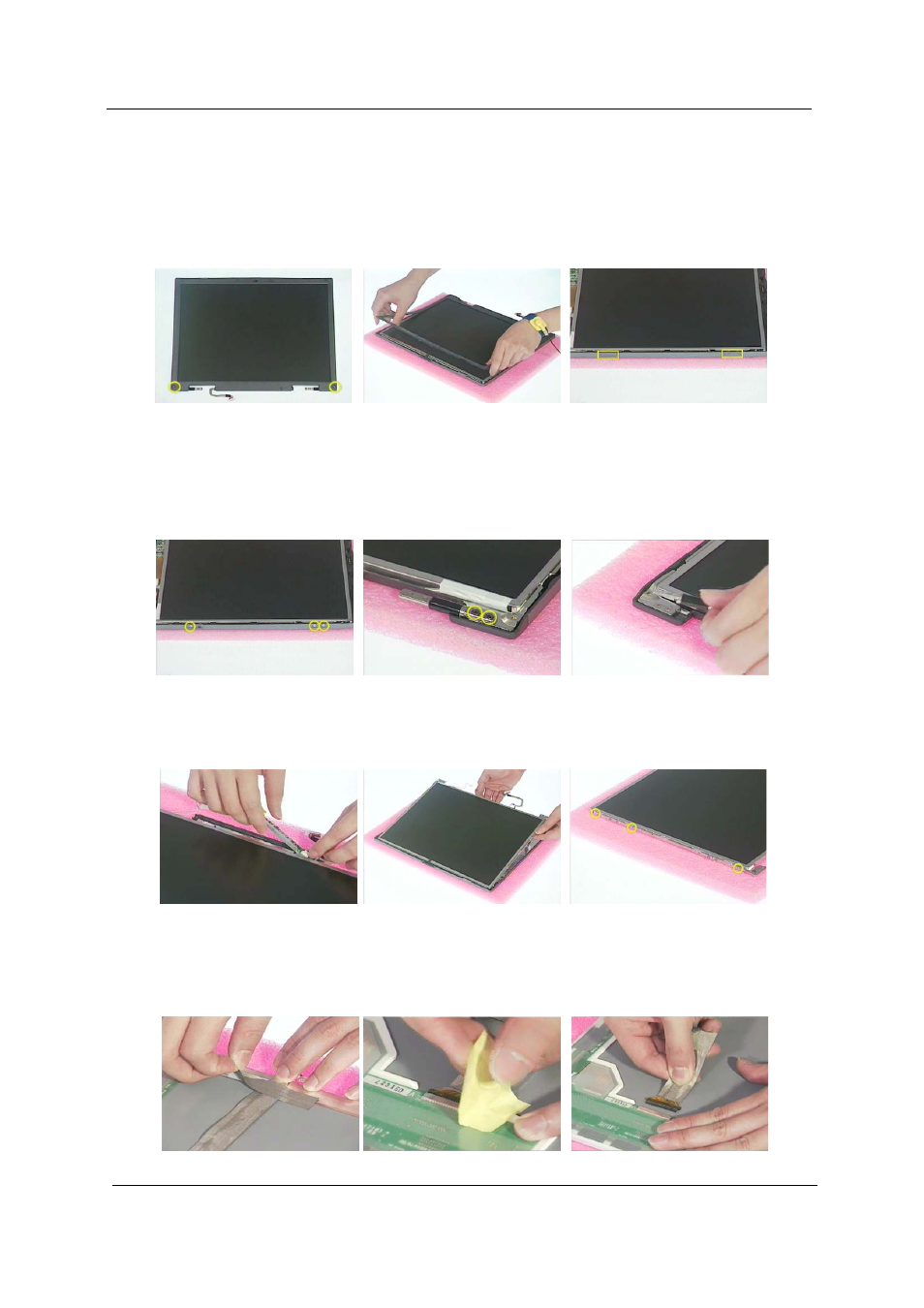

Disassembling the LCD Module-15.1 Inch
1.
First, remove the two screw pads then remove the two screws as shown here.
2.
Detach the LCD bezel carefully.
3.
Detach the four square screw pads. Two on each side.
.
4.
Unscrew the six screws that fix LCD to the LCD panel; three on each side.
5.
Remove the four screws that fix the left and the right hinges; two on each side.
6.
Remove the left and the right hinges.
7.
Disconnect the inverter board power cable and LCD CCFT cable then remove the inverter board.
8.
Take the LCD off the LCD panel.
9.
Unscrew the six screws holding the right and the left brackets then remove the LCD brackets.
10. Tear off the conductive fabric tape.
11. Tear off the tape that fastens the LCD cable.
12. Then disconnect the LCD cable.
