Chapter 5 63

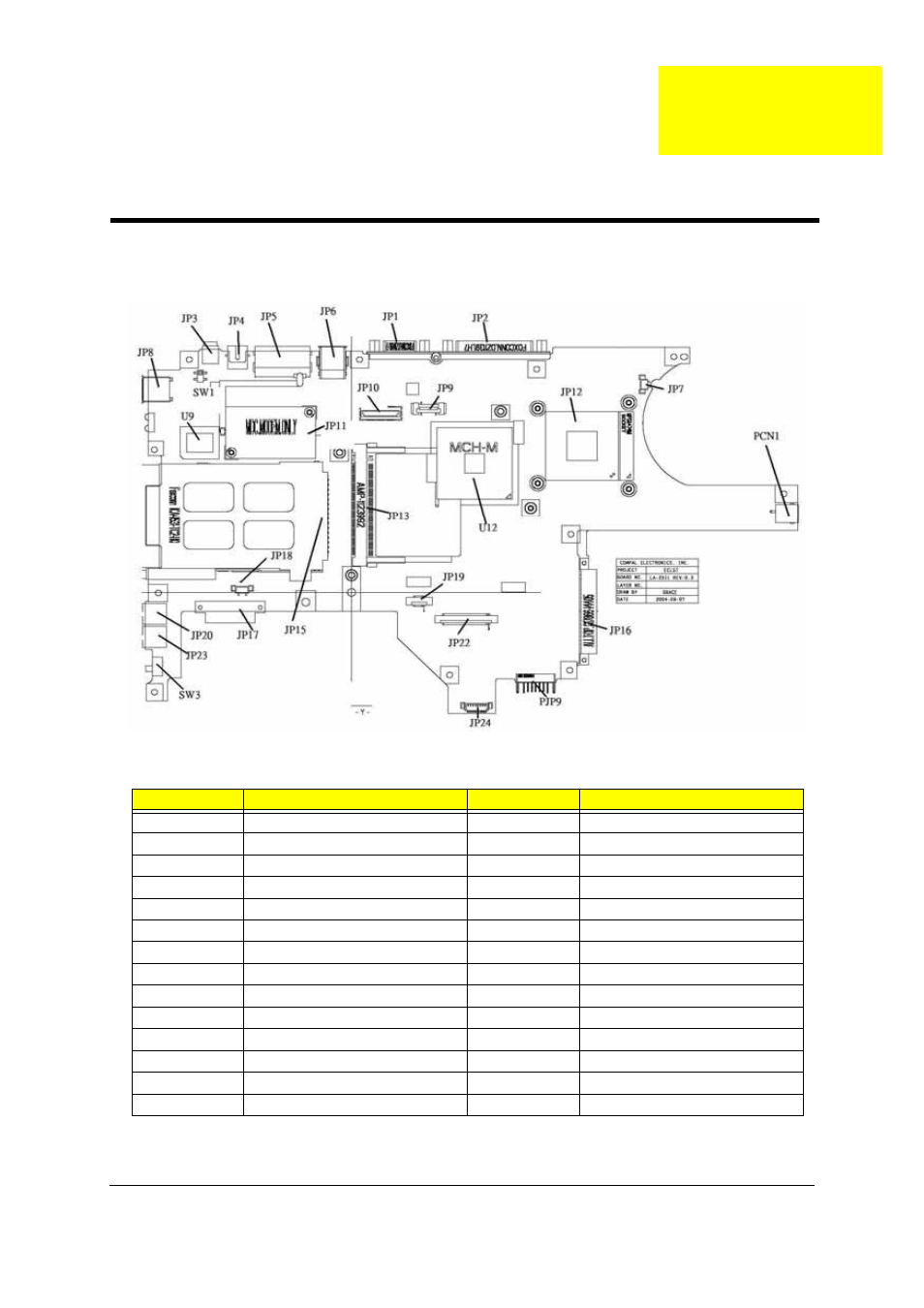

Top View
Item Description Item Description
JP1 CRT CONN JP17 ODD CONN
JP2 Parallel Port JP18 SPK CONN
JP3 IEEE1394 CONN JP19 TP/B CONN
JP4 TV-OUT CONN JP20 MIC JACK
JP5 RJ11/RJ45 CONN JP22 K/B CONN
JP6 USB CONN X 2 JP23 PHONE JACK
JP7 CPU FAN CONN JP16 HDD CONN
JP8 USB CONN SW1 LID SWITCH
JP9 POWER/B CONN SW3 KILL SWITCH
JP10 LVDS CONN U12 NB
JP11 MBC CONN PCN1 AC JACK
JP12 CPU Socket PJP9 BATT COMM
JP13 MINIPCI CONN JP24 LED/B CONN
JP15 CraBus CONN
Jumper and Connector Locations
