Removing the lcd module – Acer TRAVELMATE TravelMate 4050 User Manual
Page 53
46
Chapter 3

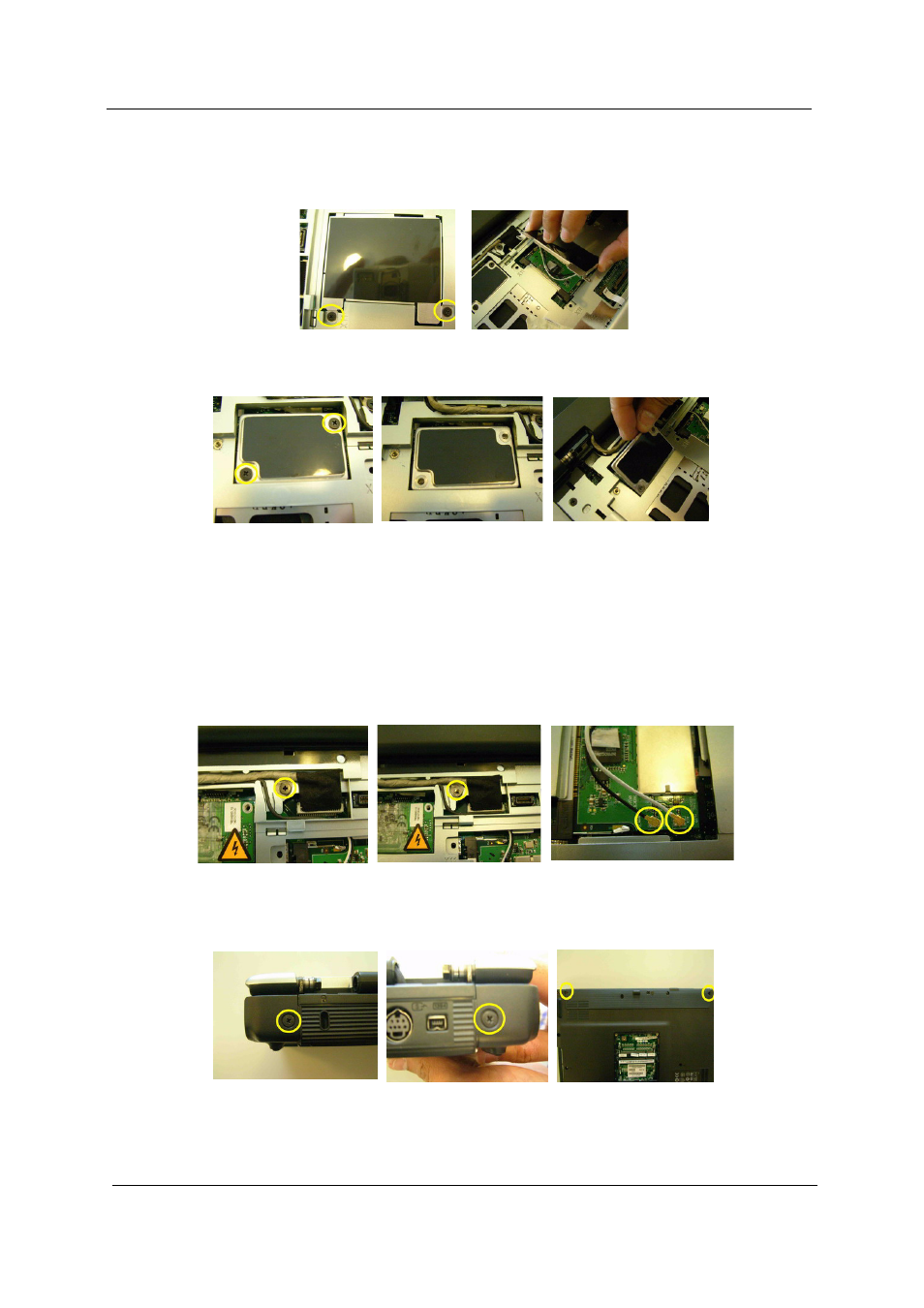

5.
Remove the two screws to release the wireless door.
6.
Detach the wirless door.
7.
Remove the two screws to release the MDC.
8.
Detach the MDC away from the system.
Removing the LCD module
1.
Remove one screw as the picture shows.
2.
Then disconnect the LCD coaxial cable.
3.
Disconnect the antenna.
4.
Remove the two screws located at rear side to release the panel.
5.
Remove the two screws located on the bottom.
