Probe Configuration
Operating Instructions
Before Use Each Time
• The particle filter is not dirty
• The water trap and probe line are empty of water
• All hose and thermocouple connections are properly made
• The flue gas probe is sampling ambient FRESH air
• The water trap is fitted correctly to the instrument
• The Flue temperature probe is connected if required to set the
inlet air temperature
NOTE: If using ambient air for combustion leave disconnected
Switch ON the instrument by pressing “ON/OFF“.
After switch-on, the analyzer will scroll through the following
information while performing a zero countdown:
• Currently Set Date
• Currently Set Time
• Remaining Battery Level
• Fuel Selected
• Model and Analyzer Firmware Level
NOTE: The count begins at 59 seconds, and will display the parameter
selected with the rotary knob when the sensors are detected as stable.
If the analyzer will not auto-zero, the sensors are in need of replace-
ment and the unit should be returned to the authorized service center.
Battery Replacement
This meter has been designed for use with both alkaline and
rechargeable Nickel Metal Hydride (NiMH) batteries. No other types
are recommended. The analyzer is supplied with 4 “AA” size alkaline
batteries. These should be installed into the instrument as shown
below (Fig 1) and indicated on the back of the unit.
CAUTION!
Take great care when installing the batteries to observe correct polarity.
Always check the meter for operation immediately after installing
new batteries.
Using Re-Chargeable Batteries
The battery charger must only be used when NiMH batteries are fitted.
Alkaline batteries are not re-Chargeable. Attempting to recharge alkaline
batteries may result in damage to the product and may create a fire risk.
Charging
Ensure that you use the correct charger. This unit uses a 9V DC
regulated charger.
Ensure that the batteries are fitted in the correct manner, and then
charge for at least 16 hours. Subsequent charges should be overnight.
NiMH batteries may be charged at any time, even for short periods to
conduct testing.
WARNING!
Under NO c i rcumstance should you expose batteries to ex t reme heat or
f i re as they may explode and cause injury. Always dispose of old batteries
p romptly in a manner consistent with local disposal re gu l a t i o n s .
C75-MAN P. 2

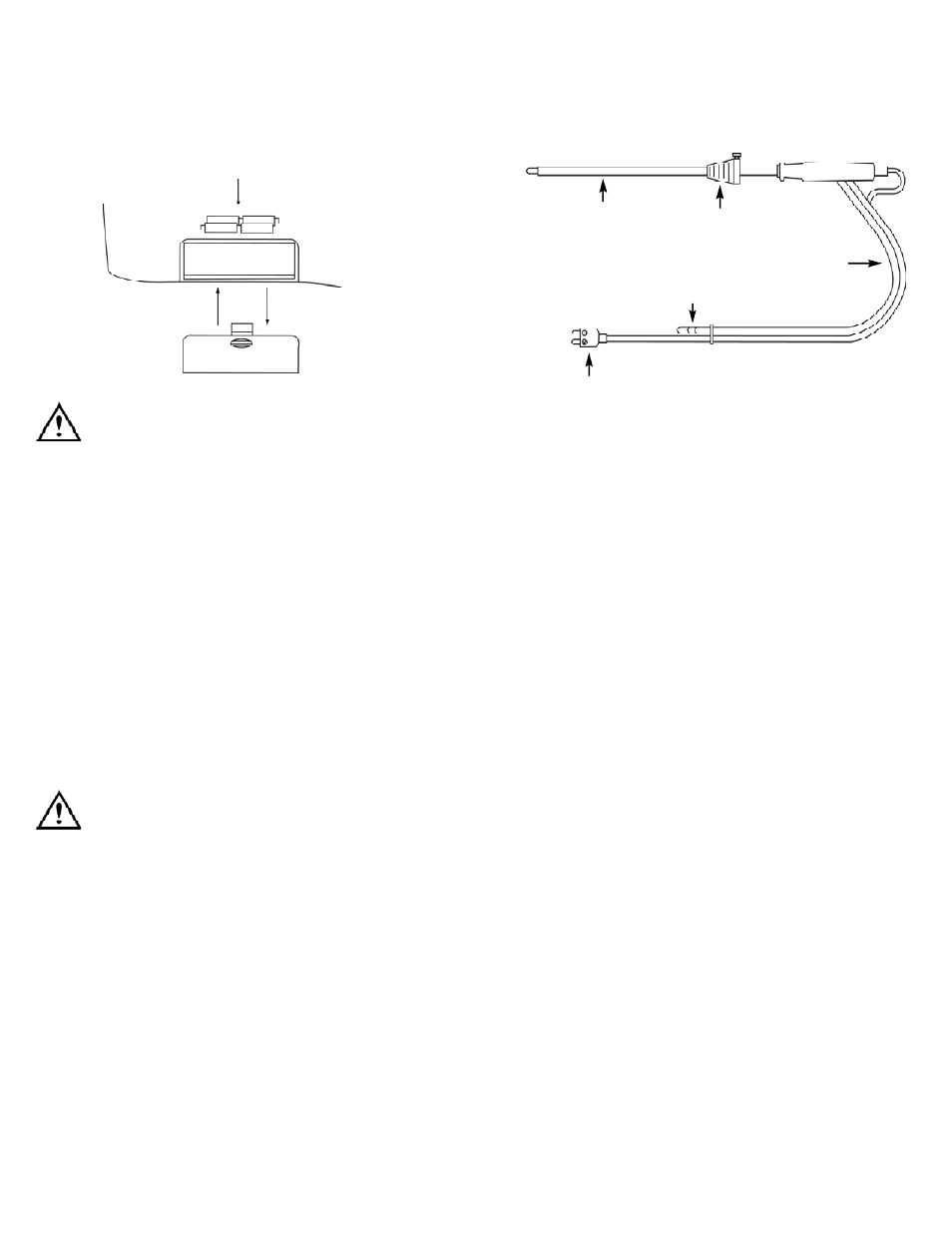

Type K-Thermometer plug
Stainless steel shaft
Depth stop cone
9 foot neoprene hose
Flue temperature probe connector
Flue gas connector
Fit probe connector to end of
tube using barbed end.
(Fig 1)
