MEMORY CARD
SLOT
SERIAL
CONNECTIONS
The bottom 2 pins of input connector 1 are used to provide the 24V
dc power to the MC224. A 24V dc, Class 2 transformer or power
source must be provided.
This 24 Volt input also supplies power to the I/O 24 Volts and any
daughter boards fi tted.
The MC224 is grounded via the metal case. It MUST be installed
on an unpainted metal plate which is connected to earth.
Pin
Function
Note
1
Internal 5V
2
Internal 0V
3
RS232 Transmit
4
RS232 0V
Serial Port #0
5
RS232 Receive
6
+5V output
7
Externally buffered output (TTL)
For fi bre-optic
adaptor.
8
Externally buffered input (TTL)
Note: Port 0 is the default programming port for connection to the PC running Motion
Perfect.

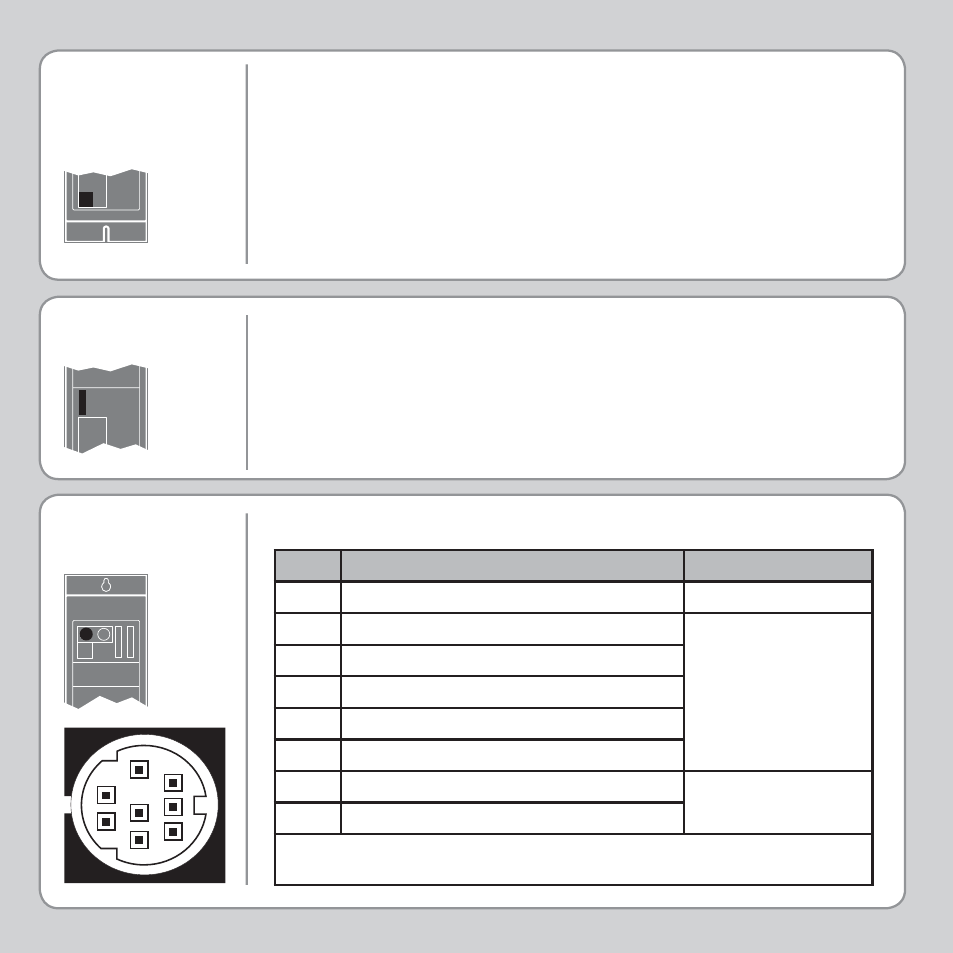

POWER
CONNECTOR
Serial Connector A
1
2
3
4
6
7
5
8
A memory slot is provided for the NexFlash memory stick or
P396 SD Card adaptor. Available seperately.
