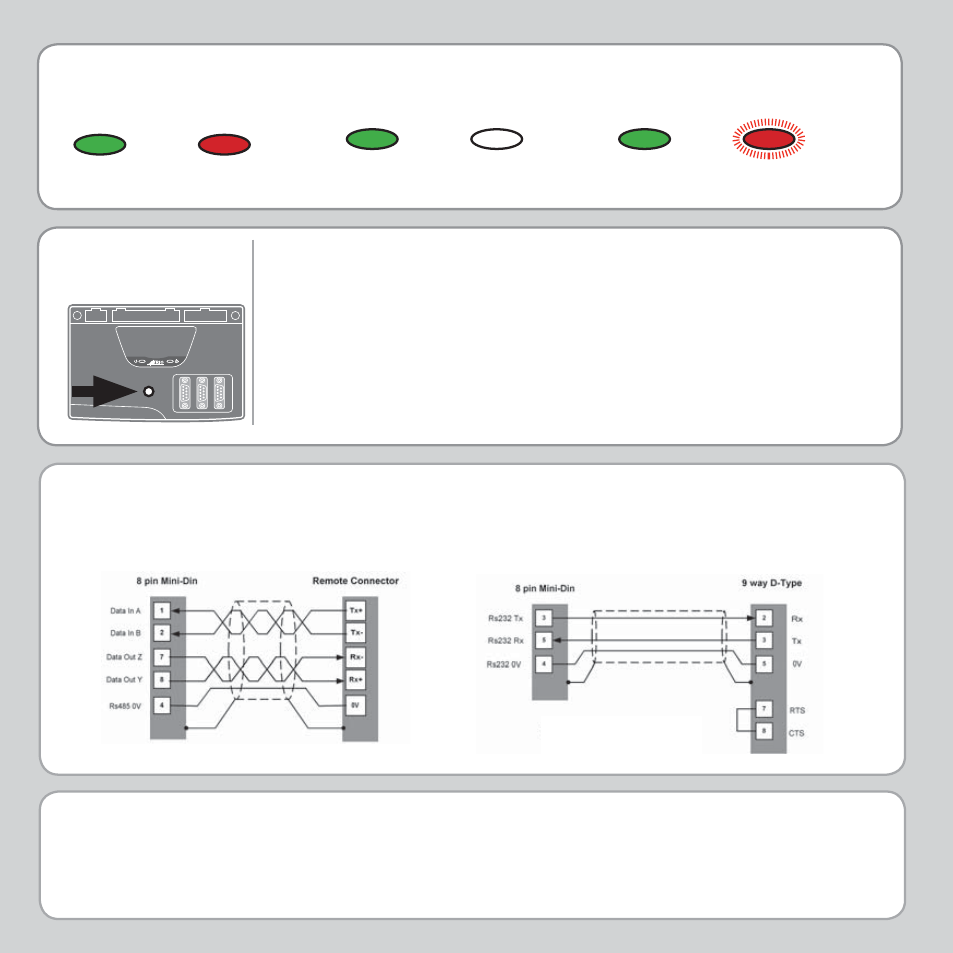

STATUS LED’S
The factory default IP address is 192.168.0.250. This can be changed
using the ETHERNET or IP_ADDRESS commands via Motion Perfect.
To return to the factory IP address, hold the IP address reset switch
in while powering up.
Display at start-up
green - ON red - ON
Display with WDOG on
green - ON red - OFF green - ON red - FLASHING
Display Error
IP ADDRESS
RESET
quick start v3-Febuary 2013
Good quality screened cables should be used for the serial ports. The serial ports and
CANbus port are not galvanically isolated, therefore the 0V return MUST be connected to all
peripheral devices. In addition, bond together the 0V (24V return) terminals of all system
components so as to minimise current fl owing in the serial cables.
MC 403
Serial cable RS485
Serial cable RS232
