Pack Contents
1 TFP10WL
2 3.5mm diameter screws 32mm long
1 Warning label
1 Instruction leaflet

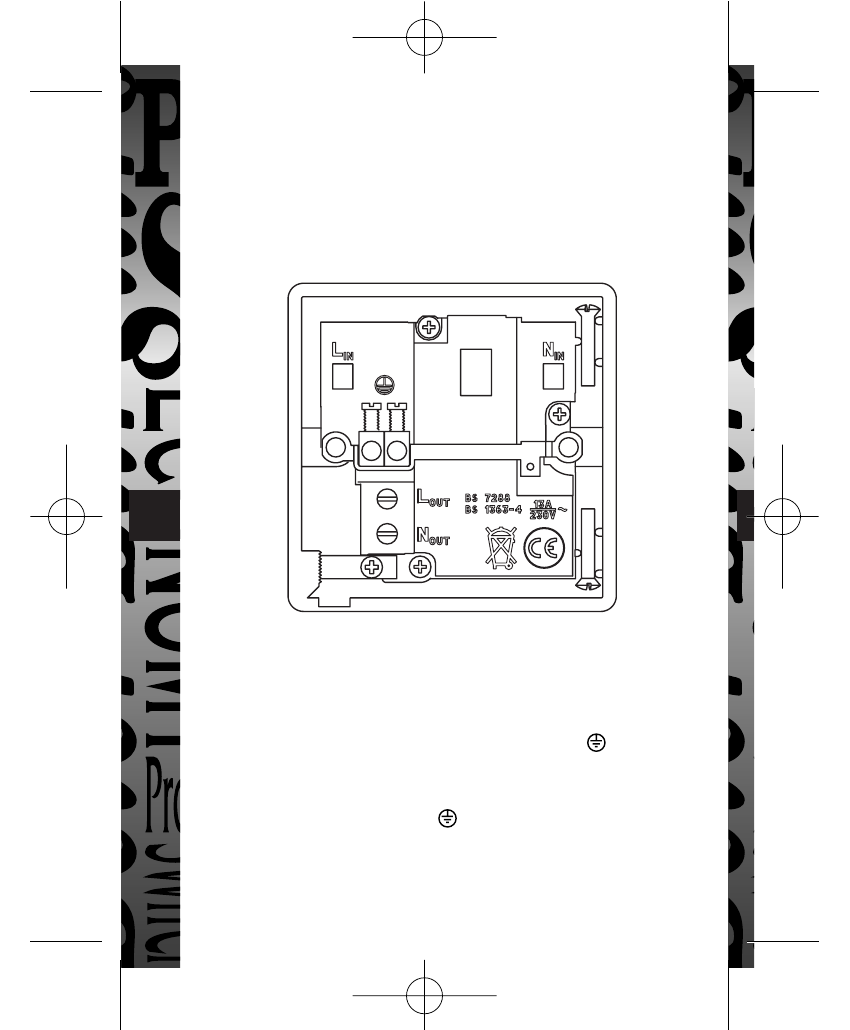

Fused Connection Unit Connections
Supply Brown (Red) (Live) to L IN
Supply Blue (Black) (Neutral) to N IN
Supply Bare Earth Wire, sleeved Green/Yellow, to E
Load Brown (Live) to L OUT
Load Blue (Neutral) to N OUT
Load Green/Yellow (Earth) to E (one or both terminals can be
used as convenient)
