1 2

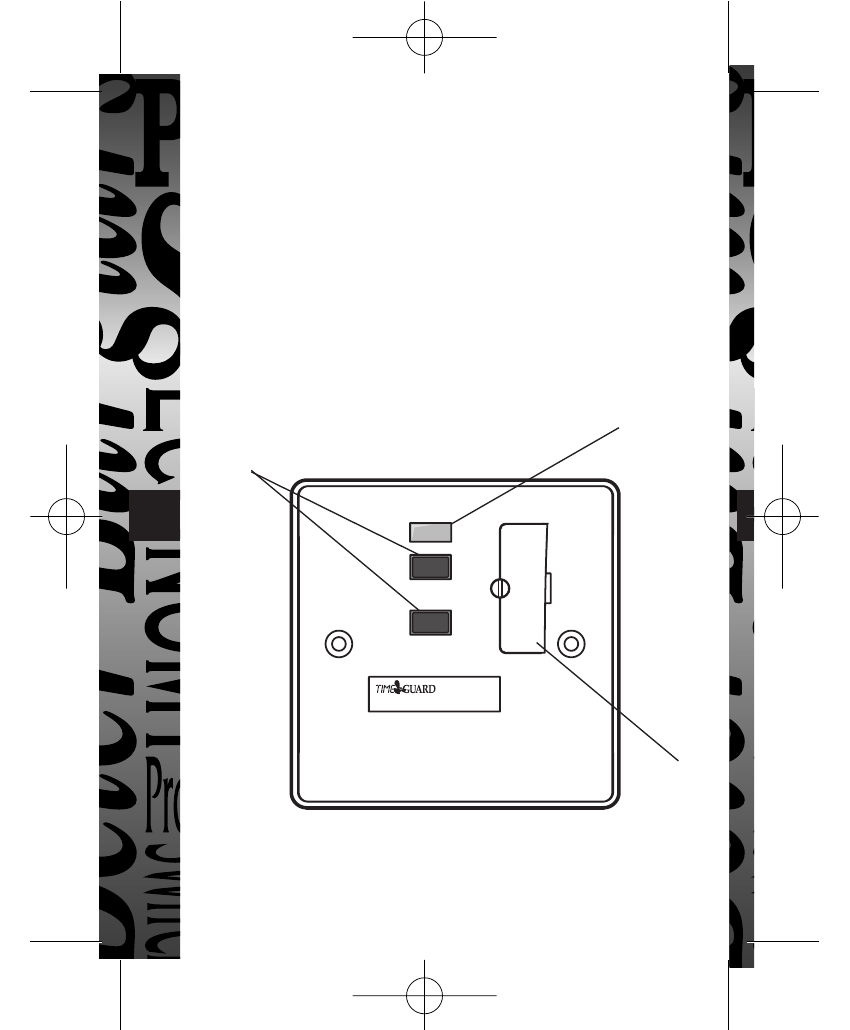

Colour coded positive action
buttons for Testing and
Resetting the RCD
Status indicator shows red for ‘ON’
BS1362 fuse
holder
General
The Timeguard range of RCDs provides protection against fire
hazard and rapid double pole disconnection from electric shock for
the appliance and cable connected to it. They comply fully with
BS7288 and BS1363. They are designed to mount on either a BS4662
recessed box or a BS5733 surface mount box (plastic versions only).
Note: RCD – Residual Current Device.
RCD Fused Connection Unit
Model: TFP10WL
The RCD fused connection unit is a latching (passive) version. If set,
this will retain closed contacts if the mains supply is interrupted –
essential for applications such as freezers.
Fuse
RED/ON
RESET
TEST
Passive 30mA Test (T) Befo re Use
