Installation procedure – Timeguard LED100FLWH User Manual
Page 5
4

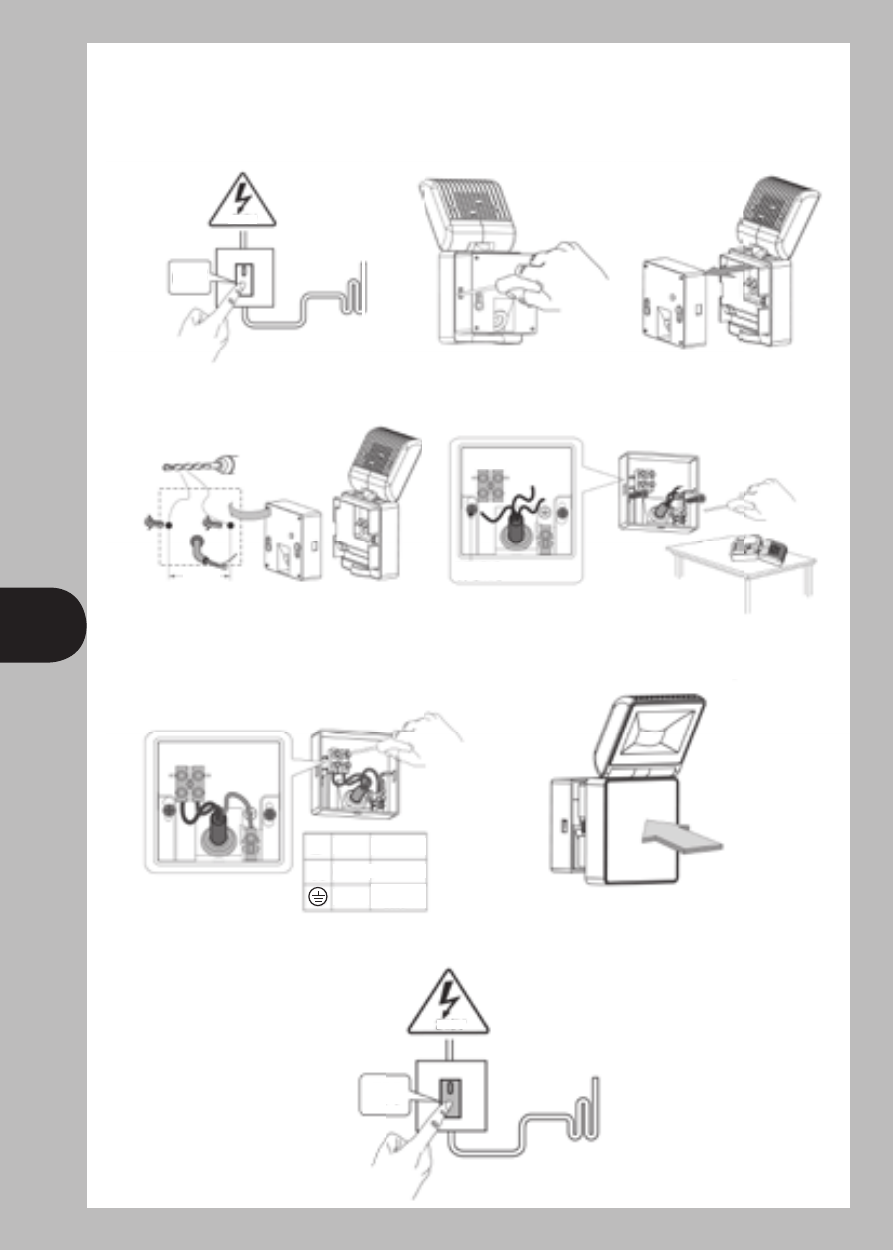

6. Installation Procedure:
Switch off the power.
Twist-open the wall plate.
Fix the wall plate to the wall.
Feed the wires through rubber gasket
of the wall plate and attach to
corresponding terminal.
Attach the device to the wall plate.
Switch On the power.
240V
240V
OFF
Ø5mm
60mm
ON
L N
L N
L
N
LIVE BROWN
BLUE
EARTH GREEN/
YELLOW
NEUTRAL
Mounting Screws x2
