1 2 3 4
Contacts for
connecting to
MEU/EMU
module Module
header pins
(.25mm blades)
Voltage free
single pole
changeover
relay
General
The PB05 is a combined relay and power supply PCB which works in
conjunction with the range of PanelMaster modules (MEU11, MEU17,
EMU11, EMU17). It enables these timer modules to be powered from
the mains 220 - 240V 50Hz supply and has a relay output with
voltage free single pole changeover contacts rated at 16A resistive.
24.75
47.0 38.0
7.8
6.5
3.00Ø hole (3 off)
(1/4 in)
250 (5 off)
blade
27.25
24.75
27.25

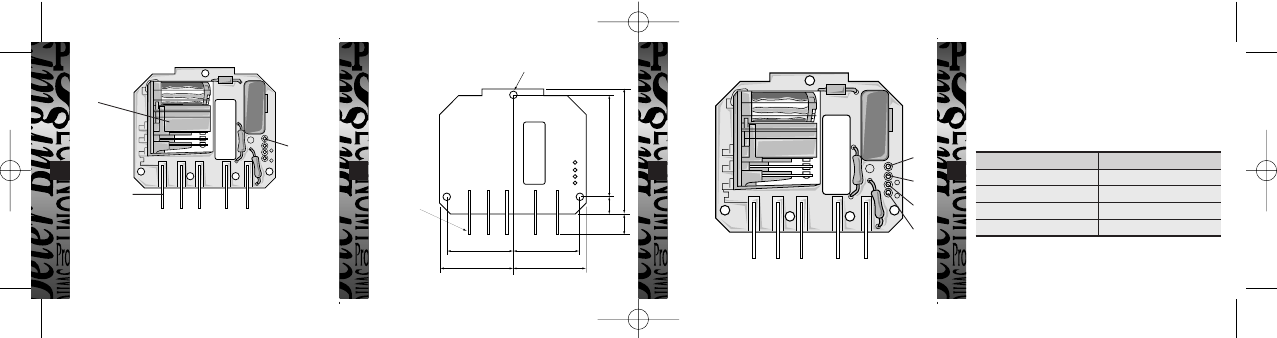

Physical Arrangement
Engineering drawing
available on
request.
Connections
A
1 2 3 4 5
B
C
D
Contacts A to D
4 x 1mm Ø holes for wires to be soldered into (wire tails on
component side). These connect to header pins 1 to 4 on
EMU/MEU PanelMaster timer modules.
PB05 Module Pin
A 1
B 2
C 3
D 4
Interconnection
Maximum
height in
profile
18mm
