Timeguard TGBT5 - Manual (Page 2)

2
1. General Information
Contents
1 TGBT5 Boostmaster.
2 3.5mm screws.
1 Bag containing: 2 screws, cable blank and cable clamp.
1 Instruction leaflet.
The TGBT5 is a boost timer giving a range of boost times from
1hr to 4hrs covering the majority of requirements for heating,
ventilation and lighting (a light switch may be replaced by this unit
if a neutral is available).
The unit fits on a single gang wall box, flush or surface, 25mm deep
and above.
It can be instantly cancelled or reset, the LEDs flash to give a warning
of time out.
A blanking plate can be removed to allow an appliance cord to outlet
from the lower front.

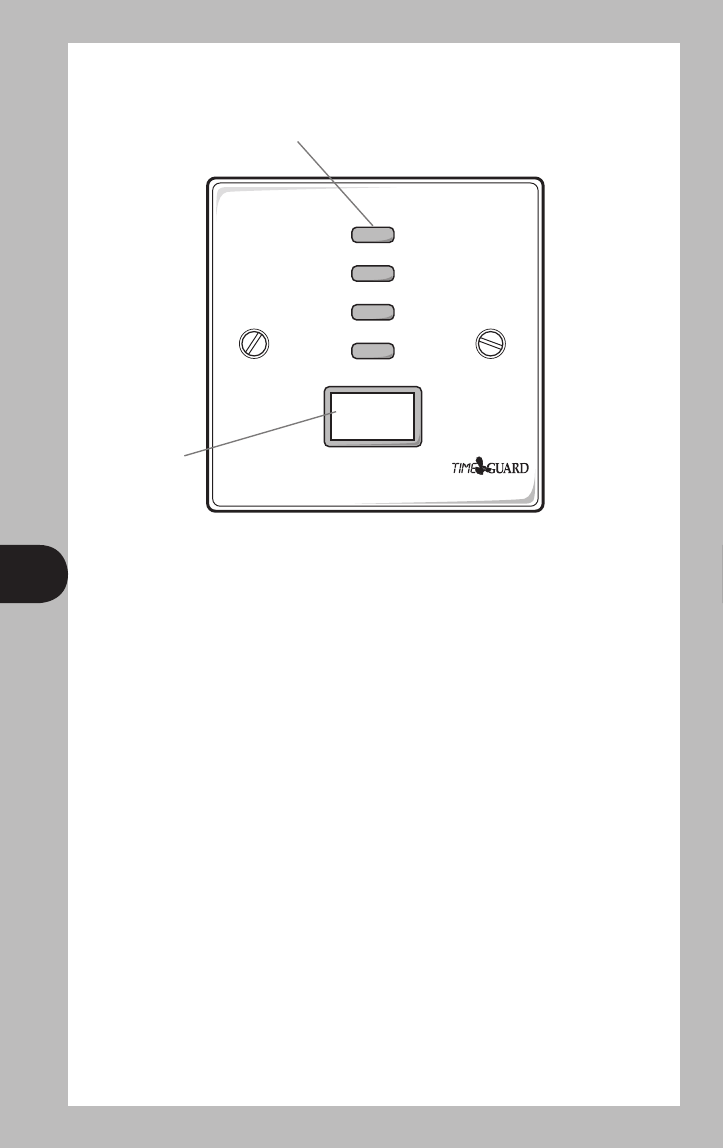

Fig. 1
TGBT5 Front Panel
Boost time LED’s
Boost Button
4
3
2
1
Boost
