Sterlco SF Series Cooling Towers - Manual (Page 21)

Fiberglass Cooling Towers Chapter 6: Appendix Page 21 of 25
6-2 Drawings and Specifications
C
A0536711
A
Fan guard
B
Top View
Access
Fan motor
Fan blade
Nozzle
adaptor
Nozzle
door
Rigid PVC
tower fill
Water
diverter
Motor support
assembly
Side View Cutaway View
Supply piping
D
Return
piping E

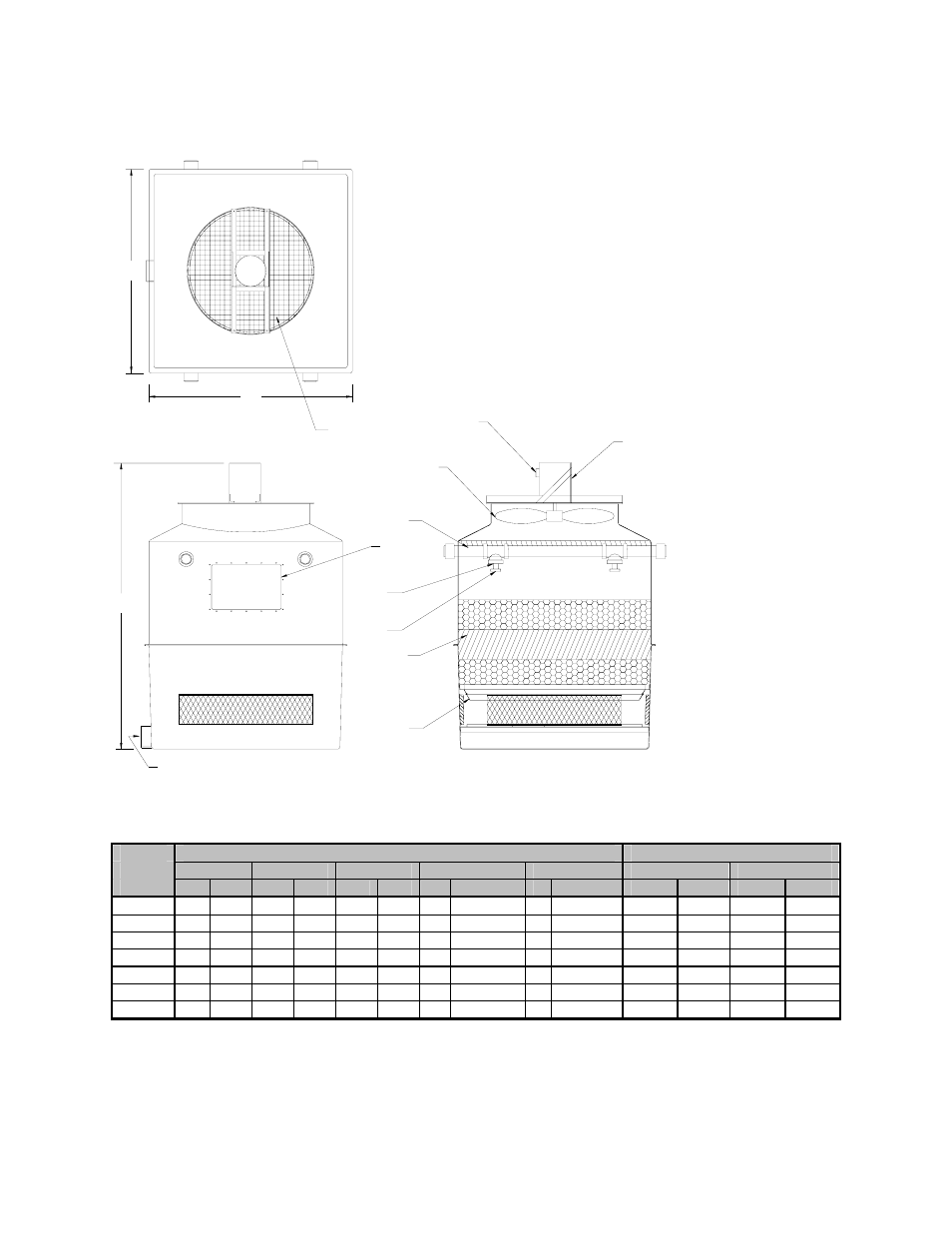

Figure 7: Dimensions and Weights
Dimensions Weights
Model A B C D (supply) E (return) Shipping Operating
number in. cm in. cm in. cm in. mm c in. mm c lbs. kg lbs. kg
SF2003 64 163 64 163 104 264 3” 76.2 mm 4” 101.6 mm 600 273 1,300 591
SF2004 64 163 64 163 125 318 3” 76.2 mm 6” 152.4 mm 750 341 1,700 772
SF2005 82 208 82 208 121 307 4” 101.6 mm 8” 203.2 mm 1,400 636 2,900 1,317
SF2007 82 208 82 208 121 307 4” 101.6 mm 8” 203.2 mm 1,500 681 3,200 1,453
SF2009 100 254 100 254 123 313 4” 101.6 mm 8” 203.2 mm 1,950 886 3,800 1,726
SF2011 100 254 100 254 123 313 4” 101.6 mm 8” 203.2 mm 2,100 954 4,400 1,998
SF2015 100 254 100 254 124 315 4” 101.6 mm 8” 203.2 mm 2,600 1,181 5,200 2,361
c Millimeter measurement is approximate. Customer is responsible for converting to metric piping sizes.
