Function Description
This part describes the function of the standard configuration of CF8-W-Disp-GH. It
may be re-programmed before or after the installation by a PC and the standard UIP
software (version 4.3 or higher).
Out(1) = measuring signal of carbon dioxide concentration
Out(2) = measuring signal of temperature
Out(3) = ON/OFF signal of demand of air quality
The opening of the relay is controlled by the hysteresis of the relay. See figure 4.

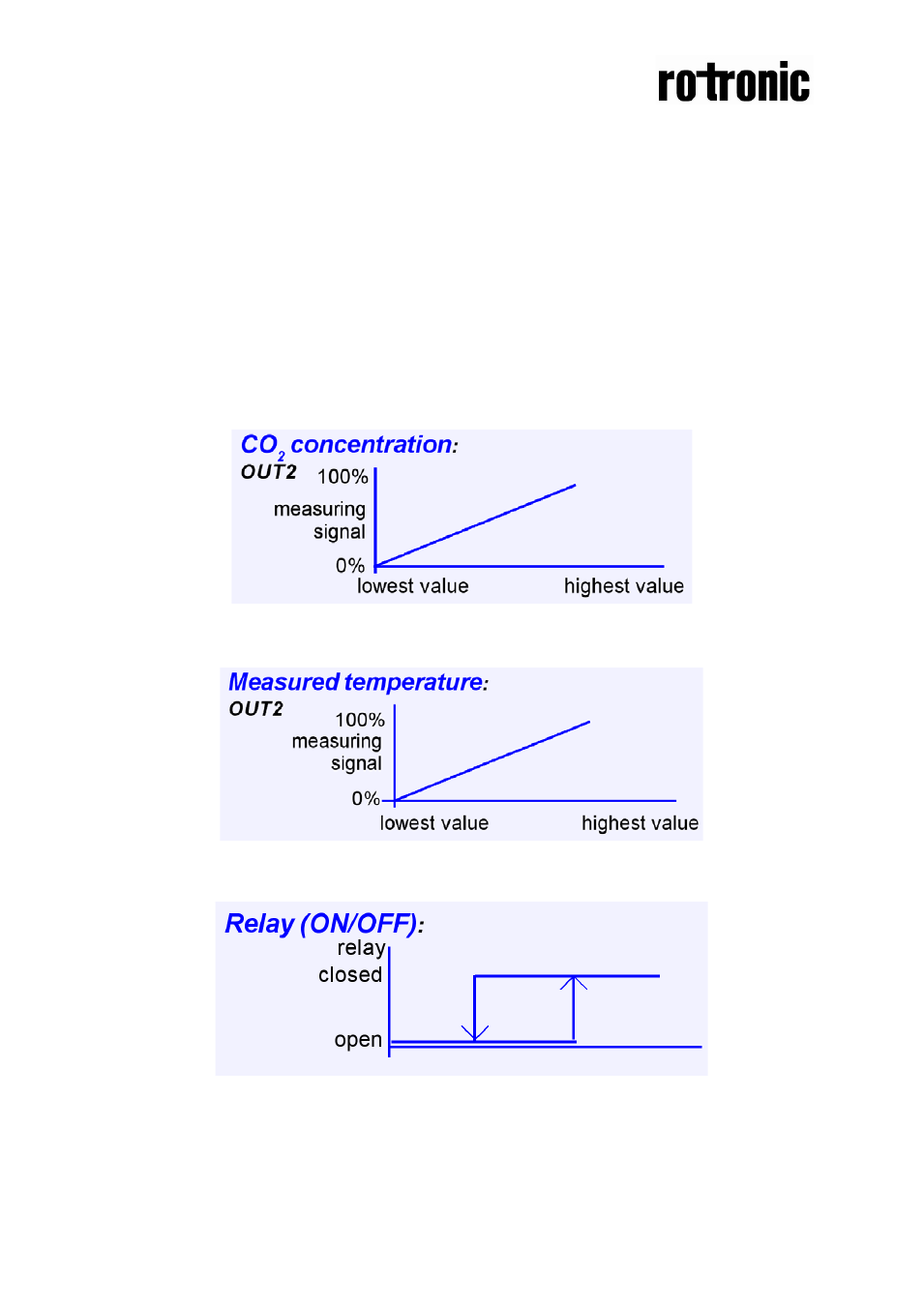

Figure 2. The measuring signal of carbon dioxide.
Figure 3. The measuring signal of temperature
Figure 4. The relay output
