PEP Filters TOWER CLEAN PACKAGE - Manual (Page 13)

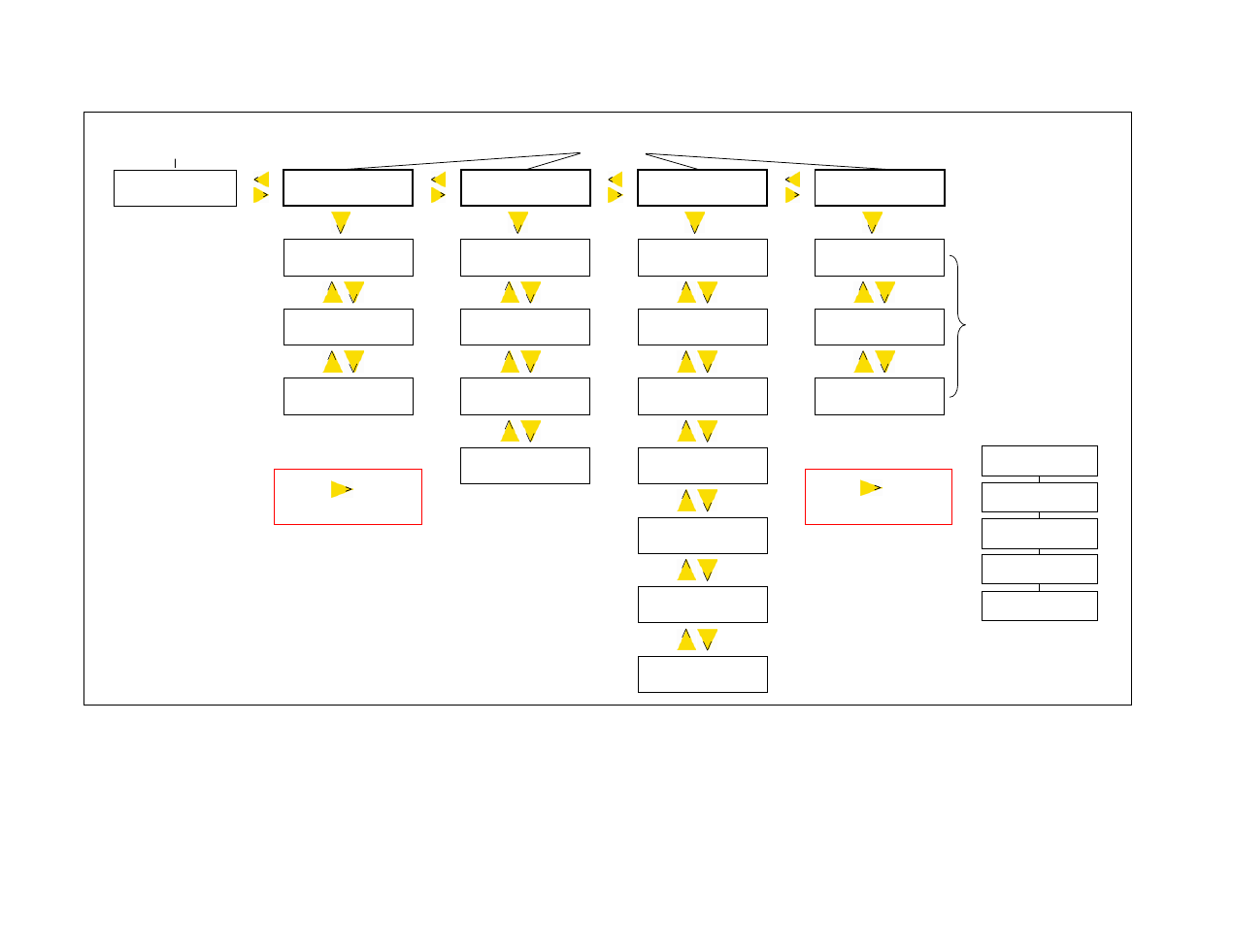

Program Flow Chart - TowerClean Disc Media Filter
Status
DP Status ON/OFF
Next Flush mm:ss
CONFIGURATION MANUAL FLUSH FLUSH SETTINGS COUNTERS
# of Pod Valves
= _ _
Manual Pod 1
ON / OFF
Cycle Time
_ _ _ _ mm
Start by D.P.
_ _ _ _
Valve Delay
ON / OFF
Manual Pod 2
ON / OFF
Mstr Valve Delay
_ _ ss
Start by Time
_ _ _ _
Press "0" to reset counters
Main Valve or Pump
ON / OFF
Manual Pod 3
ON / OFF
Valve Delay Time
_ _ ss
Start by Manual
_ _ _ _
Manual Pod (n)
ON / OFF
Dwell Time
_ _ ss
Flush Time
_ _ : _ _ mm:ss
D.P. Delay
_ _ ss
Flush Faults
= _ _
Main Menu
Press to return
to Main Menu
OPERATION KEYS
Press and hold "0" to initiate an automatic backwash cycle
Press and hold "1" to terminate the backwash cycle
Press and hold "2" to pause the filter program; press
and hold "2" again to resume the filter program
Press to return
to Main Menu
During a flush cycle, the
following status
parameters are displayed
Mstr Valve Delay
_ _ SP _ _ PV
Valve Delay
_ _ SP _ _ PV
Dwell Time
_ _ SP _ _ PV
Flush Time
_ _ SP _ _ PV
BACKWASH FAULT
TIME
Unitronics PLC
