Ouellet TH115 User Manual
Page 8
Owner’s Guide
6
ENG
LISH
n
Turn the heating system off at the main electrical panel.
o
Loosen the bottom screw and remove the thermostat faceplate from its
wallplate. (The screw cannot be completely removed.)
p
Connect the thermostat to the load and to the power supply (see page 7).
q
Connect the floor sensor (see page 8).
r
If you wish to connect a remote control device, see page 8.
s
Install the wallplate to the electrical box using the provided screws.
t
Set the configuration switches on the back of the faceplate (see page 9).
u
Install the faceplate back on the wall plate and tighten the screw.
v
Apply power to the heating system.
w
Test the ground fault protection (see page 19).

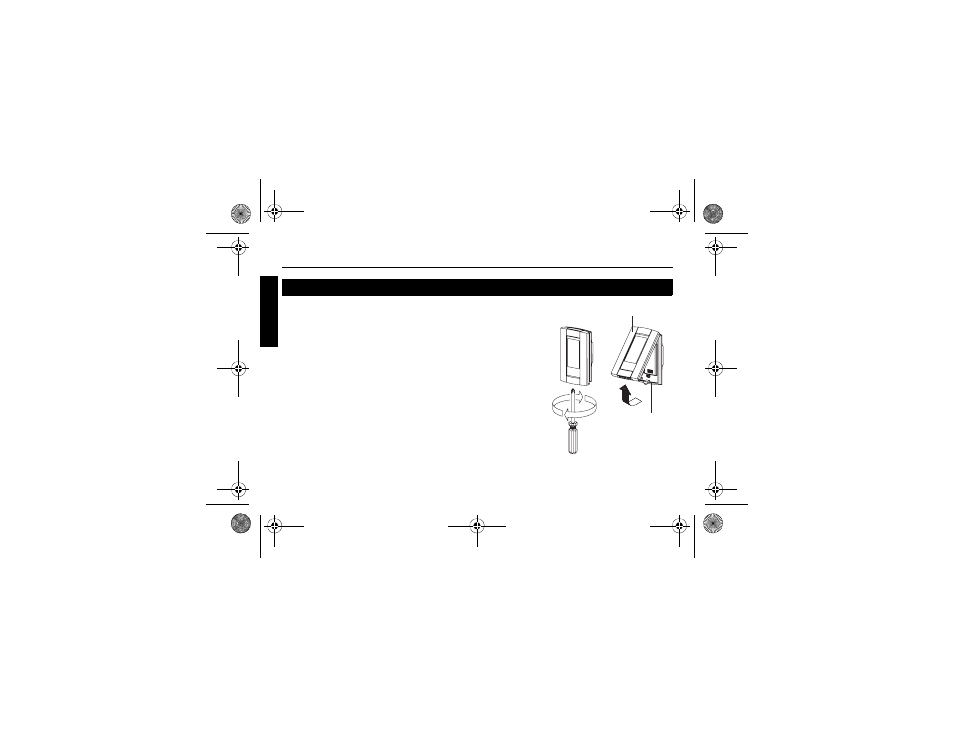

Installing the thermostat
Wallplate
Faceplate
