SWITCHER
5
APPLICATION DIAGRAM 5

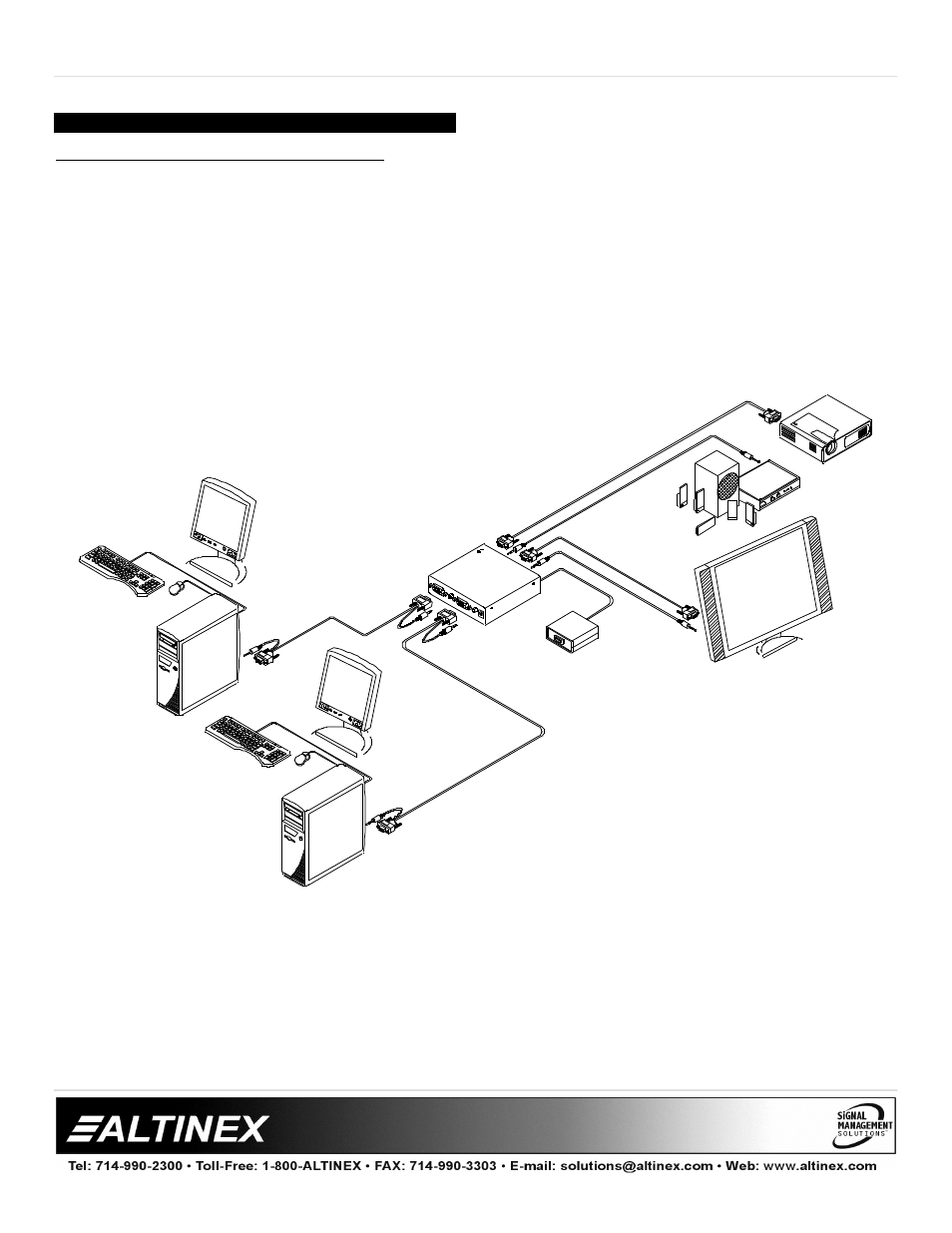

DIAGRAM 1: TYPICAL CONFIGURATION
In addition to automatic switching, the MX2106AV may be controlled manually with an external switch, or using
ASCII commands over the RS-232 bus.
If a remote switch is connected to the INPUT SELECT jack, INPUT 1 will be selected when the contact is open.
INPUT 2 will be selected if the channel select contact is closed. If the RS-232 cable is connected, the user may
send the command [ON1] to select input 1 or [ON2] to select input 2.
Auto-switching is disabled with either manual or RS-232 control. The switching will be identical whether there
are one or two active signals. The indicator lights located next to the input ports indicate which input is selected.
MX2106AV
