Keyboard installation mode
Keyboard installation mode

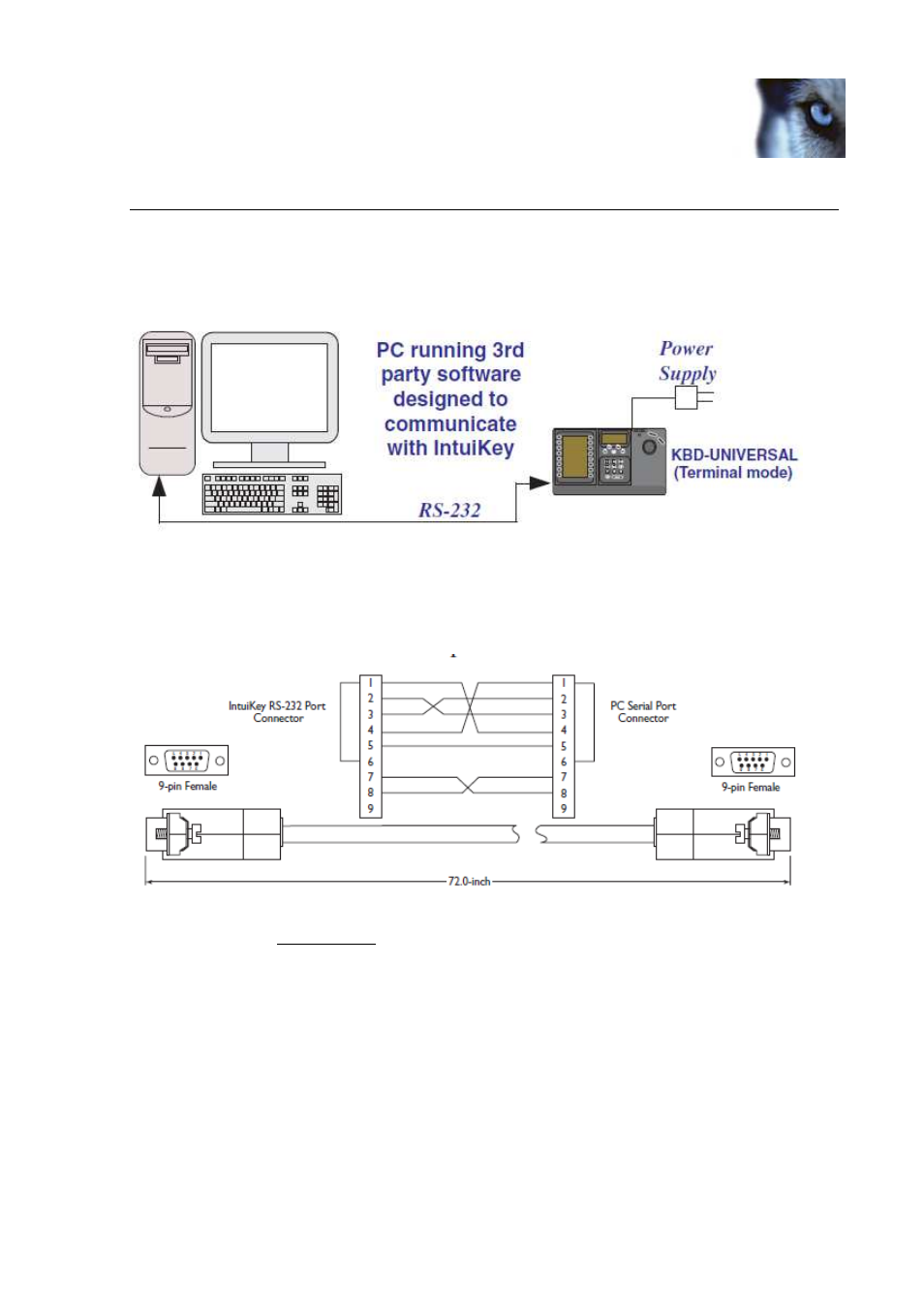

All communication between the Bosch Intuikey keyboard and the third-party PC is performed through an RS-232
interface. The following diagram illustrates this configuration:
This connection requires a standard Null modem RS-232 link. If desired, the Bosch Security Systems cable
S1385 can be used. Connect one end of the RS-232 interface cable to the 9-pin RS-232 Serial Port located on
the far right side of the rear of the KBD-Universal keyboard. Connect the other end of the RS-232 interface cable
to a COM port on the PC.
NB: In order to get use Terminal mode, the firmware version of Bosch Intuikey need to be 1.92 or later.
