4.2 Calibration Methods
The KDM-8206 has three possible calibration methods. The current output can only be calibrated for
4 to 20 mA, so there is no possible bipolar calibration.
Full Scale: (Voltage Out) Output from 0 VDC to some maximum value.
(Current Out) Output from 4 mA to 20 mA
Bipolar: Negative output for first half of range; positive output for second half.
High Accuracy Band: Increased linearity by using only part of the full-scale Measuring range
(Voltage or Current).
Depending on the application, select one of three procedures outlined above to calibrate a system.
Before calibration, we recommend that you become familiar with the following information to ensure
that you have made the necessary considerations regarding your particular application.
With a thorough knowledge of calibration variables and accurate application of the calibration
procedures described in the following pages, you can achieve optimum results. Deviations or
shortcuts can result in operator-induced errors and may complicate rather than solve measurement
problems.

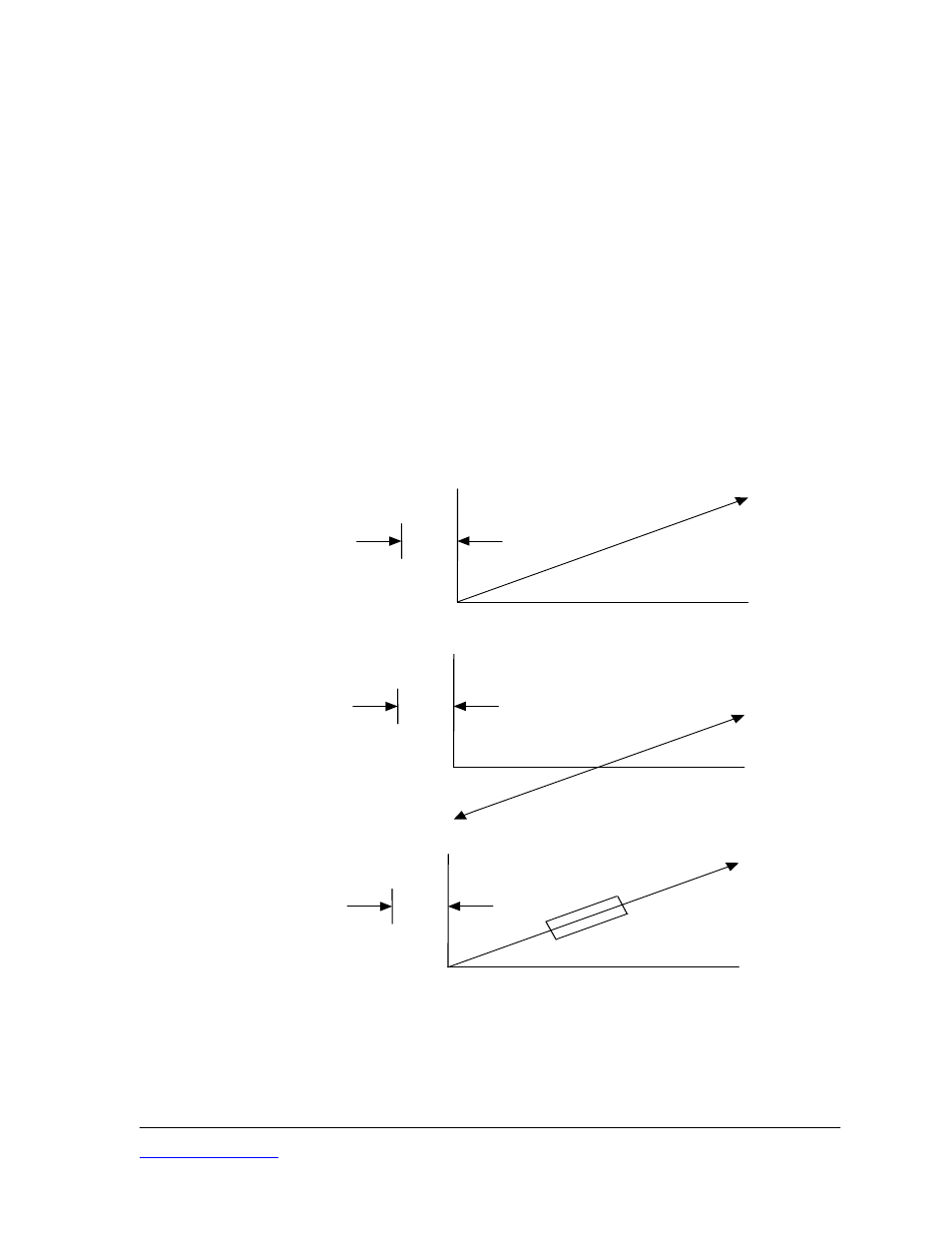

VDC
o ff s e t
D I S P L A C E M E N T
F u ll S c a le C a lib ra tio n
VD
C
o ff s e t
D I S P L A C E M E N T
B ip o la r O u tp u t C a lib r a tio n
C A L IB R A T E D
R A N G E
VD
C
o ff s e t
D I S P L A C E M E N T
H ig h A c c u ra c y B a n d
C a lib r a tio n
