9 MGE™ Galaxy™ 300 10-40 kVA 3:3, 10-30 kVA 3:1 - 380/400/415 V Installation
5. Connect the battery cables to the battery terminals in the UPS. See the UPS installation manual
for information on how to remove the I/O sheet metal cover.
6. Re-install the UPS covers. See the UPS installation manual for more information.
Battery
10-40 kVA 3:3
Battery

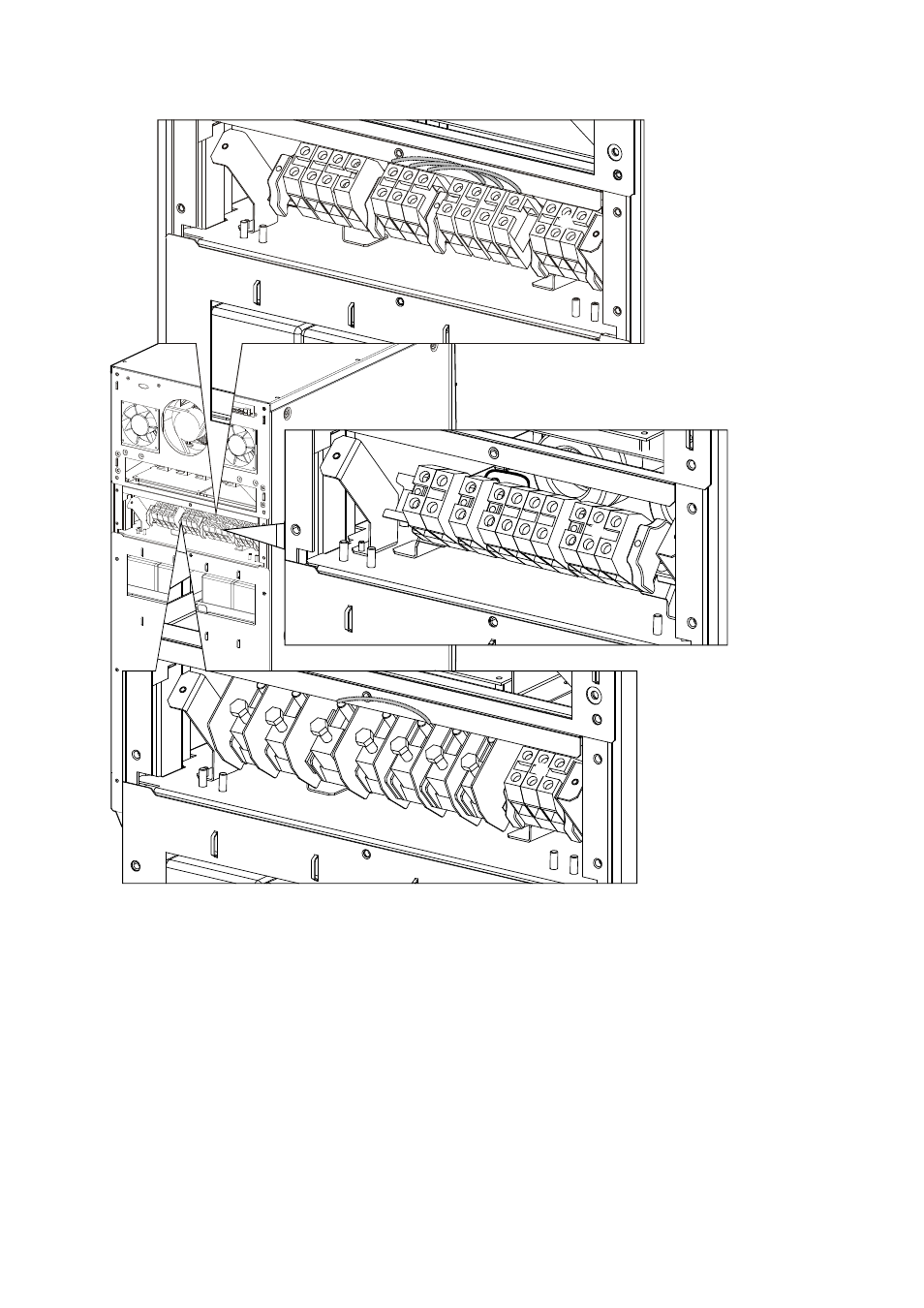

Rear view of the
UPS


Battery

20-30 kVA 3:1
10-15 kVA 3:1
+, N, -
+, N, -
+, N, -
