Audient ASP8024 Large Format Recording Console User Manual
Page 39
Operation Manual
39
Master Section
©
8.21

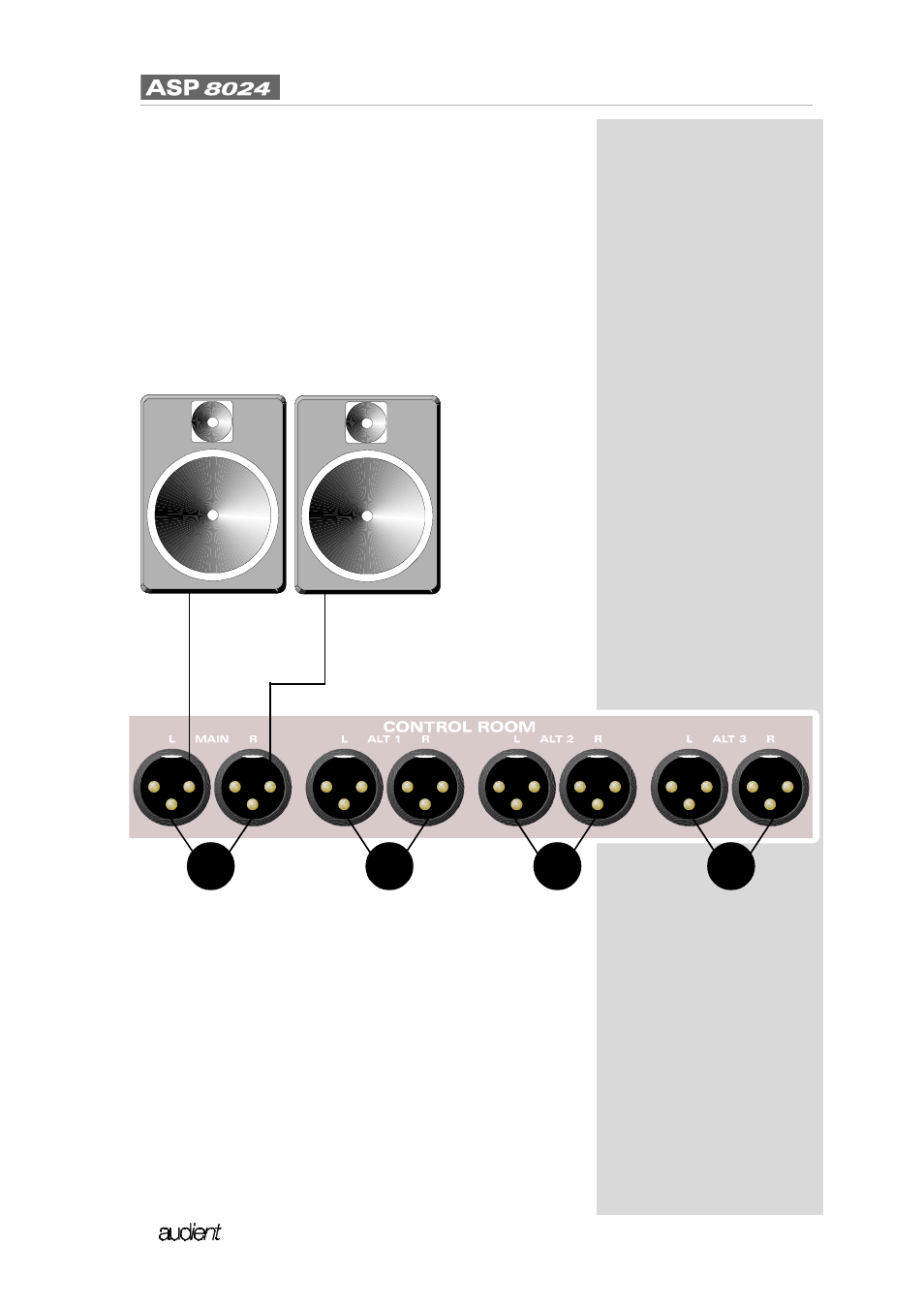

CONTROL ROOM
CONNECTORS
These are the connectors
for the control room
loudspeakers. There is a
main output and 3
alternative outputs which
can be selected from the
control surface of the
console. Each output is
stereo, having a left and
right connector.
The console does not
contain any power
amplification and these
outputs should be
connected into a suitable
power amplifier for the
loudspeakers in use.
The speakers may of
course be self powered in
which case connection
should be made to the
inputs on the loudspeakers.
1 MAIN Control room
loudspeaker output.
2 ALTERNATIVE 1
loudspeaker Output.
3 ALTERNATIVE 2
loudspeaker Output.
4 ALTERNATIVE 3
loudspeaker Output.
3
2
4
1
