Master Section

8.21

This section of the master
module looks after the
STUDIO LOUDSPEAKER
and FOLDBACK outputs of
the console. In every case
the same sources are
available -

TAPE 1

TAPE 2

CONTROL ROOM (C/RM)

AUXILIARY A (AUX A)

AUXILIARY B (AUX B)

Tapes 1 and 2 are external
inputs to the console and
could be anything you care
to plug in. Typically a stereo
recorder output is
connected here.

C/RM selects the control
room monitor output as the
source. This is used to
provide a playback of the
MIX to the studio speakers,
or to set up a quick foldback
mix, perhaps with a little
help from the Aux A and
Aux B buses.

AUX A and AUX B which are
mono sources which can
be independently selected
to the left and right sides of
the studio speaker or
foldback outputs.

Each output has a level
control. The studio
loudspeaker has a CUT
switch and the FOLDBACK
outputs have SOLO
switches. These enable the
foldback mix to be created
or checked in the control
room. This is always AFL.

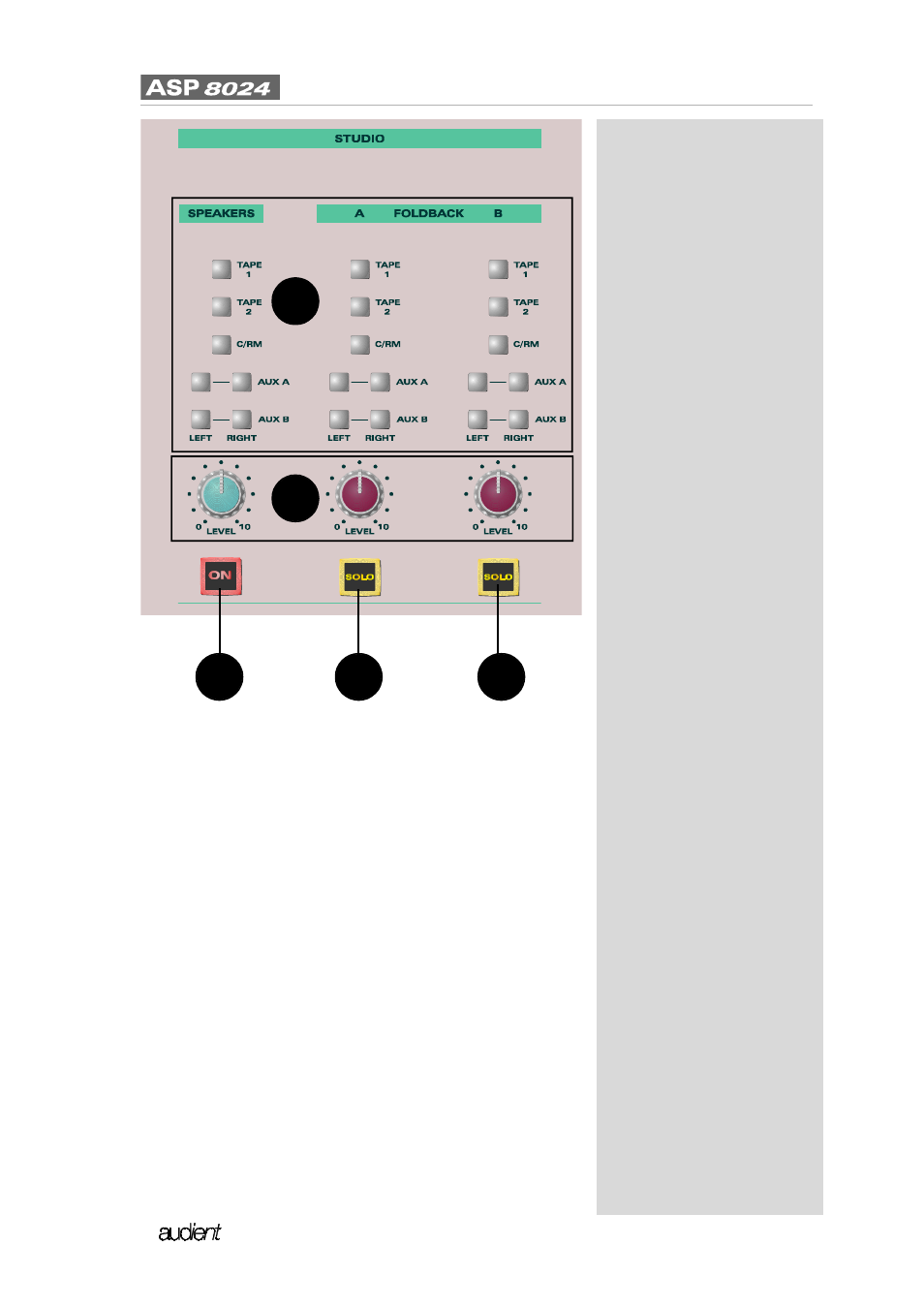

1 SOURCE SELECT. These

select the signals to be
sent to the studio
loudspeakers and
foldback.

2 The LEVEL controls set

the Studio Loudspeaker
and Foldback levels.

3 Studio Loudspeaker ON

switch. This mutes the
Studio Loudspeaker.

4 FOLDBACK 1 SOLO

switch. Allows foldback
1 to be checked on the
control room monitoring
system.

5 FOLDBACK 2 SOLO

switch. Allows foldback
2 to be checked on the
control room monitoring
system.

STUDIO SPEAKERS
and FOLDBACK
