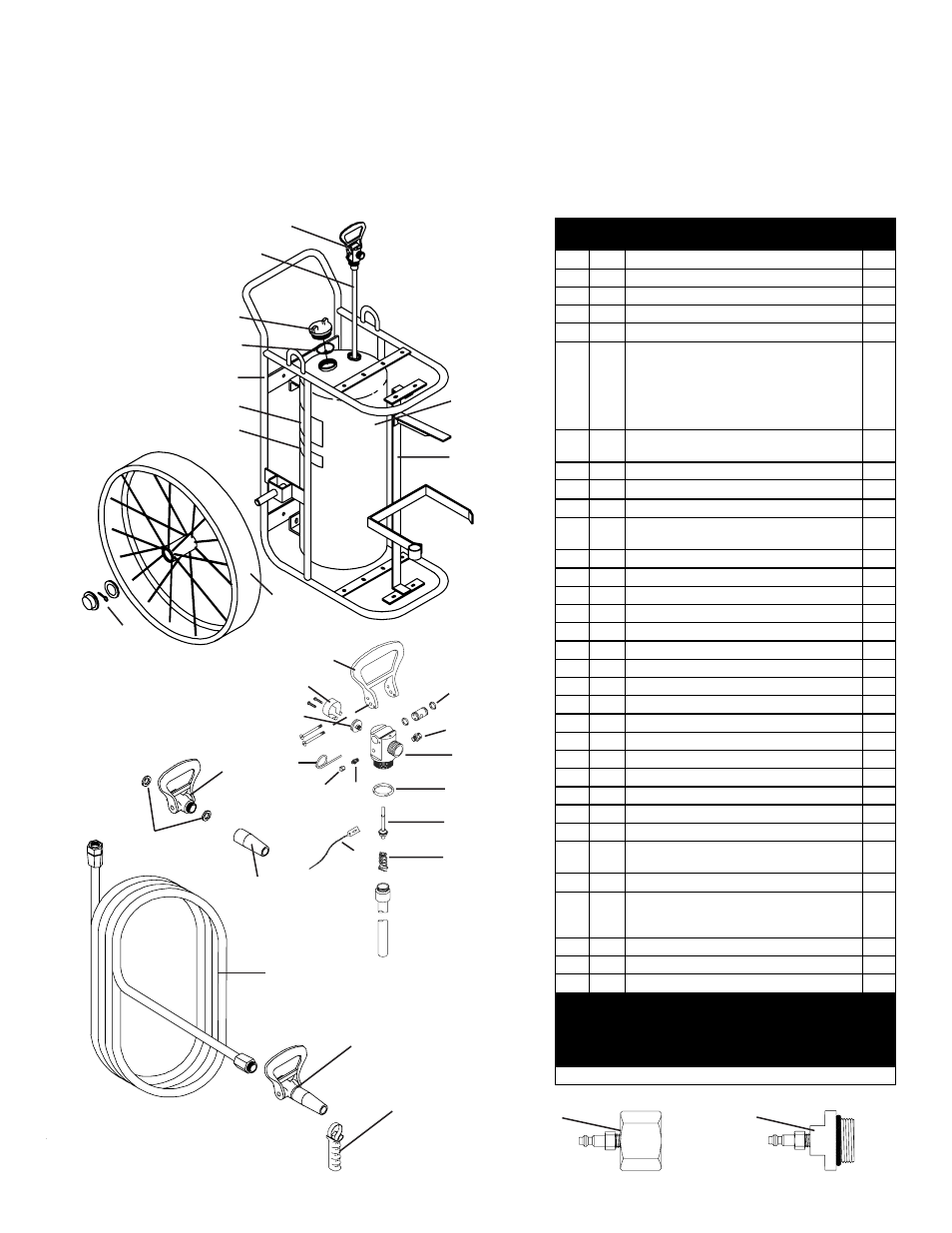

PARTS LIST
for
250 LB. WHEELED / STATIONARY Stored Pressure
HIGH PERFORMANCE
DRY CHEMICAL Extinguishers
WHEELED MODEL
573 ABC
574 REGULAR
575 PURPLE K
STATIONARY MODELS
596 ABC
597 REGULAR
598 PURPLE K
2
3
3A
5
6
7
8
10
4
11
12
13
14
15A
17
18
20
21
22
16
15
19
9
26
25
23
24
27A
27
1
ITEM
NO.
PART
NO.
DESCRIPTION
STD.
PKG.
1
8715 Valve Ass'y Complete with Downtube
1
2
9856 Downtube/Retainer Ass'y
1
3
9300 Fill Cap, Brass, Chrome Plated
1
3A
8392 Gasket, Fill Cap
1
4
8764 Carriage Ass'y without Wheels
1
5
9542
10756
9548
10757
8728
10581
Nameplate (Mylar Label) Non U/L - 573
596
574
597
575
598
1
6
7481
7483
Pictogram - 573, 596
574, 575, 597, 598
1
7
8765 Cylinder with Mounting Brackets
1
8
9553 Hose Support Ass'y with Mounting Hardware
1
9
12180 Wheel Ass'y - 36" x 6" - Galvanized (Red)
1
⌧
7607 Wheel Ass'y - 36" x 6" - CR (Red) with
Rubber Tread
1
10
7389 Hub Cap (Metal) with Washer and Cotter Pin
1
11
6059 Valve Lever with Screws
1
12
3562 Gauge Guard Ass'y
1
13
8714 Gauge - 350 PSI
1
14
6100 Ring Pin, Stainless Steel with Wire
12
15
7309 Pressure ("Bleeder") Valve
1
15A
7310 Cap for Pressure Valve
1
16
1387 Lock Wire Seal (Yellow)
500
17
6060 Cam Ass'y with O-Rings
1
18
8573 Safety Disc Ass'y
1
19
3678 Valve Body
1
20
5239 Collar O-Ring
12
21
5067 Valve Stem Ass'y
6
22
3556 Spring
6
23
3877 Gasket - Hose/Nozzle
6
24
6279 Ball Valve Ass'y
1
25
9399
8260
Nozzle Tip - 573, 574, 596, 597 (.625)
575, 598 (.531)
1
26
6814 Hose Ass'y - 1" x 50 Ft.
1
27
9543
7385
Nozzle Ass'y - Ball Valve & Tip
573, 574, 596, 597
575, 598
1
27A
9711 Pistol Grip
1
28
9857 Fill Adapter
1
29
5152 Hydrotest Adapter (Cylinder)
1
NOTE:
Replacement Valve Assemblies include New
Valve Body, Gauge, Gauge Guard, Safety Disc
Ass'y, Cam, Pressure Valve & Cap, Lever, Valve
Stem Ass'y, Spring and Downtube/Retainer
Ass'y
⌧
PART NOT PICTURED
28
29
09857
05152
