Amerex 05608 User Manual
Page 12
11
Item
No.
Part
No.
Description
Std.
Pkg.
1
05197
Valve Asy Complete w/Downtube
1
2
04938
Downtube/Retainer Assembly
1
3
09300
Fill Cap
1
4
08392
Gasket, Fill Cap
1
5
10431
Carriage Asy w/o Wheels, New
Style
1
6
10430
Hose Support w/Mounting Hdwe, -
New Style
1
7
10467
Cylinder
1
8
07481
Pictogram
– 488, 476
1
07483
Pictogram
– 489, 490, 477, 478
9
07751
Wheel Asy 16" w/Hub Cap, Washer &
Retaining Pin (Semi-Pneumatic)
1
10
04945
Hub Cap
1
11
06059
Valve Lever w/Screws
1
12
03562
Gauge Guard Assembly
1
13
05225
Gauge
– 240 psi
1
14
06100
Ring Pin, Stainless Steel w/Wire
12
15
00155
Pressure Valve and Cap Asy
12
16
01387
Lock Wire Seal (Yellow)
500
17
03678
Valve Body
1
18
06060
Cam Assembly w/O-rings
1
19
14218
Pipe Plug
– For Safety Disc Port
1
03787
Safety Disc Asy (OPTIONAL)
20
05239
Collar O-Ring
12
21
05067
Valve Stem Assembly
6
22
03556
Spring
6
23
03501
Hose Assembly 50 ft. w/Gasket
1
24
03877
Gasket, Hose and Nozzle
6
25
06279
Ball Valve Assembly
1
26
05191
Nozzle Asy (Ball Valve & Tip) 488,
489, 476, 477
1
07432
Nozzle Asy (Ball Valve & Tip) 490,
478
27
06470
Nozzle Tip
– 488, 489, 476,
477 (.344)
1
06208
Nozzle Tip
– 490, 478 (.328)
ALL FILL AND HYDROTEST ADAPTERS
–
SEE ADAPTERS PAGE
REPLACEMENT VALVE ASSEMBLIES INCLUDE VALVE
BODY, GAUGE, GAUGE GUARD, CAM, PRESSURE VALVE &
CAP, LEVER, VALVE STEM ASSEMBLY, SPRING,
DOWNTUBE/RETAINER ASSEMBLY

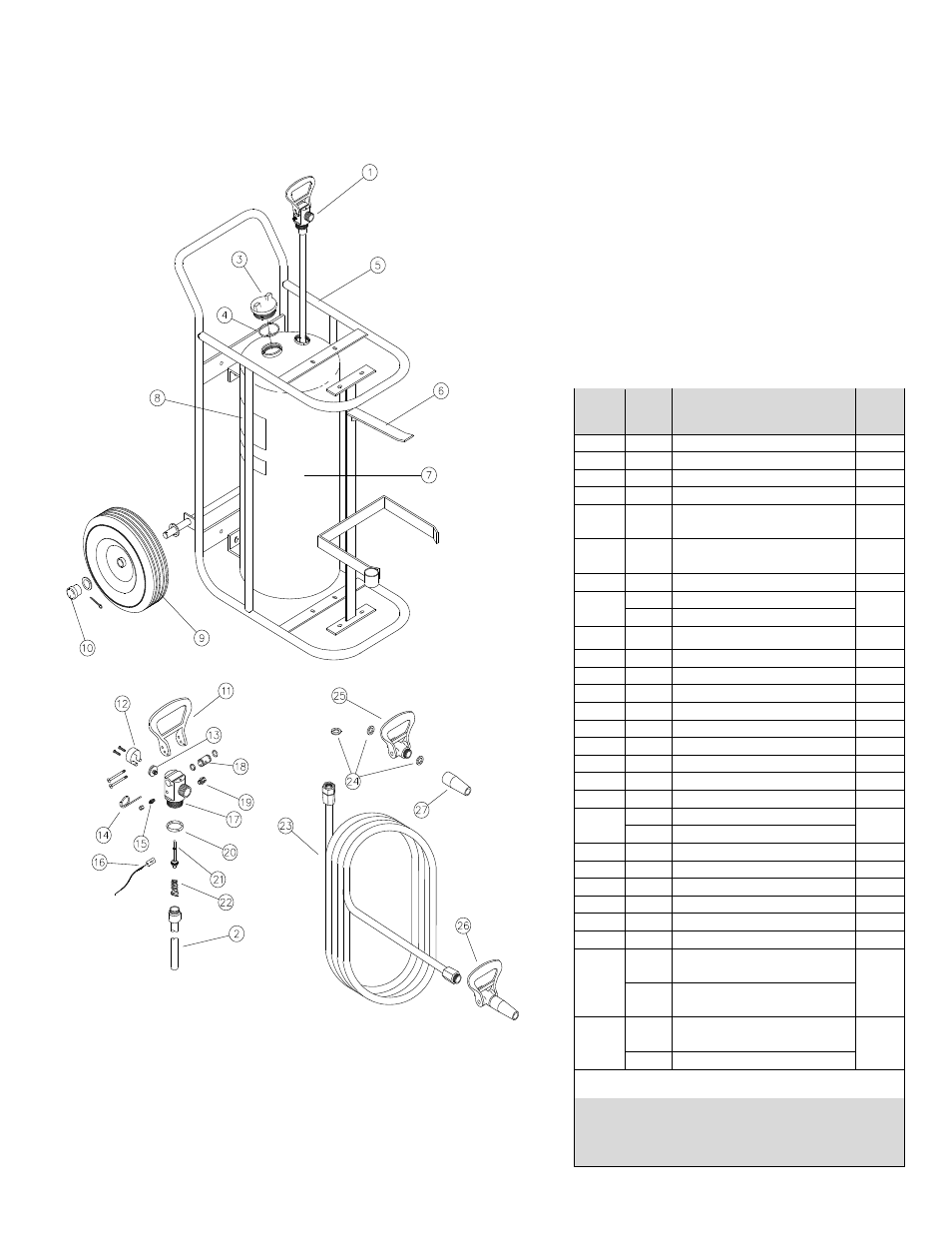

PARTS LIST
for
125/150 lb.
Wheeled/Stationary
Stored Pressure
Dry Chemical Extinguishers
476
488
477
489
478
490
