Amerex 05604 - Manual (Page 6)

5
Item
No.
Part
No.
Description Std.
Pkg.
1 11953 Valve Assembly – ALL ALUMINUM MODELS 1
1A 11954 Valve Assembly – ALL BRASS MODELS 1
2
06066 Nozzle w/O-ring – 344/344T, A344T (.067)
6
01727 Nozzle w/O-ring – 355T, A/B355T (.144)
2A 01532 Hose/Nozzle Gasket (O-ring) – Aluminum Valve 24
2B 06978 Hose Gasket (O-ring) 24
2C 06421 Hose & Horn Assembly – 354A, A354A, C354A (.098) 1
2D
05180 Hose & Horn Assembly – 369, B369 (.216)
1
05178 Hose & Horn Assembly – 371, B371 (.234)
05176 Hose & Horn Assembly – 361 (.152)
05174 Hose & Horn Assembly – 372 (.177)
3
01412 Ring Pin
24
16353 Ring Pin 1 lb, 2-1/2 lb
3A 00160 Ring Pin, Stainless Steel 24
3B 00532 Chain (Nylon) for Ring Pin 24
4 01387 Lockwire Seal (Yellow) 500
5A 01060 Rivet Only for Lever 24
5B 02625 Lever & Rivet 1
5C 07762 Lever & Rivet – Brass Valve 1
5D 01563 Rivet Only for Lever – Brass Valve 24
6
04839 Gauge – 100 PSI – 344/344T, A344T
6
03105
Gauge – 125 PSI – 352T, A/C352T,C352TS, 355T,
A/B355T
03106
Gauge – 195 PSI – 354A, A/C354A, 361, 369, B369,
371, B371, 372
7 11826 Handle & Rivet – Brass Valve 1
7A 01064 Rivet Only for Handle – Old & "A/B" Valve 24
7B
09001 Handle & Rivet – 344/344T 24
09002 Handle & Rivet – Old Valve 352T, A354A, 355T 24
7C 09020 Handle & Rivet – Brass Valve 1
7D 01564 Rivets for Handle (2 Required) – Brass Valve 24
8
05241 Collar O-Ring – Aluminum Valve 24
Collar O-Ring – Aluminum Valve – Bulk Bag 100
8A
05240 Collar O-Ring 24
Collar O-Ring – Bulk Bag 100
9 05235 Valve Stem O-Ring 24
9A 05243 Valve Stem O-Ring – Brass Valve 24
10
06092 Valve Stem Assembly – Aluminum Valve 6
Valve Stem Assembly – Aluminum Valve – Bulk Bag 96
10A
06093 Valve Stem Assembly – Brass Valve 6
Valve Stem Assembly – Brass Valve – Bulk Bag 96
11 01074 Spring – All Aluminum Valve 6
11A 00383 Spring – All Brass Valve 6
12
06069 Downtube/Retainer Assembly – 344/344T, A344T
1 01075
Downtube/Retainer Assembly – 352T, 354A,
A/C352T, C352TS, A/C354T
06212 Downtube/Retainer Assembly – 355T, A/B355T
12A
03754 Downtube/Retainer Assembly – 369/B369
1 02609 Downtube/Retainer Assembly – 371, B371
01667 Downtube/Retainer Assembly – 361, 372
13
17207
Strap & Clip Assembly (Black Plastic) 3/8" Hose
354, A/C354
1
14778
Strap & Clip Assembly (Black Plastic) ½" Hose
361, 369, B369, 371, B371, 372
14
15363 Hanger Loop with Screw – B371
6
16694 Hanger Loop with Screw – B369, 361, 372
14A 14220 Hanger Loop with Screw – Aluminum Valve 6
ALL BRACKETS – SEE BRACKET PAGE
ALL FILL & HYDROTEST ADAPTERS – SEE ADAPTER PAGE
ALL VALVE ASSEMBLIES INCLUDE VALVE BODY, GAUGE, LEVER & HANDLE

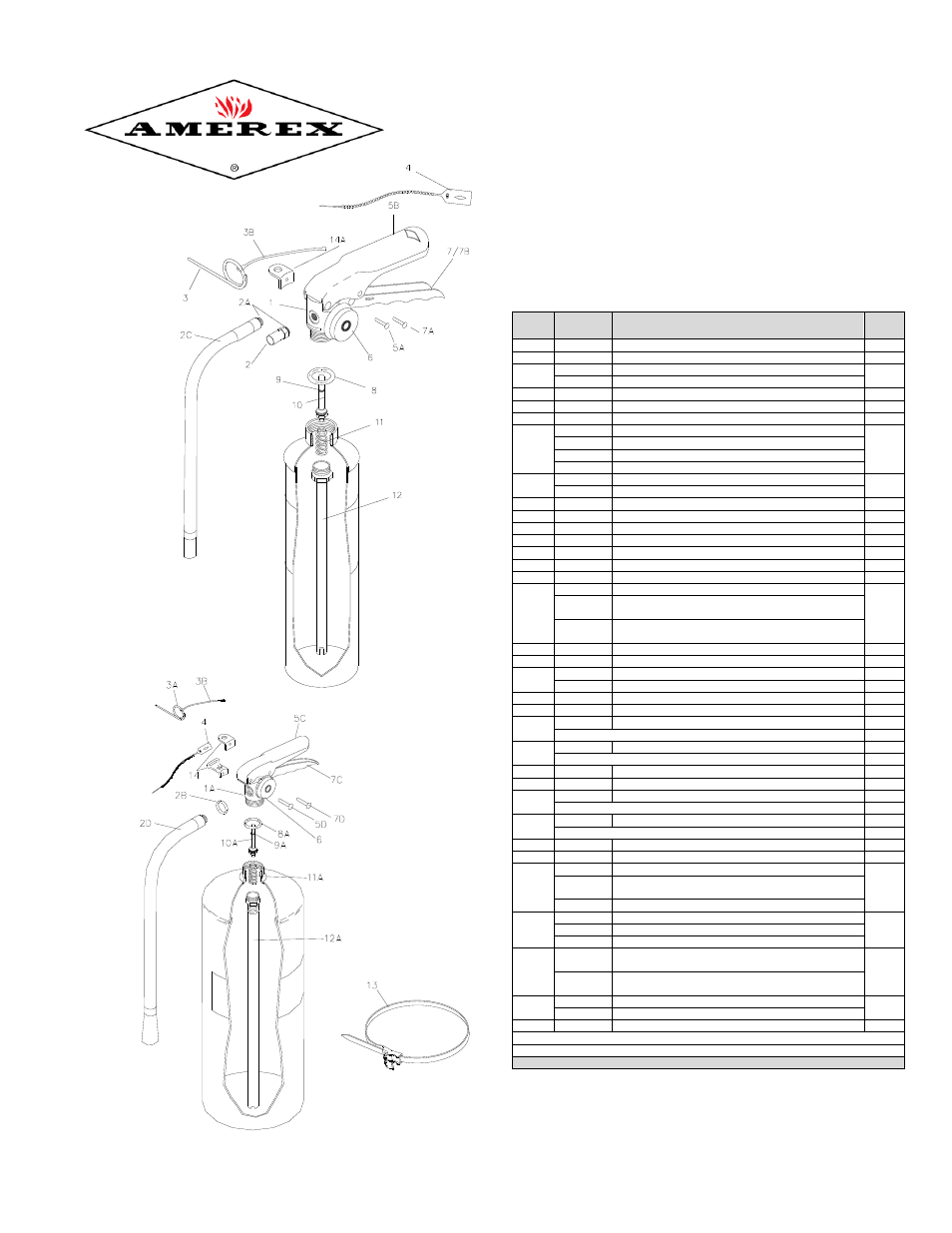

PARTS LIST
for
1-1/4 - 20 lb. Halon 1211
Extinguisher Models
344 354 A355
A344T A354 B355T
352 A354TS 369
A352 C354 B369
C352TS 355 371
372
