Amerequip 8600 Backhoe - Manual (Page 7)

8
Dipper-Stick
Bucket
Bucket
Stabilizer
Stabilizer
Cylinder
Mainframe
Boom
Safety Swing
Lock Position

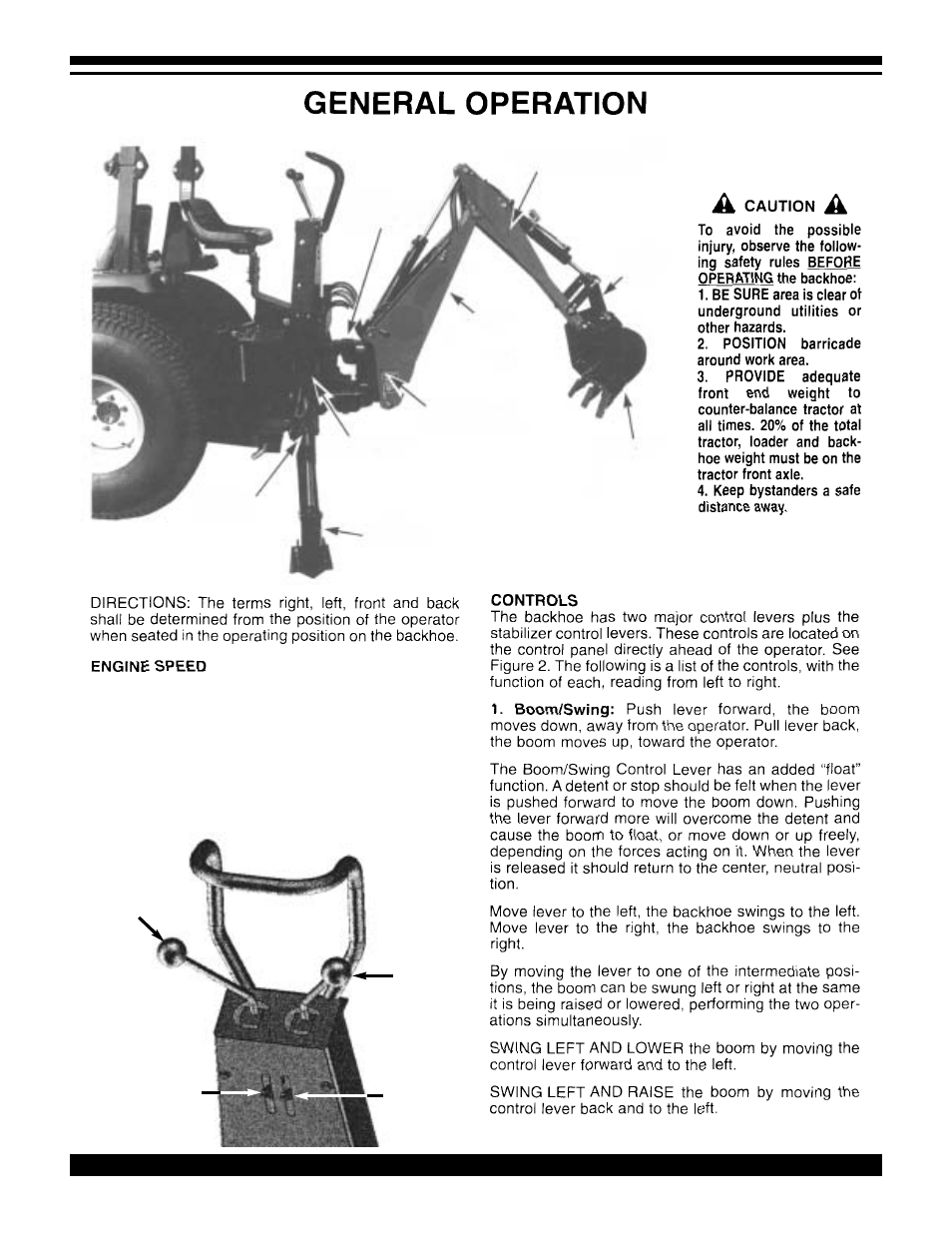

Figure 1
Boom Safety
Lock Position
Right Hand
Stabilizer
Left Hand
Stabilizer
Crowd
Bucket
Boom
Swing
The speed at which the backhoe operates is partially
dependent on engine RPM. Use a moderate engine
speed to start and increase it as your experience per-
mits. Refer to “DIMENSIONS AND SPECIFICATIONS”
on Page 44 for hydraulic flow volume requirements.
When powering from tractor systems with higher out-
put, reduce engine RPM to obtain acceptable backhoe
operating speed.
Figure 2 Control Handles
