3
OPERATION:
Display Mode Button: The LSPM display has several modes which are set via the Display
Mode button. Pushing the button once will set the display menu cycle into operation. Pushing
the button while the desired parameter is on the display will select that parameter. If the
selected parameter has a sub menu, the sub menu will cycle until a menu item is selected by
pushing the button while the sub menu item is on the display. Cycle rate is approximately 1 per
second. The Display Mode menu is detailed below:

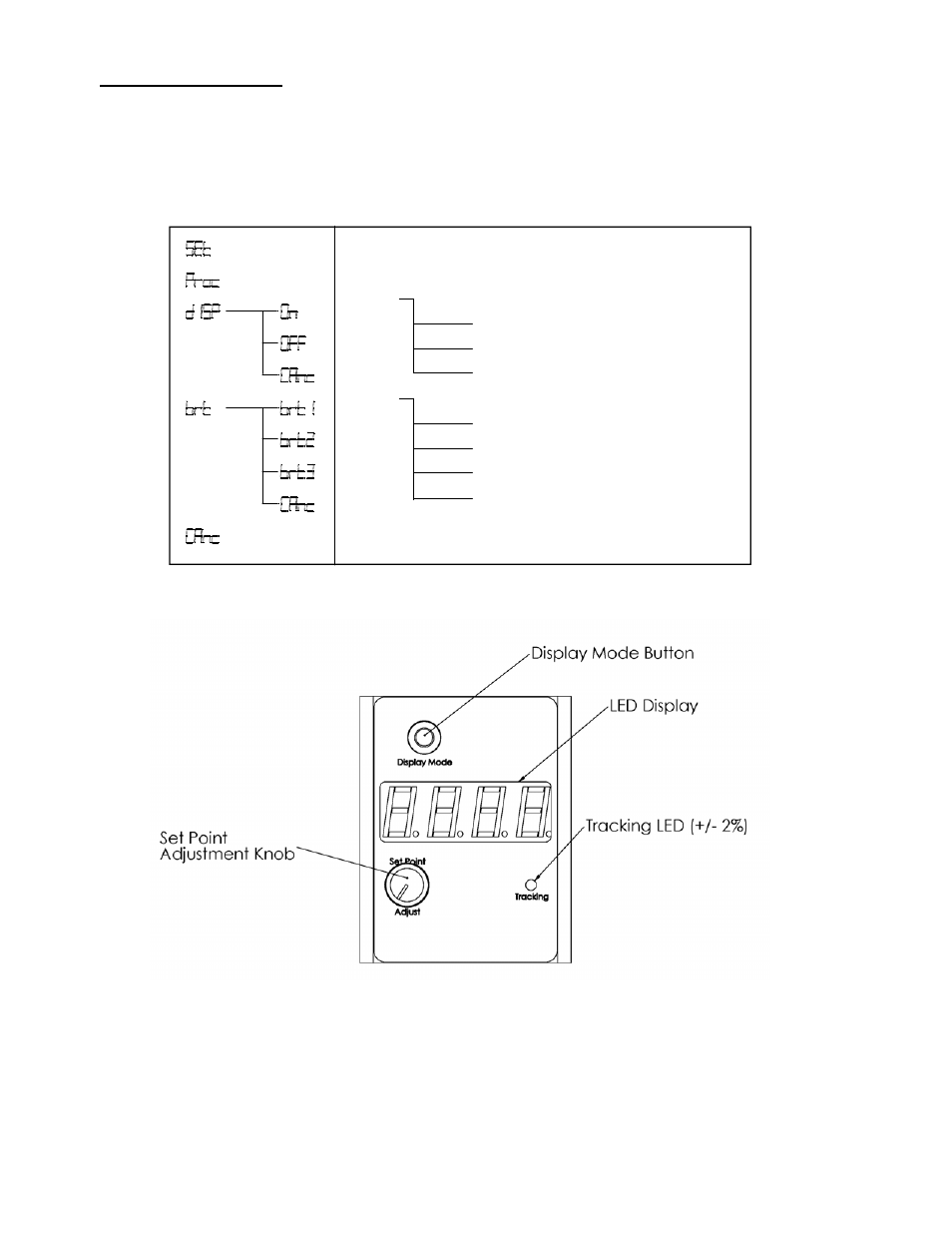

Display Mode Menu Diagram
Figure 2. LSPM Features
1. Set Display Set Point
2. Proc Display Actual Process Variable
3. Disp Cycle Display Sub Menu
1. On Flash label (Set or Proc) during display
2. Off Do not flash label during display
3. Canc Cancel and do not adjust any menu item
4. Brt Cycle Brightness Sub Menu
1. brt1 Low intensity brightness
2. brt2 Medium intensity brightness
3. brt3 High Intensity brightness
4. Canc Cancel and do not adjust any menu item
5. Canc Cancel and do not adjust any m enu item
