BluCube

™

Condensing Unit

28

Condensing Units

Technical Manual : 7206188 V1.6.0_07 2014

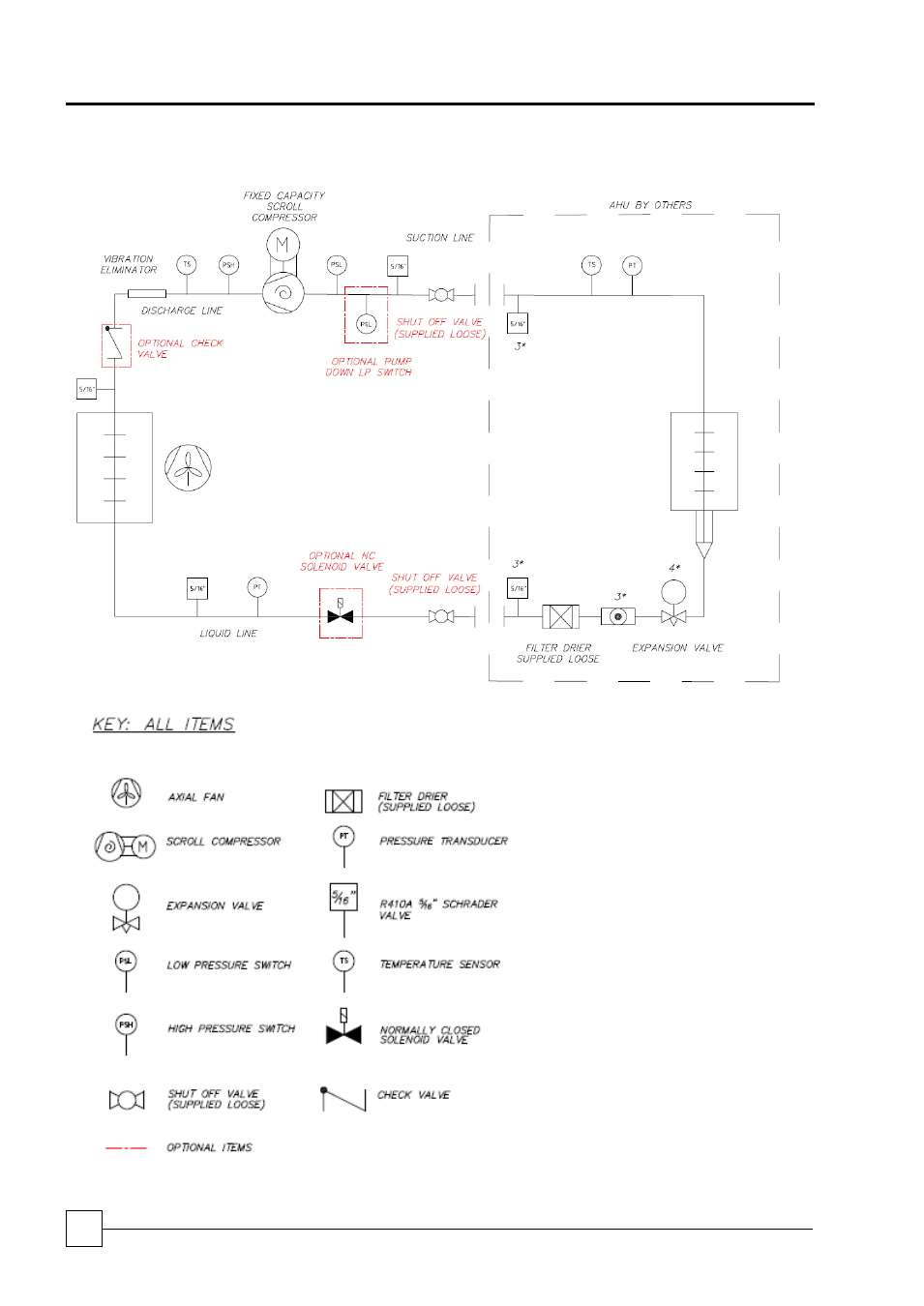

Pipework Schematics

Cooling Only

– Fixed Capacity
