V1.1 09/01/11 P a g e | 8 1044 Technical Manual
3.4. Measuring a voltage input
To measure a voltage input select the V function and select the appropriate range. If the
input is unknown then choose the highest range. Select the measure mode and ensure that
the polarity switch is set to normal. The reading should now be displayed. If the display
shows the digit 1 with a blank character then the unit has over-ranged and must be switched
to the next highest range.

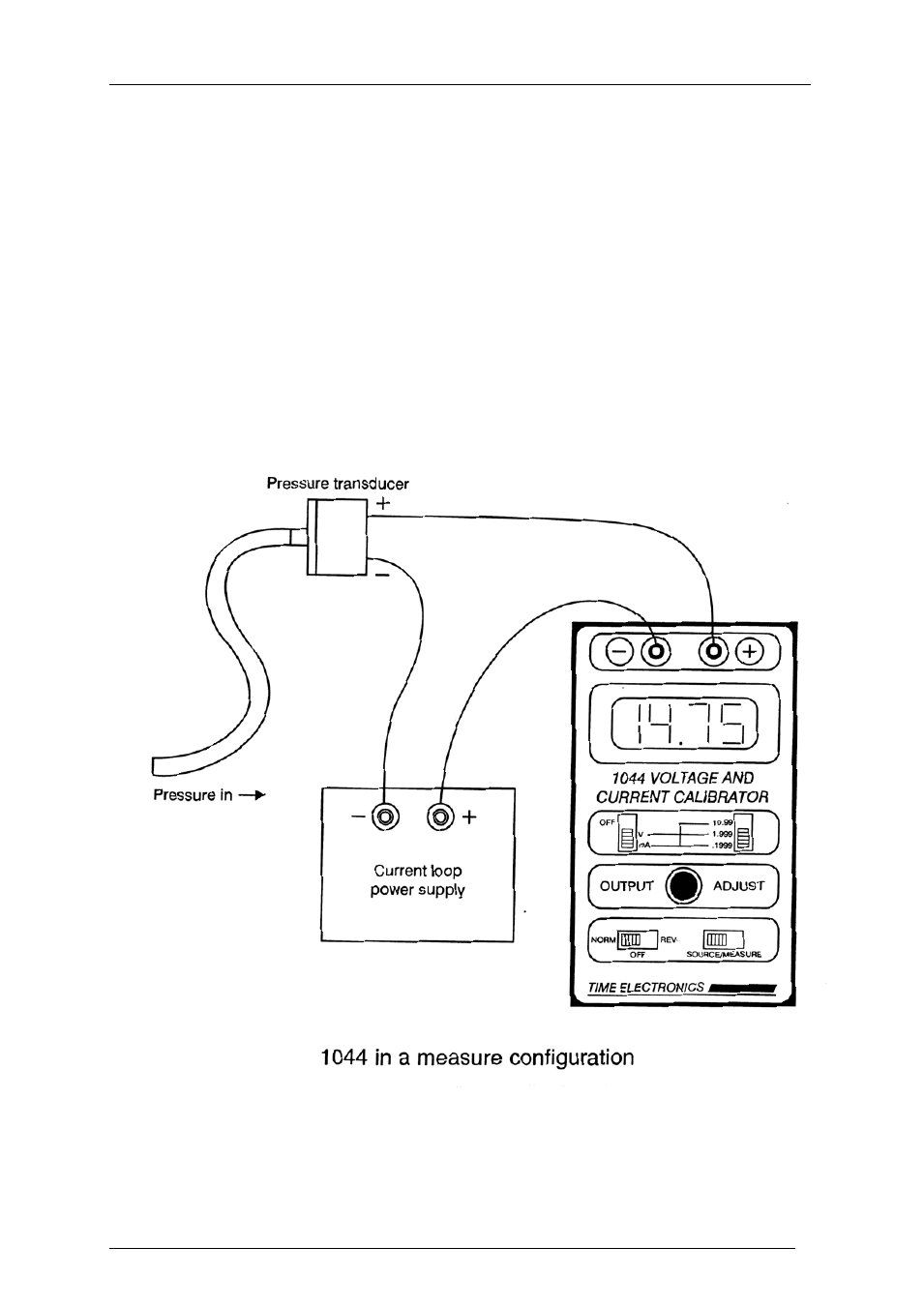

3.5. Measuring a current input
To measure a current input select the mA function and select the appropriate range. If the
input is unknown then choose the highest current range. Select the measure mode and
ensure that the polarity switch is set to normal. The reading should now be displayed. If the
display shows the digit 1 with a blank character then the unit has over-ranged and must be
switched to the next highest range.
