8 METER CONNECTED (DUAL CHANNEL)
8.1 Channel Configuration (For Dual Channel meters only)
See Figure 30: Measurement mode: Dual Channel. Two display screens for respective parameters can be
viewed when dual channel selection is made on the meter. Select from the CyberComm 5000 screen for
Single OR Dual channel display.
a) Click 1 to display Channel 1 only.
(Plot 1 shows Channel 1 parameter readings and Plot 2 shows temperature readings)
b) Click 2 to display Channel 2 only.
(Plot 1 shows Channel 2 parameter readings and Plot 2 shows temperature readings)
c) Click Dual to display both channels (Dual button appears only in Mode Selection screen, page 14).
(Plot 1 shows Channel 1 parameter and temperature readings and Plot 2 shows Channel 2 parameter
readings and temperature readings)
8.2 Functions from Menu Bar
The current readings and data plots will be displayed whilst measurement is conducted.
Select the functions to be executed from the menu bar same for the single channel mode of this program.

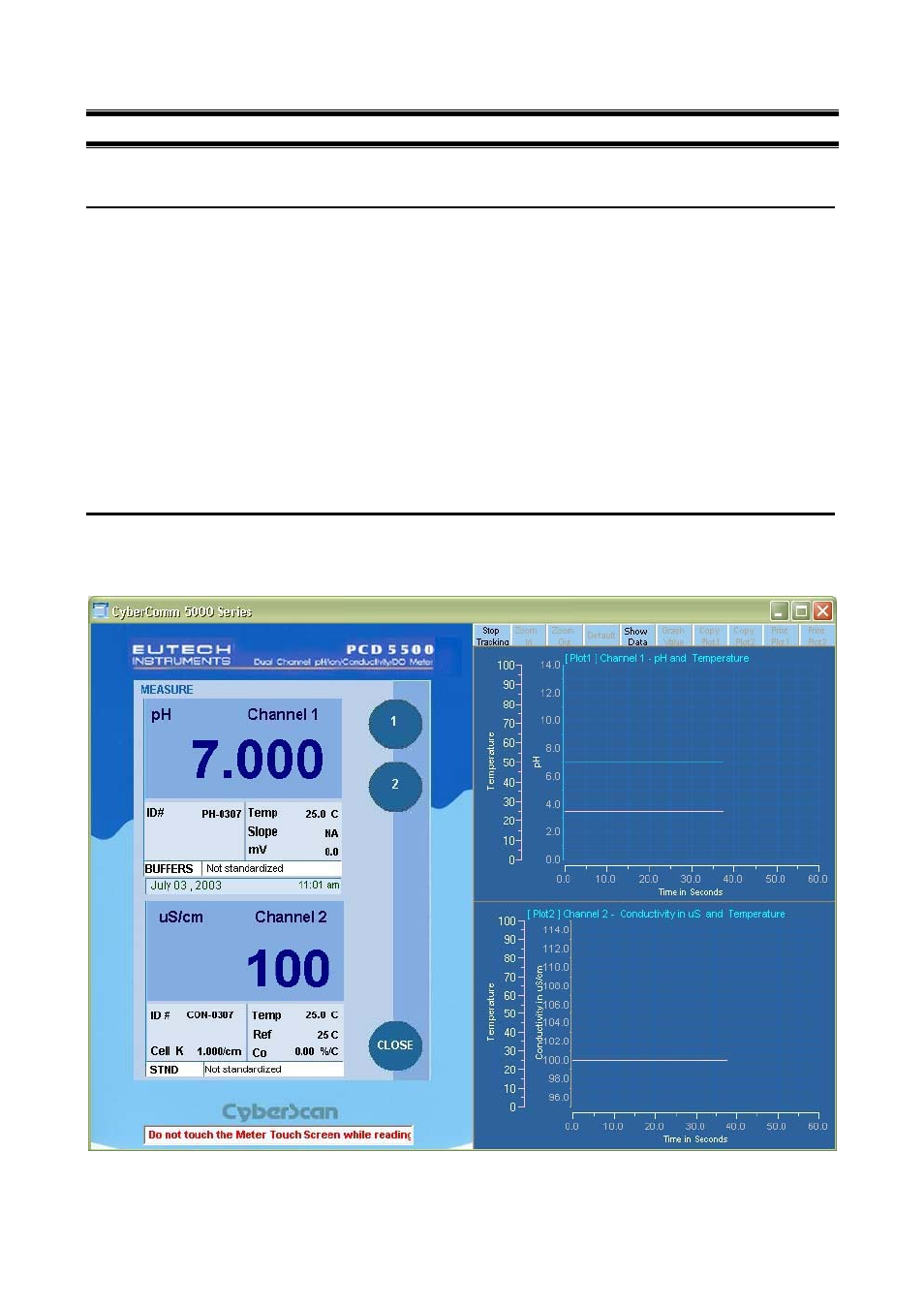

Figure 30: Measurement mode: Dual Channel
