CONNECTING YOUR RS232C ADAPTER

If you are connecting to a Laptop or computer, please use the 9-pin plug.

1)

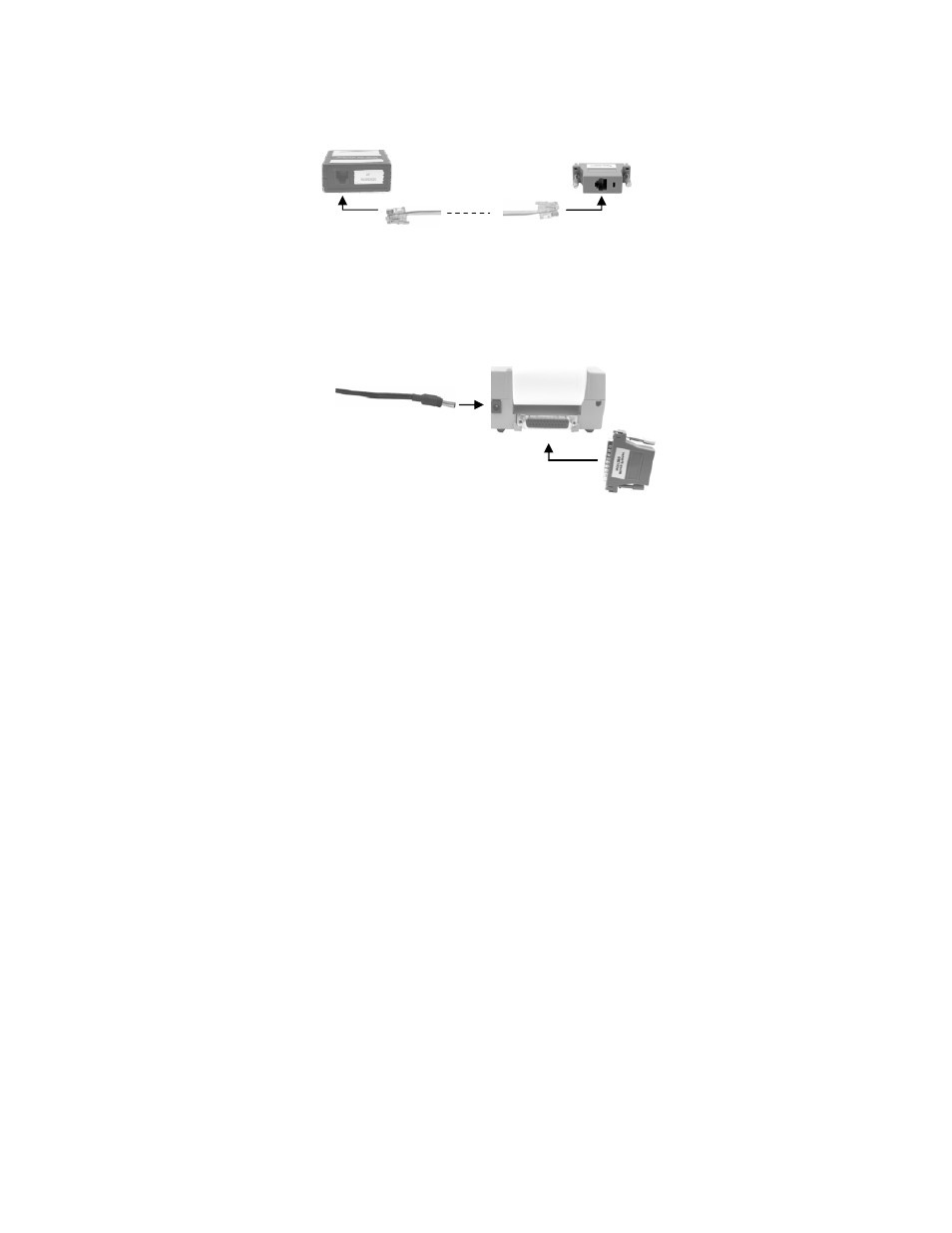

Connect the phone jack cable to your RS232C adapter and the
other end to the 9-pin connector plug or 25-pin connector plug.









2)

If using a PC, ensure that your PC is plugged into a power source
or has sufficient battery power.

3)

If using the microprinter, plug in the power supply adapter to a
power source and connect the cable to the microprinter.










*Important: Please ensure that the RS232 adaptor shows a
red light.


NOTE: There is no need for a separate power supply for the RS232Cadapter
as it will be automatically powered by the PC or the microprinter’s main
power supply once you connect them.
