Ar ch ive d – Seametrics WMX101 User Manual
Page 7
For optimum performance,
ground both ends of the
meter to adjacent metal pipe
Reliable
Earth
Ground
.5 in. Maximum
Ferrite Bead,
Digi-Key p/n
240-2076-ND
Operating Cable,
2 pair shielded
Green ground wire,
supplied
Tie shield drain wires
to ground wire
Reliable
Earth Ground
(Red)
(Red)
(Black)
(Black)
Pair 2
Pair 1
Pulse output
Signal (+)
Signal (-)
(+)
(-)
Power Supply
+12 to +24Vdc
WMX101
Connector Block
Connection when replacing cable
IMPORTANT: Note Pair 1 & Pair 2 printed on wires
(Black)
(Black)
(Red)
(Red)
Pair 1
Pair 2
1
2
3
Page 5

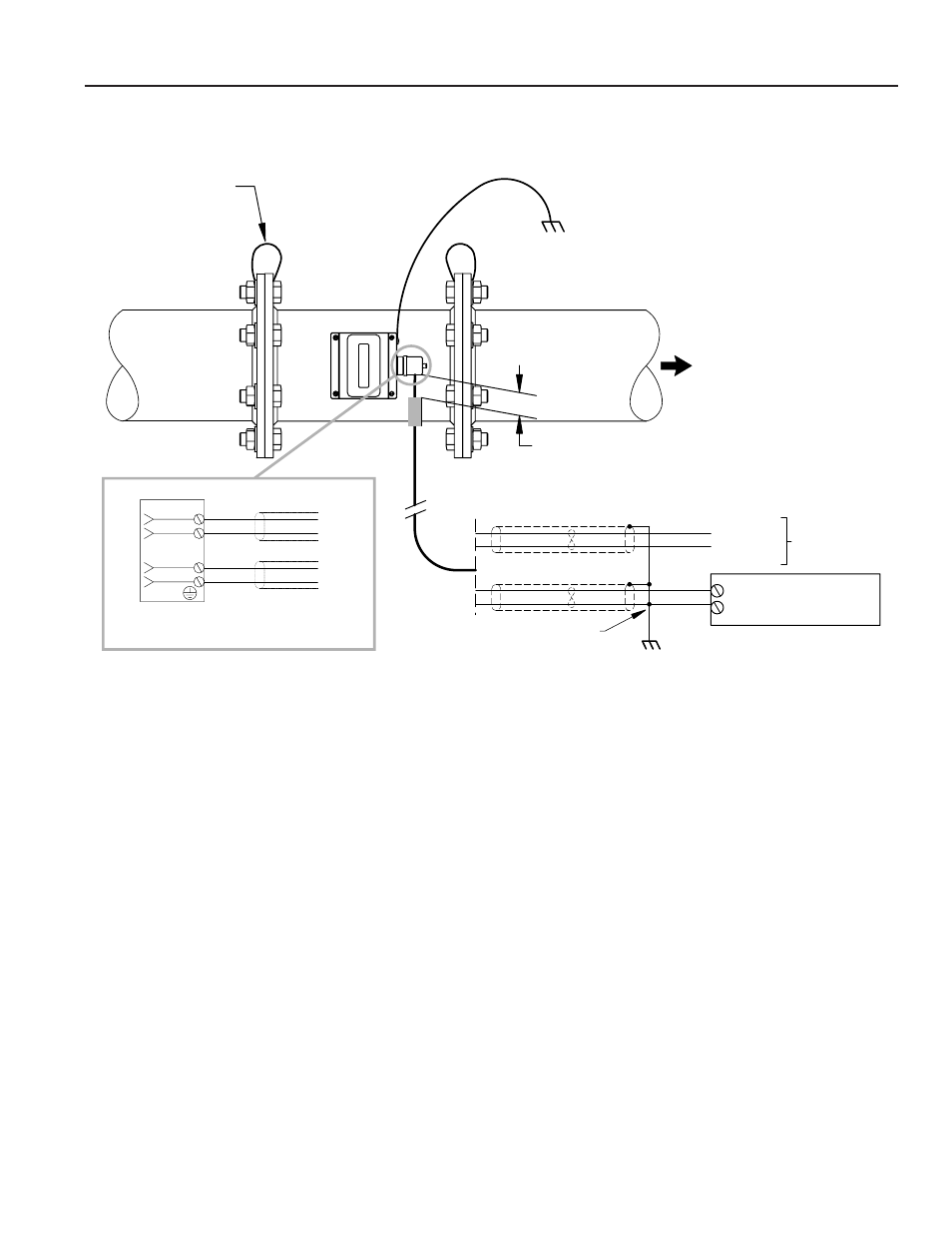

ELECTRICAL CONNECTIONS
STANDARD CONNECTION
(NOTE: Grounding wire
must touch bare metal
on both meter and pipe)
AR
CH
IVE
D
(Includes Dates Before 2/15/07)
