Acer 4020 User Manual

Page 103

LCD MODULE 15.4 IN.
WXGA HITACHI
TX39D85VC1FAA-
LIGHT GREEN SILVER

ZL1A 15.4" LCD WXGA
(TM HITACHI) ASSY
S.P. NEW COLOR

6M.T63V7.015

LCD 15.4 IN. WXGA
HITACHI
TX39D85VC1FAA

ZL2 15.4" LCD
(HITACHI) PANEL
ASSY S.P.

LK.15404.003

LCD INVERTER
BOARD

ZL1A LCD INVERTER
ASSY S.P.

19.T50V7.001

LCD CABLE - 15.4 IN.
WXGA

ZL1A 15.4" LCD WXGA
CABEL ASSY S.P.

50.T50V7.006

LCD BRACKET W/
HINGE 15.4 IN. - L

ZL1A 15.4" LCD HINGE
(L) ASSY S.P.

33.T50V7.004

LCD BRACKET W/
HINGE 15.4 IN. - R

ZL1A 15.4" LCD HINGE
(R) ASSY S.P.

33.T50V7.005

LCD BEZEL W/
RUBBER PAD 15.4 IN.

ZL1A 15.4" LCD BEZEL
ASSY S.P.

60.T50V7.006

LCD PANEL W/LOGO
ANTENNA 15.4 IN.-
LIGHT GREEN SILVER

ZL1A 15.4" LCD (TM)
COVER ASSY S.P.
NEW COLOR

60.T50V7.103

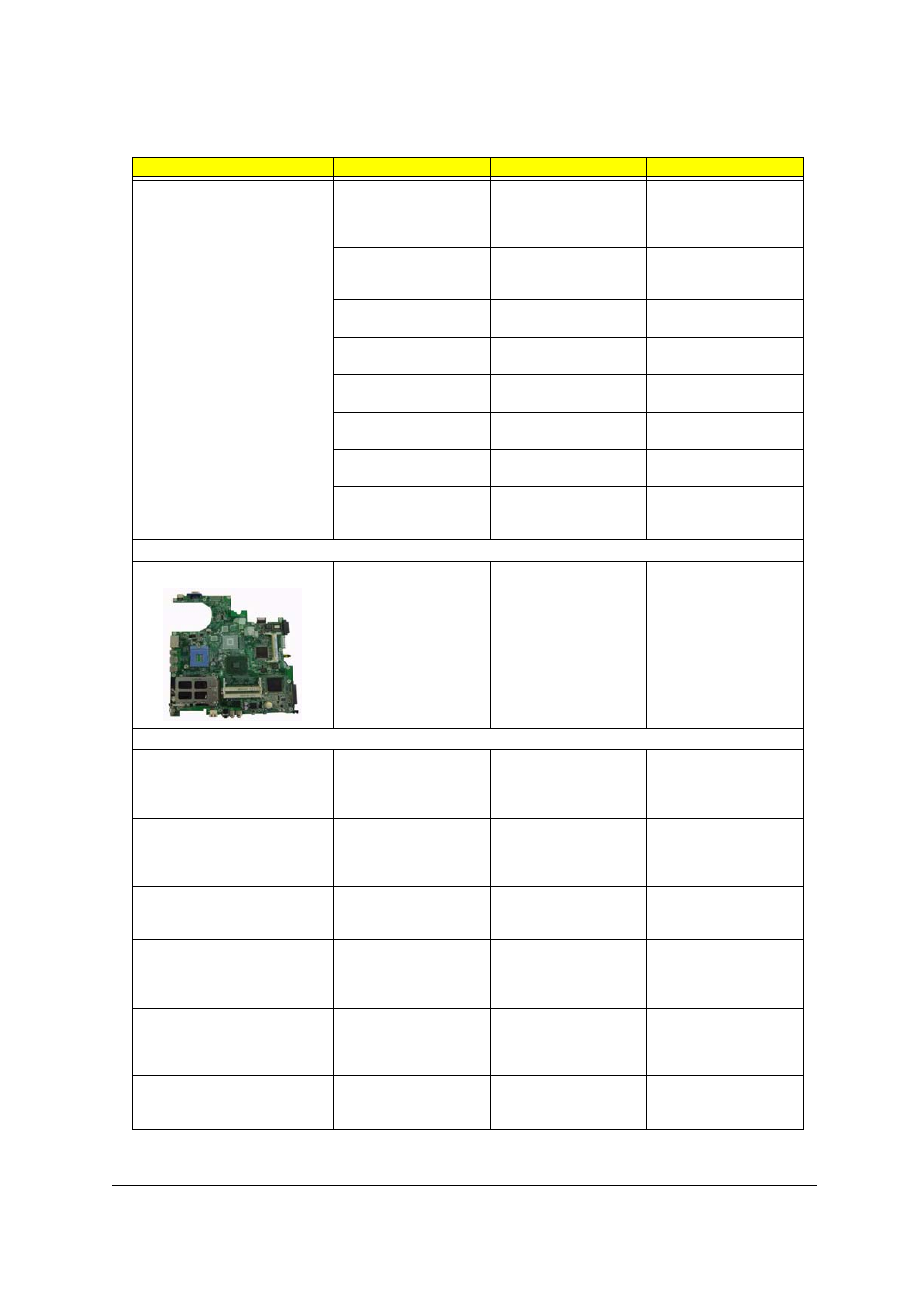

MAINBOARD

MAINBOARD 915GM
UMA W/PCMCIA SLOT
W/O CPU MEMORY

ZL3A M/B (UMA)ASSY
S/P

LB.TAH06.001

MEMORY

MEMORY DDR333
256MB INFINEON
HYS64D32020HDL-6-C
(.11u)

KN.25602.012

256M Micron SO-DIMM
DDR333 256MB
MT4VDDT3264HG-
335C2

KN.25604.016

MEMORY DDR333
256MB SAMSUNG
M470L3224FT0-CB3

KN.2560B.008

MEMORY DDR333
256MB MICRON
MT8VDDT3264HDG-
335C3

KN.25604.009

512MB Micron SO-
DIMM DDR333 512MB
MT8VDDT6464HDG-
335C1 (.11u),

KN.51204.013

MEMORY DDR333
512MB SAMSUNG
M470L6524BT0-CB3

KN.5120B.006

Illustration

Part Name

Description

Acer P/N
